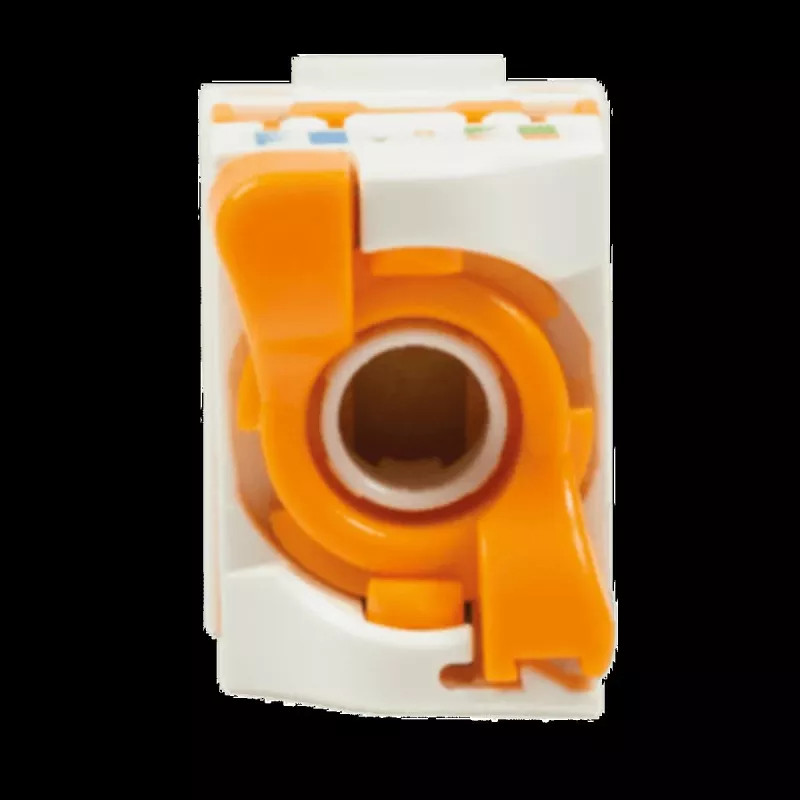

DSIT CAT6a UTP Keystone netwerkconnector - gereedschapsloos Twist-ontwerp (DS-KC-UTP6A-TL-T)

Terminating CAT6a cables can be a time-consuming and error-prone task, especially when dealing with high-density patch panels or wall plates. The DSIT DS-KC-UTP6A-TL-T solves this problem with a toolless twist-lock mechanism that lets you install a reliable, 10-Gigabit-ready connection in seconds—no punch-down tool required. Simply insert the conductors, twist the cap, and snap the keystone into any standard module.

Who is it for

This keystone jack is ideal for network installers, IT technicians, and DIY enthusiasts who need fast, repeatable terminations for CAT6a UTP cabling in patch panels, wall plates, or surface mount boxes. It is equally suited for new installations and retrofits where speed and consistency matter.

Main features

• Toolless twist-lock termination – no punch-down tool needed, reduces installation time and fatigue.
• Supports 10GBASE-T Ethernet with 500 MHz bandwidth for high-speed data transfer.
• Unshielded (UTP) design with dual-coded TIA/EIA-568-A/B wiring for easy conductor placement.
• Accepts 22-26 AWG solid or stranded conductors, providing flexibility for various cable types.
• Gold-plated contacts (50µm) ensure corrosion resistance and long-term signal integrity.
• High-impact PC/ABS housing with UL 94V-0 flammability rating for durability and safety.
• Snap-in installation fits all standard keystone openings, including patch panels and wall plates.

Specifications

• Cable Category: CAT6a
• Shielding Type: UTP (Unshielded Twisted Pair)
• Connector Type: RJ45
• Termination Method: Toolless Twist-Lock
• Data Transfer Rate: 10 Gigabit Ethernet (10GBASE-T)
• Bandwidth: 500 MHz
• Compatibility: Standard Keystone Module
• Wiring Standard: TIA/EIA-568-A/B (Dual-coded)
• Wire Gauge Support: 22-26 AWG Solid/Stranded
• Contact Plating: Gold Plated (50µm)
• Housing Material: High-Impact PC/ABS
• Installation Type: Snap-in
• Application: Patch Panels, Wall Plates, Surface Mount Boxes
• Color: White
• Flammability Rating: UL 94V-0
• Operating Temperature: -10°C to 60°C
• Certifications: RoHS Compliant

Tips

For best performance, ensure the cable jacket is stripped to the recommended length and that conductors are fully inserted before twisting the cap. Use a cable tester to verify each termination, and avoid excessive bending near the connector to maintain signal quality.
