DS-IT CAT6 FTP 48-poorts 19 inch 2U afgeschermd patchpanel, zwart

Unlike standard unshielded panels, the DSIT DS-Patch6-48FTP delivers true FTP shielding across all 48 ports, ensuring superior protection against electromagnetic interference in dense rack environments. This 19-inch, 2U patch panel is engineered for high-density CAT6 installations where signal integrity and reliability are non-negotiable. Its robust steel housing and integrated grounding terminal make it an ideal choice for data centers, server rooms, and enterprise networks.

Highlights

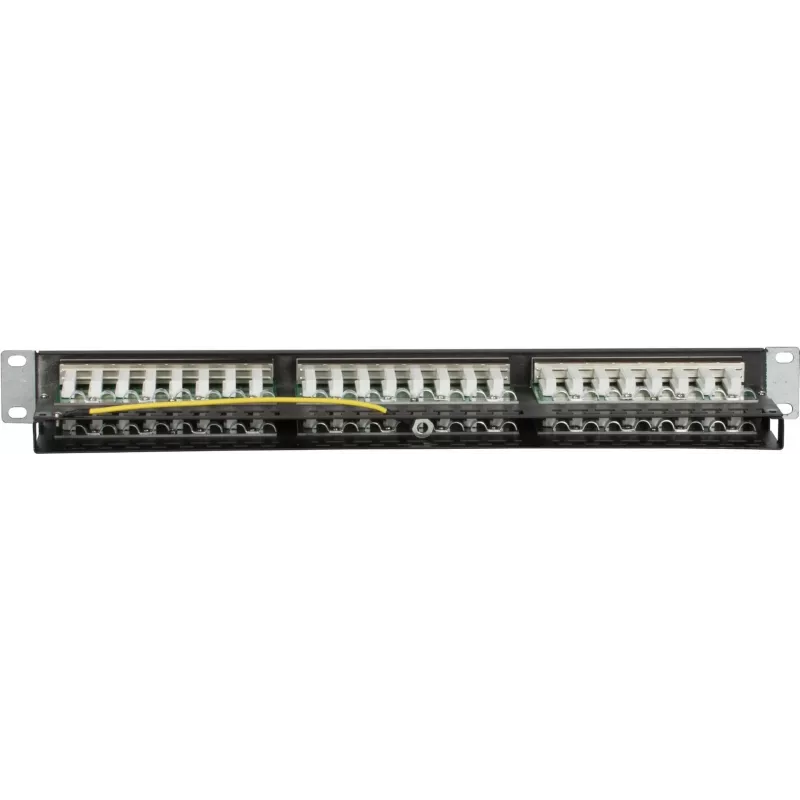

• 48 RJ45 ports with LSA+ (Krone) IDC rear termination for fast, tool-free punch-down

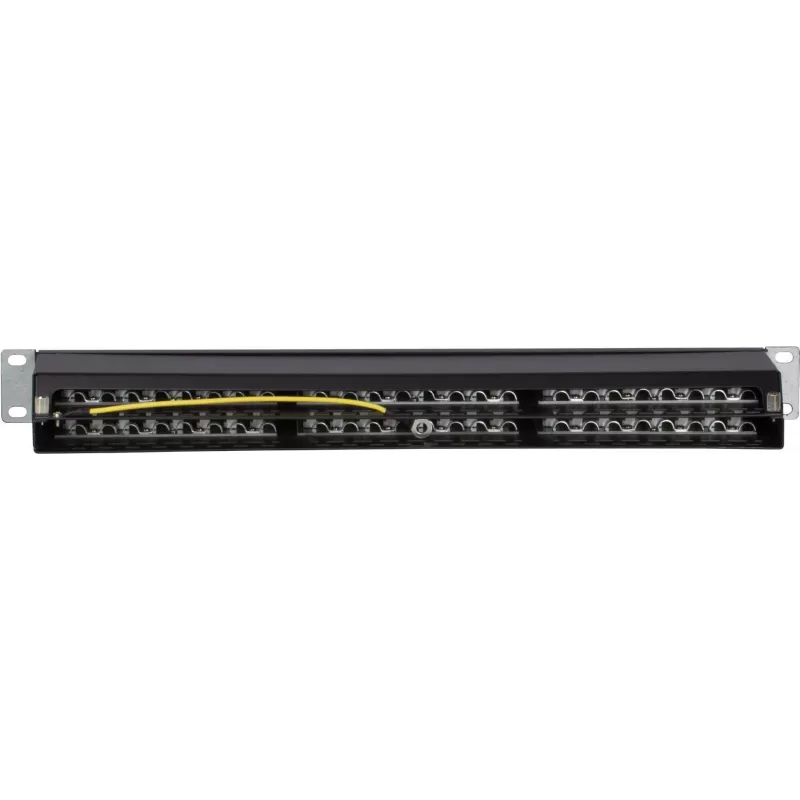

• FTP shielding with integrated grounding wire for optimal EMI/RFI rejection
• Supports TIA/EIA 568A/B wiring standards with clear color-coded labeling
• Durable steel construction with black finish, rated for over 750 insertion cycles
• Compliant with ISO/IEC 11801, EN 50173, and RoHS directives

In daily use

Installation is straightforward: mount the panel in a standard 19-inch rack, terminate cables on the rear LSA+ blocks, and connect patch cords on the front. The panel accommodates both solid and stranded conductors from AWG 22 to 26, ensuring compatibility with a wide range of cabling. The integrated grounding point allows quick connection to the rack's earth, maintaining shield continuity. With a transmission performance up to 250 MHz, it fully supports Gigabit Ethernet and beyond.

Full specifications

• Product type: CAT6 FTP patch panel, 48 ports, 2U
• Front connectors: RJ45 female, shielded
• Rear termination: LSA+ (Krone) IDC, color-coded for 568A/B
• Shielding: FTP (foiled twisted pair), with grounding wire
• Housing: Steel, black
• Transmission performance: Up to 250 MHz
• Cable compatibility: AWG 22-26, solid or stranded
• Insertion cycles: >750 (RJ45), >200 (LSA+)
• Operating temperature: -10°C to +60°C
• Standards: ISO/IEC 11801, EN 50173, RoHS

Final note

The DS-Patch6-48FTP combines high port density with robust shielding, making it a dependable backbone for modern network infrastructures.
