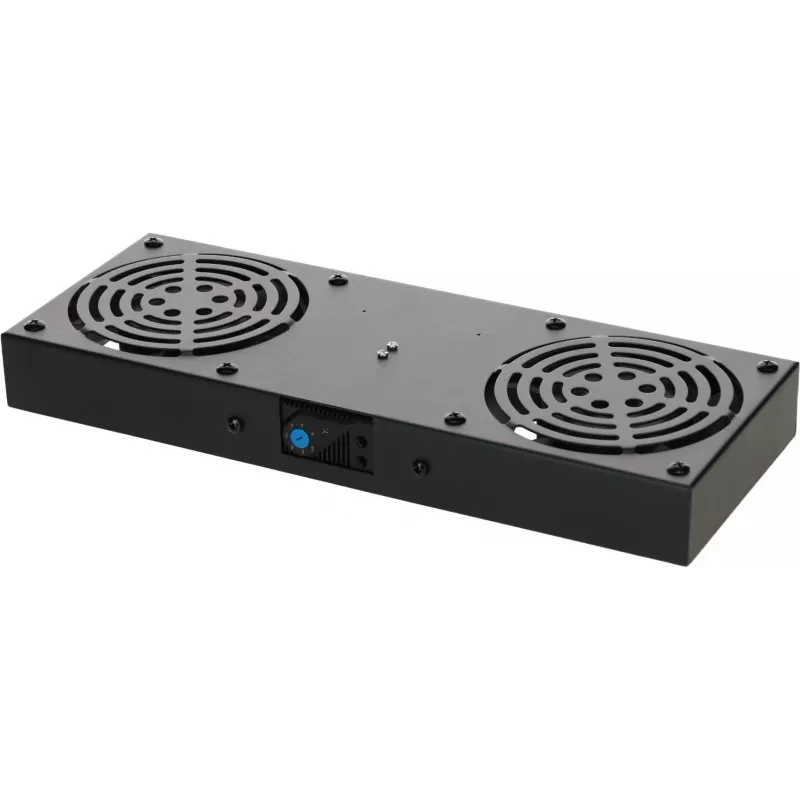

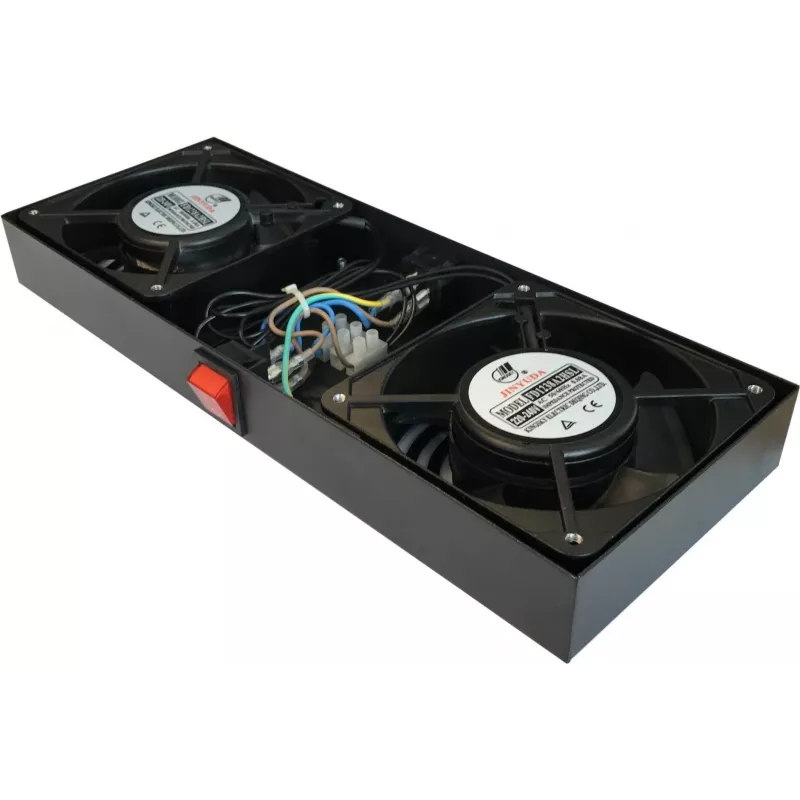

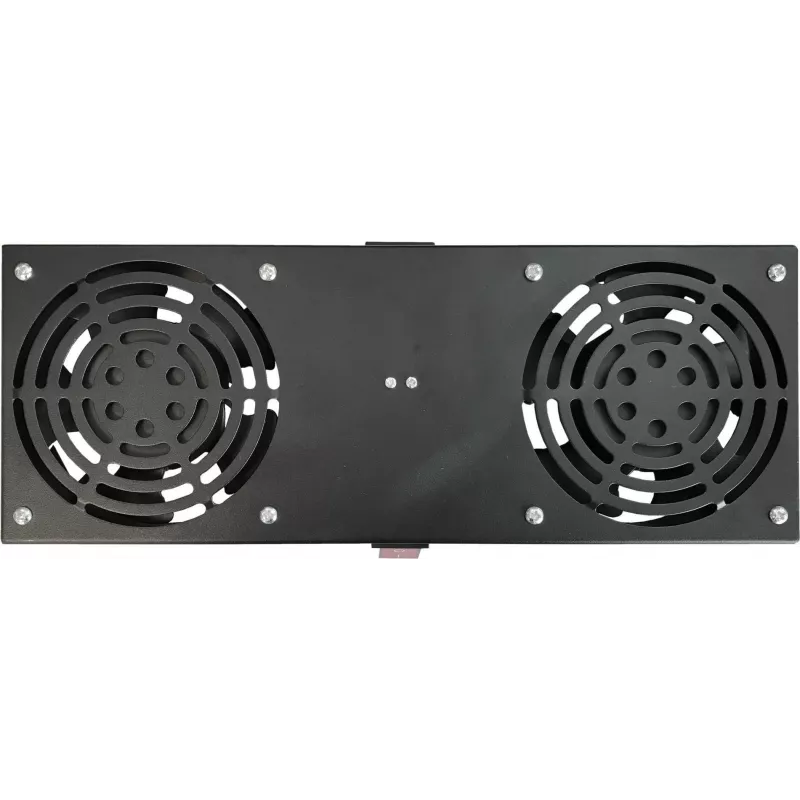

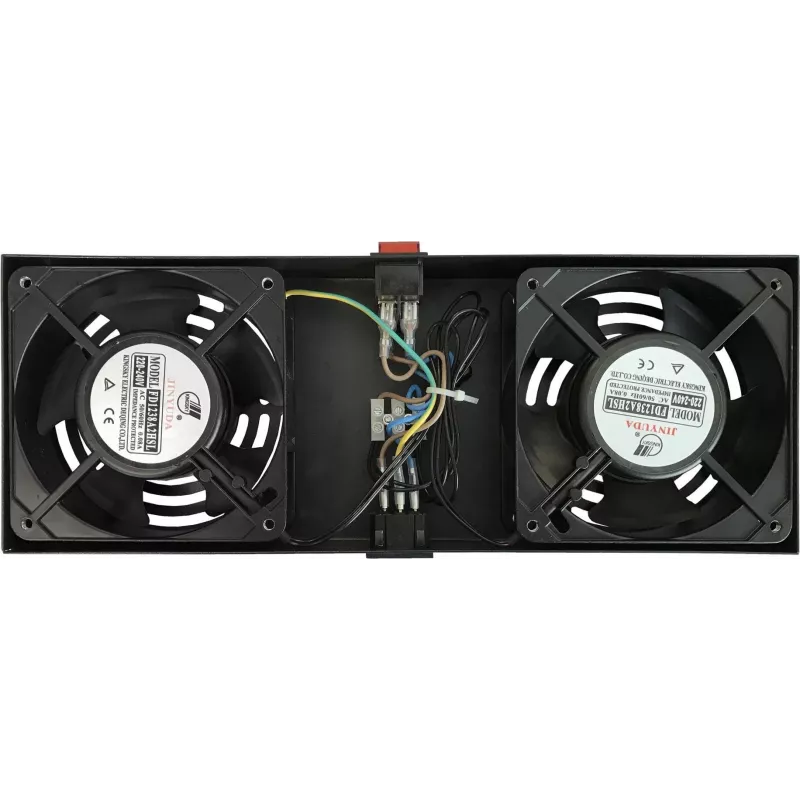

DS-IT wandmontage-ventilatoreenheid met thermostaat voor netwerkkasten (DS-FT-Wall)

Keep your wall-mounted IT cabinet cool with the DSIT DS-IT Fan Unit with Thermostat. This axial fan delivers approximately 100 m³/h airflow and automatically activates when temperatures exceed your set threshold, protecting network switches, patch panels, and other active equipment from overheating.

Advantages

Automatic temperature control eliminates manual fan operation and reduces energy consumption. The adjustable thermostat (0°C to 60°C) lets you set the exact switching point for your environment. The steel housing and IP20 protection ensure durability in typical indoor installations. The included Schuko power cable and mounting hardware simplify installation.

Suitable for

• Wall-mounted network cabinets and enclosures
• IT installations with limited natural airflow
• Small server rooms and branch offices
• Protecting network switches, routers, and patch panels from overheating

Key specifications

• Fan type: Axial fan, single unit
• Airflow capacity: approx. 100 m³/h
• Noise level: approx. 35 dB(A)
• Power supply: 230V AC, 50/60 Hz, power consumption approx. 15 W
• Thermostat: Integrated, adjustable from 0°C to 60°C
• Mounting: Designed for wall cabinet installation
• Housing material: Steel, colour black/grey
• Connection: Power cable with Schuko plug (EU standard)
• Protection class: IP20
• Included components: Fan unit, thermostat, mounting hardware, power cable

Recommendations

For optimal performance, position the fan unit at the top of the cabinet to exhaust hot air. Set the thermostat slightly above the expected ambient temperature to avoid unnecessary cycling.
