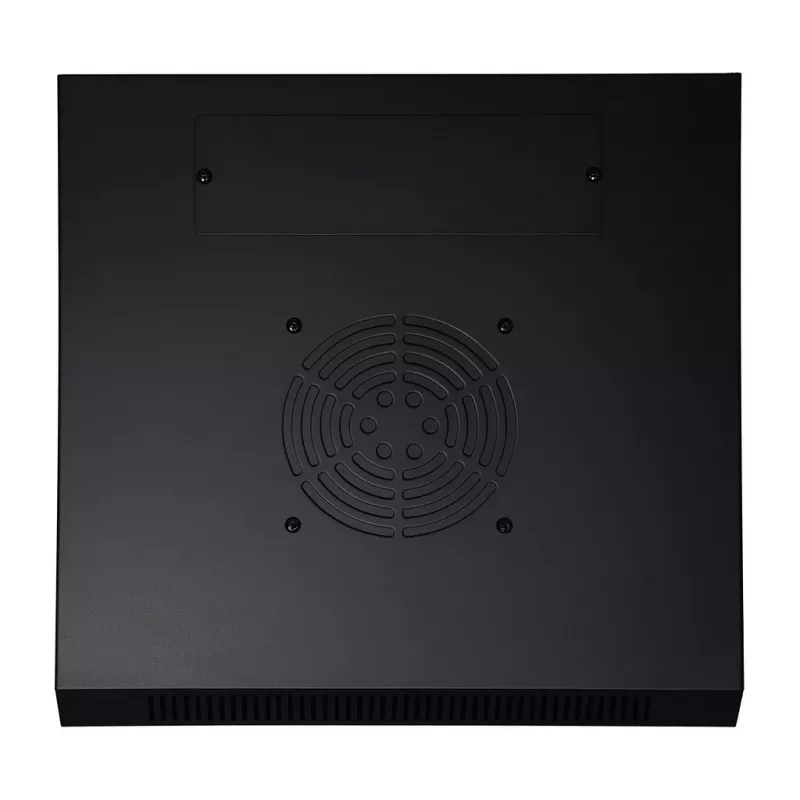

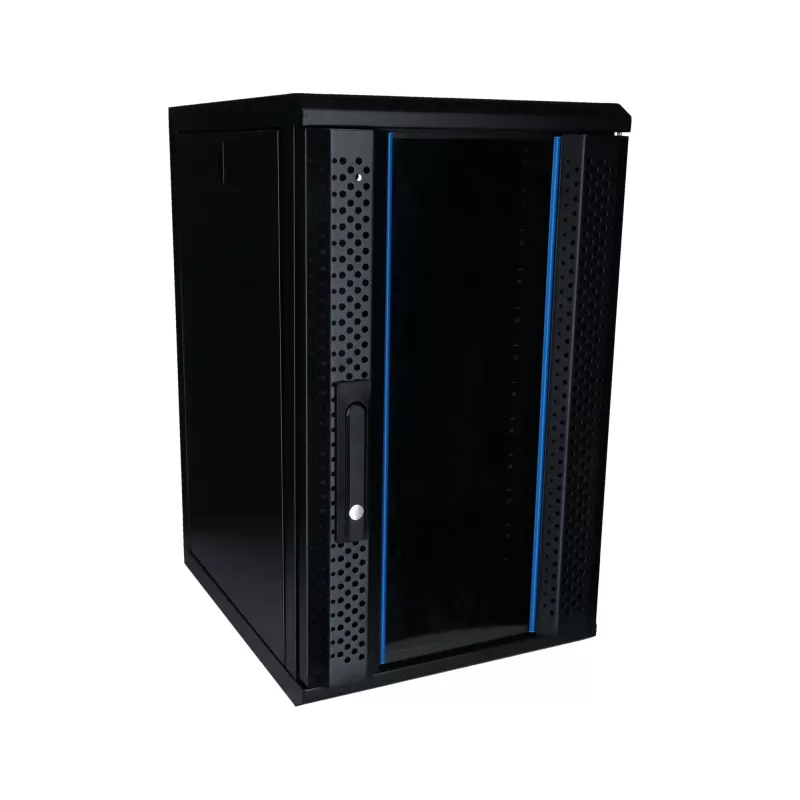

DSIT DS10-3412 12U 10 inch wandmontage serverkast met glazen deur, 370x450x618 mm, zwart

This 12U wall-mount server cabinet provides secure, organized housing for 10-inch networking and server equipment, featuring a lockable tempered glass front door for visibility and protection. Its compact 370x450x618 mm footprint suits small offices, retail, and edge deployments.

Advantages

The cabinet is crafted from SPCC cold rolled steel with a durable black powder-coated finish (RAL 9005). The front door combines a tempered glass panel with a steel frame and key lock, allowing visual monitoring while preventing unauthorized access. Passive ventilation is built in, with provision for an optional fan unit to enhance airflow. Adjustable 10-inch mounting rails accommodate various equipment depths, and top/bottom knockouts facilitate cable entry. With a static load capacity of 60 kg, it supports a range of devices.

Suitable for

• Small and medium business network installations
• Edge computing and IoT gateways
• Retail and branch office equipment
• Security and surveillance systems

Key specifications

• Rack capacity: 12U
• Rack width: 10 inches
• External dimensions (WxDxH): 370 x 450 x 618 mm
• Door: Single front tempered glass door with key lock
• Material: SPCC cold rolled steel, powder coated
• Color: Black (RAL 9005)
• IP protection class: IP20
• Max static load capacity: 60 kg
• Mounting type: Wall mount
• Side panels: Fixed
• Cable entry: Top and bottom with knockouts
• Ventilation: Passive, provision for 1x fan unit
• Compliance: RoHS, CE

Recommendations

Ideal for IT administrators seeking a compact, secure rack solution for 10-inch equipment in space-constrained environments.
