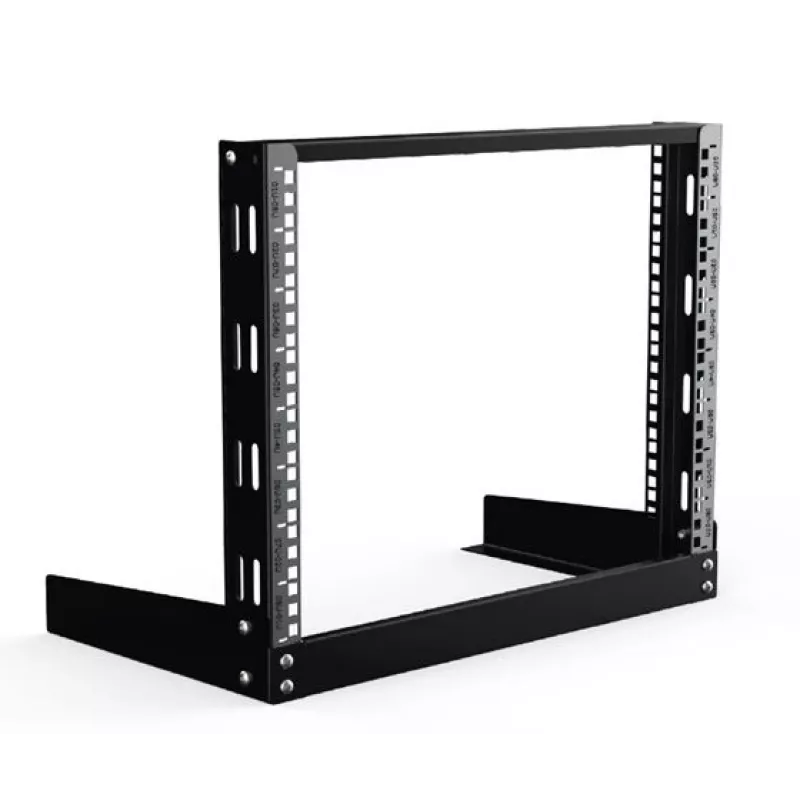

Rackkast Lanview LVR04U63BL 19 inch 4U 600 mm diep

In a compact network closet or branch office, the Lanview LVR04U63BL provides a sturdy, wall-mounted home for up to 4U of 19-inch equipment. Its open-frame design keeps switches, routers, and small servers accessible and well-ventilated, while the 600 mm rated depth accommodates deeper devices. Built from cold-rolled steel with a black RAL 9005 finish, this cabinet is a practical choice for organized, space-saving installations.

Key specifications

• Rack capacity: 4U, 19-inch standard width
• External dimensions: 516 × 300 × 244.4 mm (W × D × H)
• Rated depth: 600 mm
• Material: SPCC cold-rolled steel, black RAL 9005
• Mounting type: wall mount, open frame
• Maximum load capacity: 60 kg
• Protection rating: IP20
• Included accessories: cage nuts, screws, 2 keys
• Compliance: RoHS, CE

Why choose it

The open-frame construction promotes natural airflow, reducing the risk of overheating for network hardware. Its compact footprint fits tight spaces, while the steel build supports up to 60 kg of equipment. The pre-assembled design saves installation time, and the included mounting hardware ensures a secure fit.

Ideal use cases

• Small network closets and branch office LAN installations
• Mounting switches, routers, and 1U–4U network appliances
• Housing surveillance (CCTV) and audio-visual equipment
• Environments requiring wall-mounted, space-saving rack solutions

Good to know

This cabinet is delivered pre-assembled and includes cage nuts, screws, and two keys. It features passive ventilation with fan cut-outs on top and bottom, plus cable entry points with brush strips for clean routing. The open-frame design allows easy access for maintenance and cable management.
