InLine 19 inch opklapbaar rack, 2HE, 24–40 cm diep, met afdekking, grijs

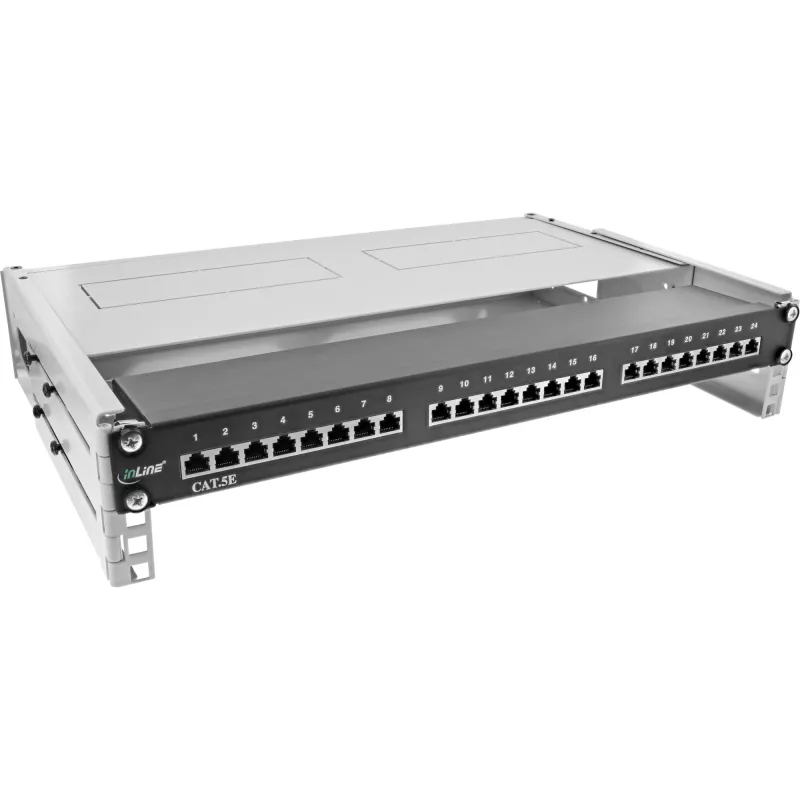

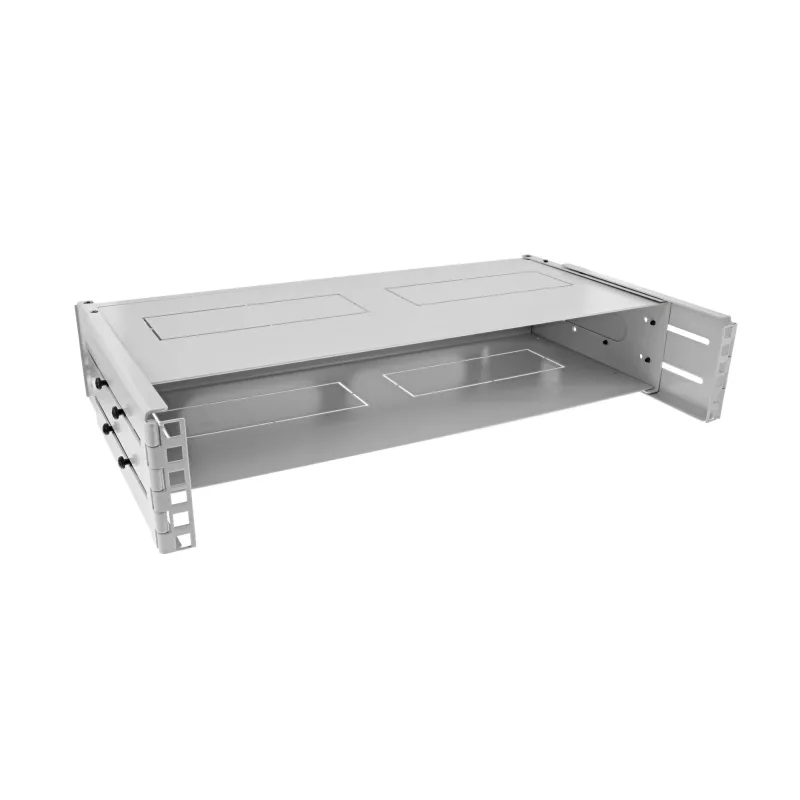

The InLine 19" foldable rack InLine 19102D 2U grey is a compact wall-mounted solution designed to hold standard 19-inch devices in a limited space. With a 2U capacity and adjustable mounting depth for equipment from 240 mm to 400 mm, the rack combines a small footprint with practical support for network switches, patch panels, small servers and other rack-mountable components. The grey finish offers a neutral appearance suitable for both home and office installations, while the foldable frame enables convenient access and storage when the mounted equipment is not in active use.

Advantages

The foldable design reduces space usage when the front access is not required and simplifies maintenance by allowing the rack to be folded down during installation and servicing. Constructed to secure 19-inch hardware with a 2U capacity and a mounting depth of up to 400 mm, the rack supports a variety of compact networking and IT devices. The grey coating provides corrosion resistance and a uniform look that integrates with different interior styles without drawing attention.

Suitable for

• Mounting small network switches and patch panels in offices and small server closets
• Home network installations where a compact, wall-mounted rack is required
• Point-of-sale or kiosk equipment installations with limited floor space
• Telecom or CCTV device mounting in technical rooms or behind counters

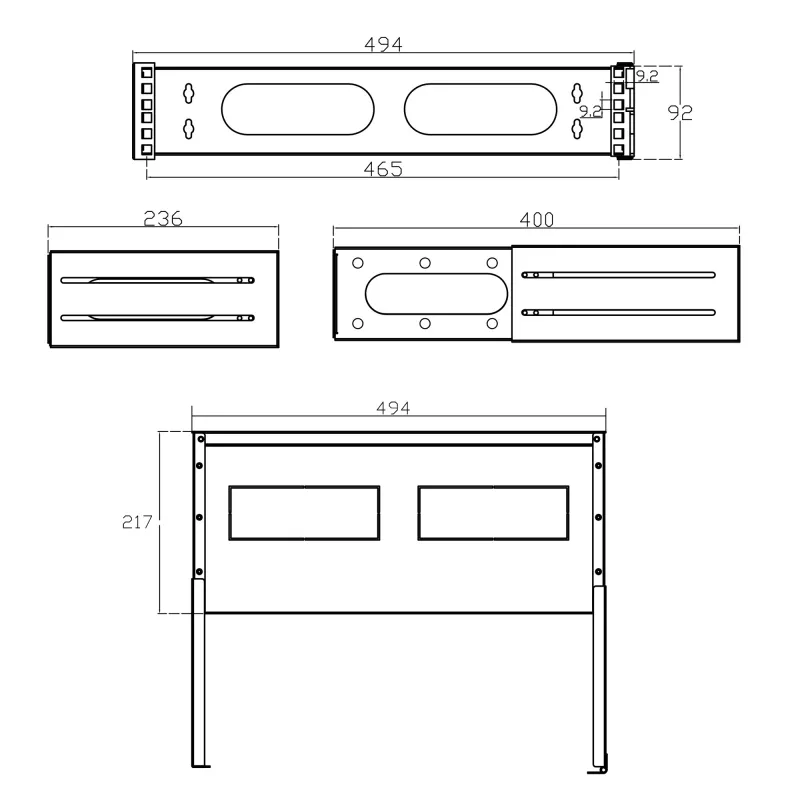

Key specifications

• Rack standard: 19-inch
• Rack capacity: 2U
• External width: 494 mm
• External height: 92 mm
• Mounting depth (adjustable): up to 400 mm
• Product colour: Grey
• Wall-mountable, foldable frame design

How to use

Choose a suitable wall location that supports the combined weight of the rack and installed equipment and provides the required cable routing. Secure the rack to wall anchors or studs following the mounting points on the back plate and use appropriate fasteners for the wall material. Mount 19-inch devices to the 2U mounting profile, adjust depth as needed within the 240–400 mm range to accommodate device chassis, and route power and network cabling through the available openings. Fold the rack closed when access is not needed or leave it open for maintenance.

Recommendations

Ensure the wall structure can support the total load before installation; distribute weight evenly and avoid exceeding the recommended equipment depth and capacity. For improved ventilation and cable management, leave minimal clearance around mounted devices and use cable ties or ducts to secure cables. Regularly inspect mounting fasteners and the folding mechanism for secure operation.
