DSIT opbouw Cat. 6a afgeschermde dubbele RJ45-doos, ivoor

Engineered for 10GBASE-T networks, this surface-mounted outlet delivers up to 500 MHz bandwidth across two shielded RJ45 ports, making it a robust choice for high-density LAN installations. The ivory ABS housing blends into office and residential environments while providing durable protection for the gold-plated LSA+ terminations inside.

Overview

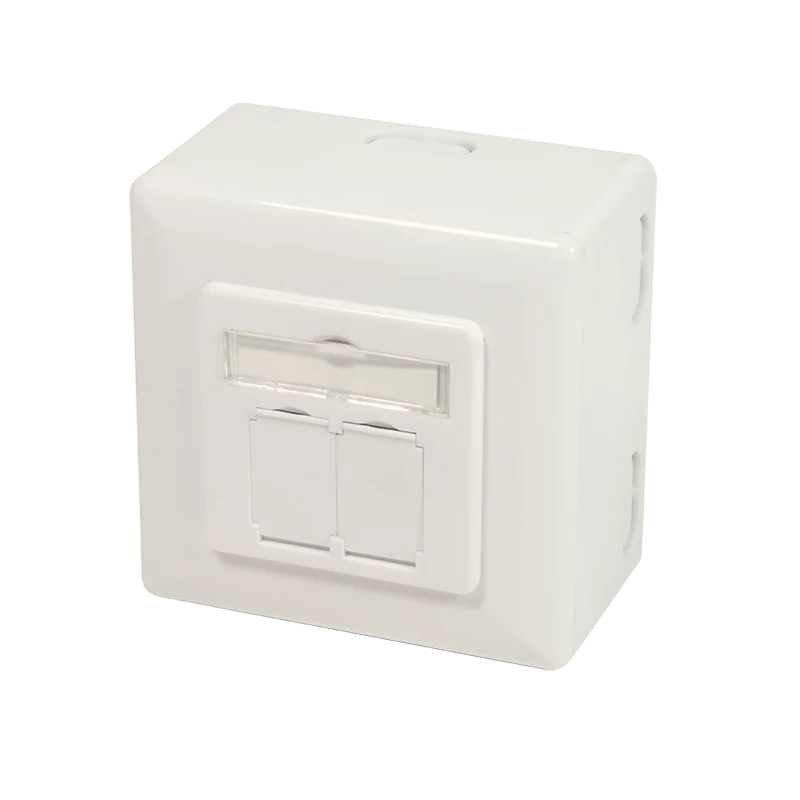

The DSIT DC-Wall-Out-STP6A-I is a dual-port Cat. 6a outlet designed for surface mounting. It supports Power over Ethernet up to 4PPoE (IEEE 802.3bt), allowing both data and power delivery through a single cable. The shielded design (STP) minimizes electromagnetic interference, ensuring reliable performance in electrically noisy environments. Compliance with ISO/IEC 11801, EN 50173, and TIA/EIA-568-C.2 guarantees interoperability with standard network equipment.

What stands out

• Dual shielded RJ45 ports for two independent connections
• Supports 10 Gigabit Ethernet with 500 MHz bandwidth
• Gold-plated contacts resist corrosion and maintain signal integrity
• LSA+ termination blocks allow tool-free or punch-down wiring
• UL 94V-0 flame-retardant ABS housing for safety
• PoE, PoE+, and 4PPoE ready for modern powered devices
• Compact surface-mount design with included mounting hardware

Technical details

• Connector type: RJ45 (2 ports)
• Shielding: Shielded (STP)
• Wiring scheme: TIA/EIA 568A/B
• Termination: LSA+ (IDC)
• Housing material: ABS plastic, UL 94V-0
• Contact plating: Gold
• Mounting type: Surface-mounted
• Color: Ivory
• Standards: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2

Our verdict

A dependable, high-performance outlet for structured cabling projects where surface mounting is required. Its dual-port shielded design and PoE support make it versatile for both data and powered device connections.
