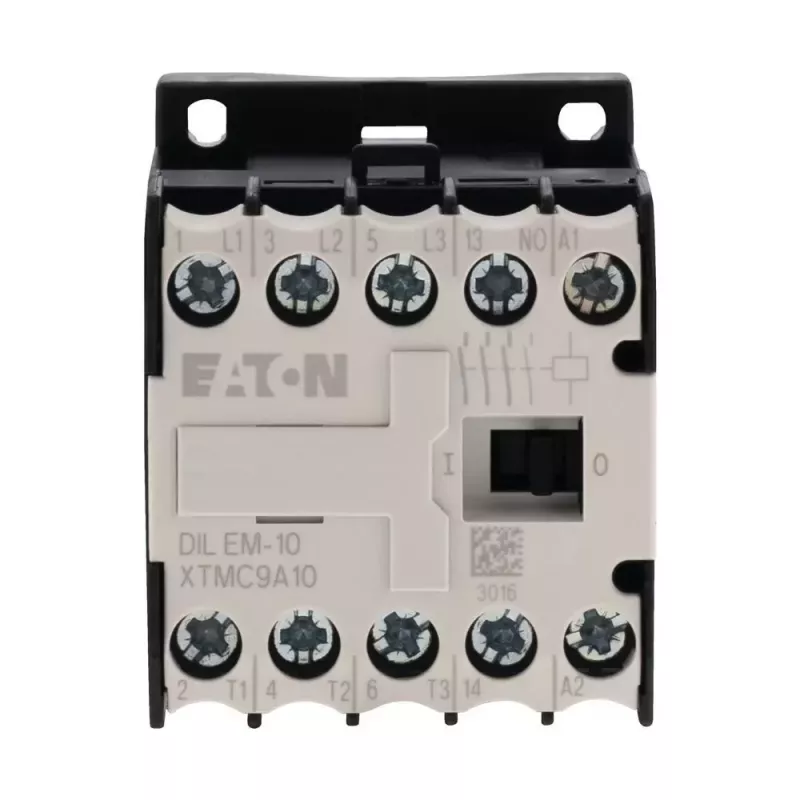

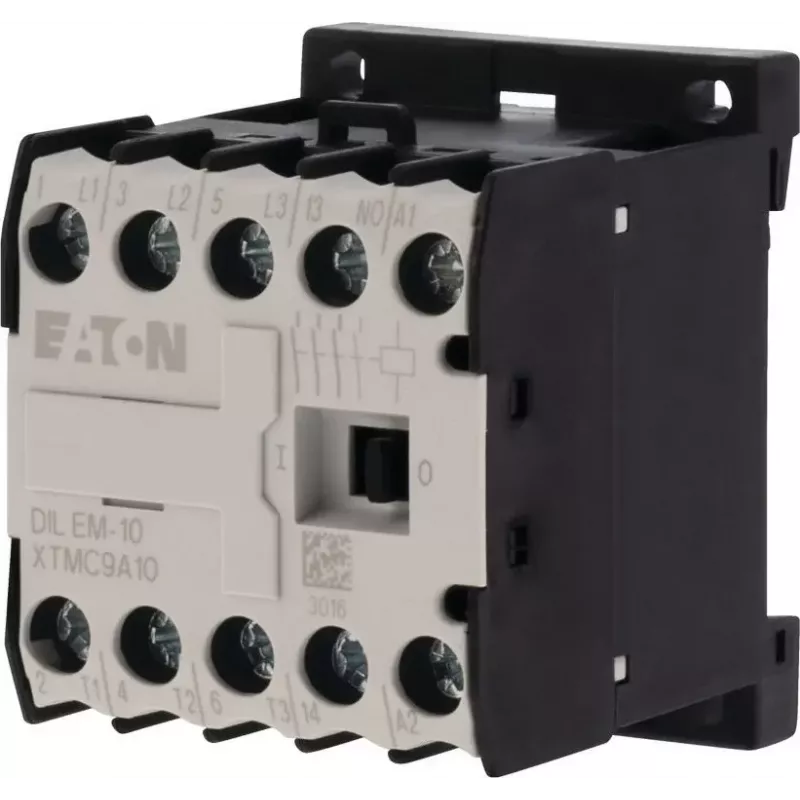

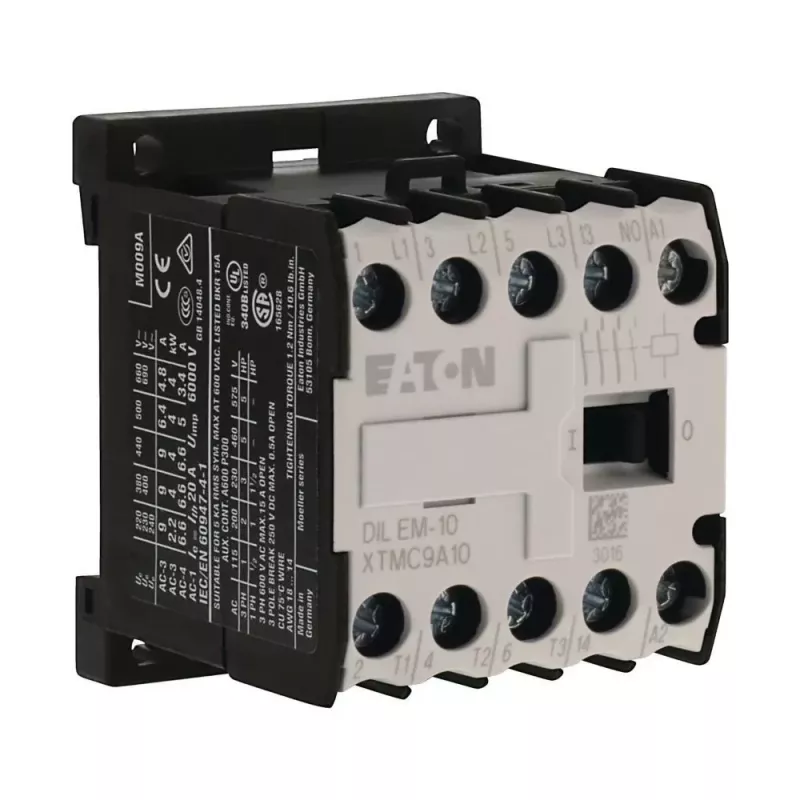

EATON DILEM-10 mini-contactor, 3-polig, 24 V AC 50 Hz spoel, 9 A AC-3, 1 NO hulpcontact 010005

Control three-phase motors up to 4 kW in industrial control panels with the EATON DILEM-10 mini contactor. Its 24 V AC 50 Hz coil integrates directly into standard control circuits, while the 3-pole main contacts switch loads up to 9 A at 400 V AC-3. The integrated 1 NO auxiliary contact provides feedback or interlocking without extra components.

Key specifications

• Rated operational current: 9 A (AC-3, 400 V), 22 A (AC-1, 400 V)
• Rated operational voltage: 690 V AC
• Control circuit: 24 V AC, 50 Hz
• Rated operational power: 4 kW (AC-3, 400 V)
• Mounting: DIN rail or screw
• Terminals: screw type
• Degree of protection: IP20
• Operating temperature: -25 to +50 °C

Why choose it

Compact footprint saves panel space, while screw terminals ensure reliable connections. The DILEM series is widely used in industrial automation for its proven performance and compliance with IEC/EN 60947, VDE 0660, UL, and CSA standards.

Ideal use cases

• Motor starting and stopping in conveyors, pumps, and fans
• Heating and lighting load switching
• Control circuit isolation and interlocking

Good to know

The contactor features a mechanical durability of 10 million operations and an electrical durability of 1 million operations, ensuring long service life. Rated impulse withstand voltage is 6 kV, with overvoltage category III and rated insulation voltage 690 V.
