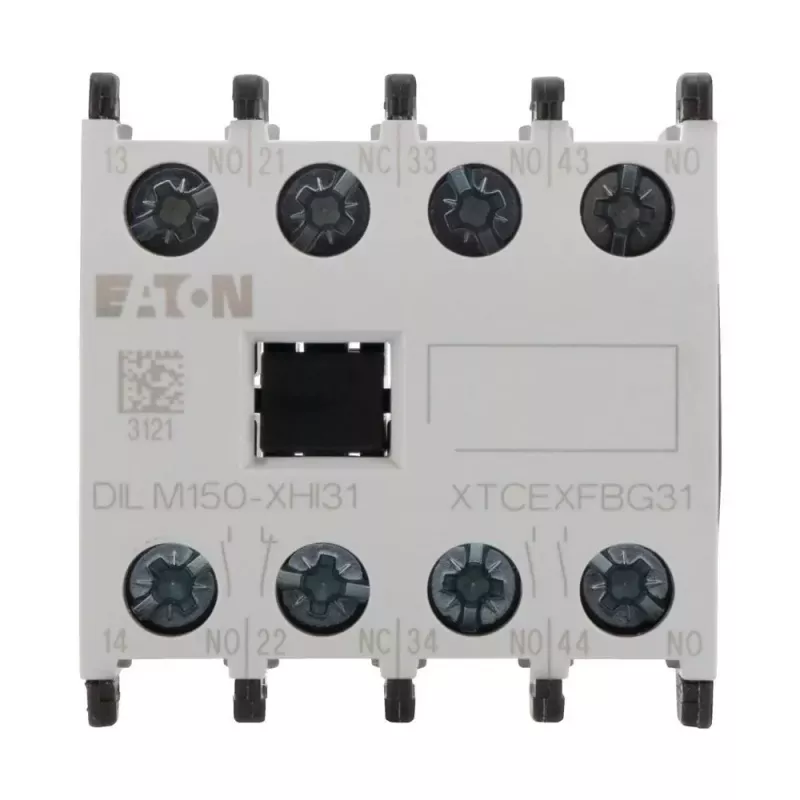

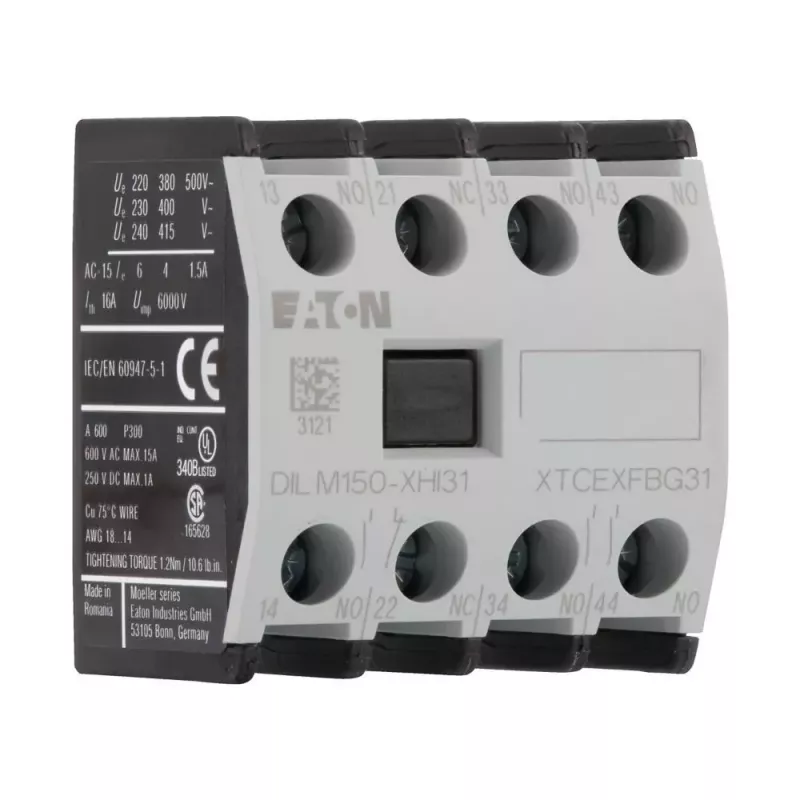

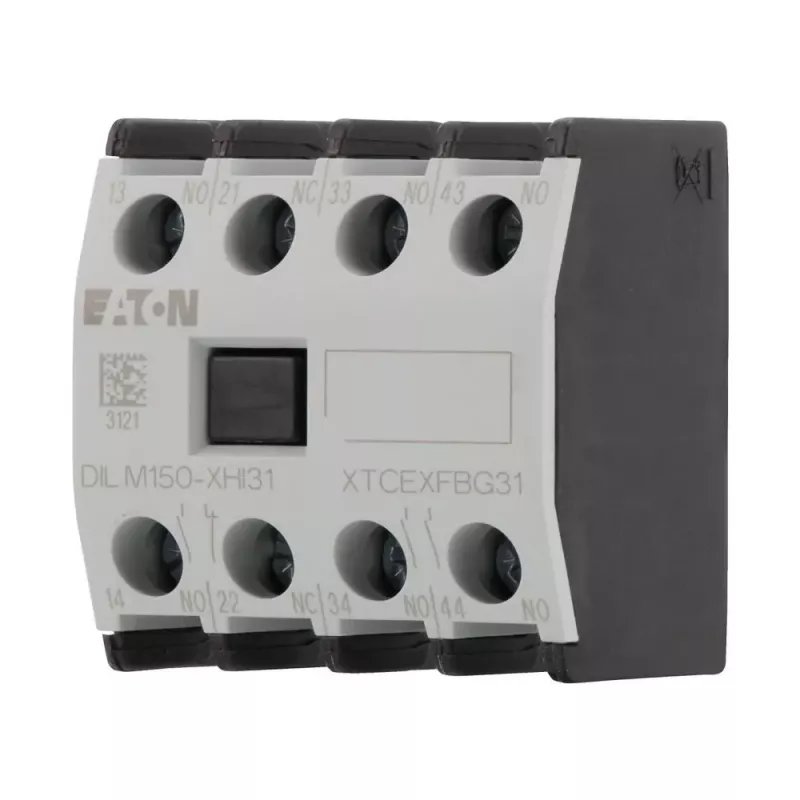

Eaton DILM150-XHI31 hulpcontactblok, 3NO+1NC, frontmontage, schroefklemmen 277949

Expand the control capabilities of your Eaton DILM contactor with the DILM150-XHI31 auxiliary contact block. This front-mounting module adds four auxiliary contacts—three normally open and one normally closed—to provide reliable status signaling and interlocking for your motor control circuits.

Who is it for

Electrical engineers, panel builders, and maintenance technicians who need to add auxiliary contacts to Eaton DILM contactors (sizes DILM40 to DILM150) for control, signaling, or interlocking functions in industrial applications.

Main features

• Contact configuration: 3 NO + 1 NC
• Front mounting for easy installation on compatible Eaton DILM contactors
• Screw terminals with connection capacity 0.75–2.5 mm² (solid/stranded)
• Rated operational current: 6 A at AC-15 230 V, 4 A at AC-15 400 V, 10 A at DC-13 24 V
• Rated operational voltage: 690 V AC, 220 V DC
• Degree of protection: IP20
• Operating temperature range: -25 to +60 °C
• Complies with IEC/EN 60947-5-1 and VDE 0660

Specifications

• Number of auxiliary contacts: 4
• Contact configuration: 3 NO + 1 NC
• Mounting type: Front mounting
• Compatibility: Eaton DILM contactors (DILM40 to DILM150)
• Terminal type: Screw terminals
• Rated operational current (AC-15, 230 V): 6 A
• Rated operational current (AC-15, 400 V): 4 A
• Rated operational current (DC-13, 24 V): 10 A
• Rated operational voltage (Ue AC): 690 V
• Rated operational voltage (Ue DC): 220 V
• Degree of protection: IP20
• Operating temperature range: -25 to +60 °C
• Storage temperature range: -40 to +80 °C
• Standards compliance: IEC/EN 60947-5-1, VDE 0660
• Connection capacity (solid/stranded): 0.75 - 2.5 mm²
• Tightening torque: 0.8 Nm
• Product series: DILM
• Function: Auxiliary contact block

Tips

Verify the contactor model before ordering to ensure proper fit. The DILM150-XHI31 is designed for front mounting and requires no additional tools beyond a screwdriver for terminal connections.
