EFB Elektronik BASIC wandbehuizing netwerkkast 12U 19 inch zwart RAL 9005 600x450x635 mm WGB-1912TS.60

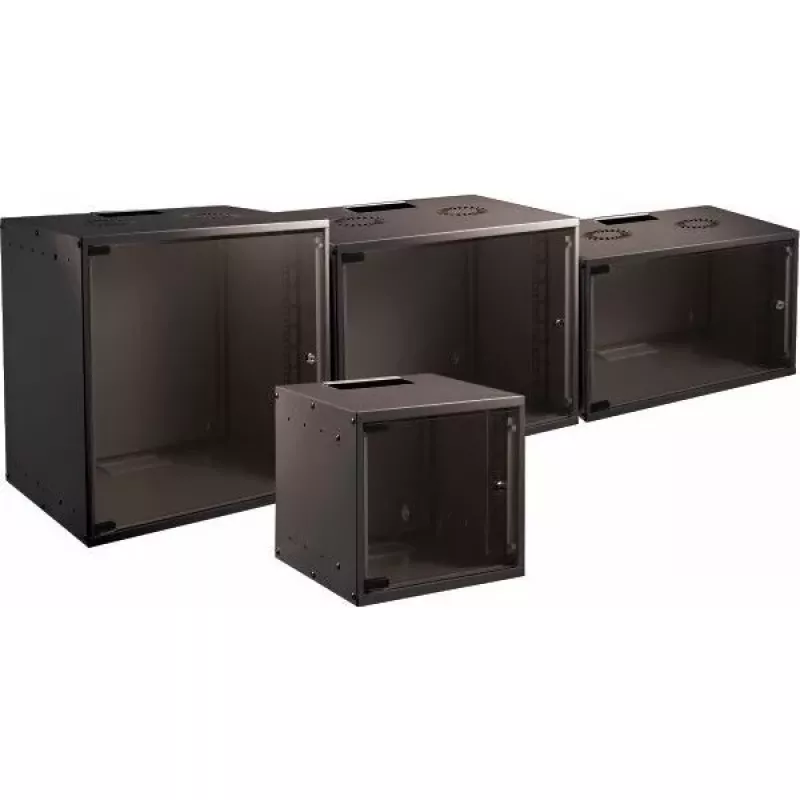

The EFB Elektronik BASIC WGB-1912TS.60 is a robust 12U wall-mount network cabinet designed for secure and organized installation of 19-inch rack equipment. With a sleek black RAL 9005 finish and a depth of 450 mm, this cabinet is ideal for small to medium-sized network setups in offices, server rooms, or industrial environments. It features a lockable safety glass front door, removable side panels, and adjustable mounting rails for flexible equipment placement.

Advantages

Space-saving wall-mount design with 12U capacity; lockable safety glass door for equipment protection; adjustable 19-inch profile rails for versatile mounting; cable entry at top and bottom for tidy routing; passive ventilation with optional fan support; pre-assembled for quick installation.

Suitable for

• Network switches, patch panels, and routers
• Small server and IT equipment
• Audio/video distribution systems
• Security and surveillance equipment

Key specifications

• Rack Units: 12U
• Rack Standard: 19-inch
• Mounting: Wall-mountable
• Colour: Black (RAL 9005)
• Material: Steel
• Overall Width: 600 mm
• Overall Depth: 450 mm
• Overall Height: 635 mm
• Max. Static Load Capacity: 60 kg
• Front Door: Lockable safety glass
• Side Panels: Removable, lockable
• Cable Entry: Top and bottom
• Ventilation: Passive (perforations, optional fan)
• Protection Rating: IP20
• Mounting Rails: Adjustable 19-inch profile rails
• Assembly: Pre-assembled

Recommendations

For optimal cable management, pair with EFB patch panels and cable managers. Ensure wall mounting surface can support the cabinet's weight (up to 60 kg loaded).
