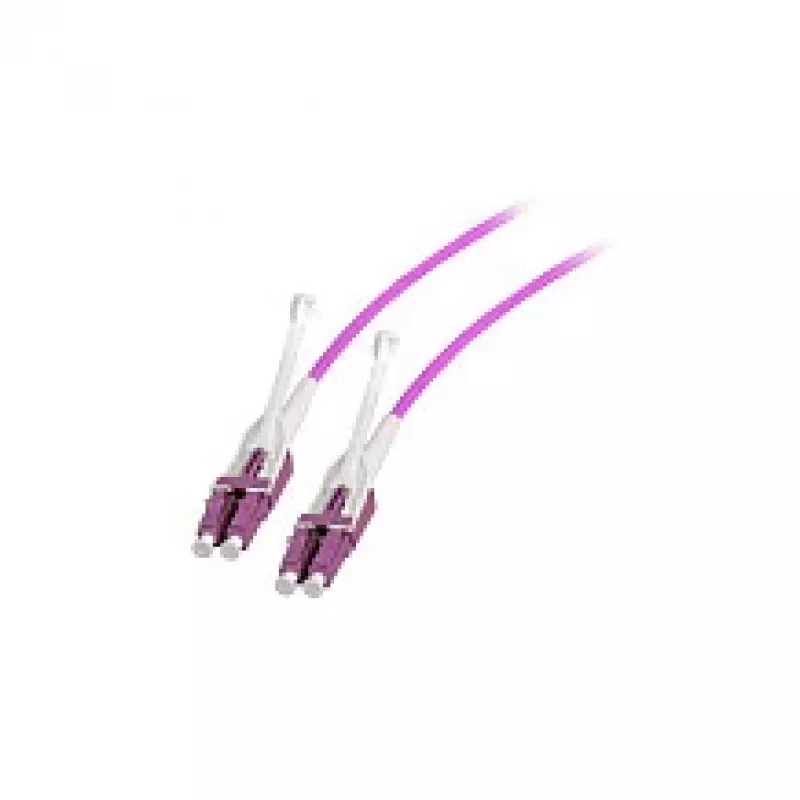

EFB Elektronik duplex jumper LC-LC OM4 0,5m met push/pull-tab, verwisselbare polariteit

The EFB Elektronik Duplex Jumper LC-LC OM4 0.5m is a high-performance fiber optic patch cable designed for reliable data transmission in multimode networks. Featuring a push/pull tab for easy handling and changeable polarity, this jumper ensures flexibility and efficiency in your cabling infrastructure.

Advantages

Optimized for OM4 multimode fiber, this jumper delivers low insertion loss and high return loss, ensuring minimal signal degradation. The LSZH jacket provides safety in enclosed spaces, while the aqua color facilitates easy identification. The push/pull tab simplifies connector mating and unmating, and the reversible polarity allows for adaptable network configurations.

Suitable for

• Data center interconnects
• High-speed local area networks (LANs)
• Storage area networks (SANs)
• Telecommunications rooms
• Fiber-to-the-desk applications

Key specifications

• Connector Type: LC Duplex to LC Duplex
• Fiber Mode: Multimode OM4
• Cable Length: 0.5 m
• Core/Cladding Diameter: 50/125 µm
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Aqua
• Connector Feature: Push/Pull Tab
• Polarity: Changeable / Reversible
• Insertion Loss (Typical): ≤ 0.2 dB
• Return Loss (Typical): ≥ 30 dB
• Attenuation at 850nm: ≤ 2.3 dB/km
• Attenuation at 1300nm: ≤ 0.6 dB/km
• Minimum Bend Radius: 7.5 mm
• Operating Temperature: -20°C to +70°C
• Compliance: RoHS, REACH
• Ferrule Material: Zirconia Ceramic

Recommendations

For optimal performance, pair this jumper with OM4-compatible transceivers and patch panels. Ensure proper cable management to maintain bend radius and avoid signal loss.
