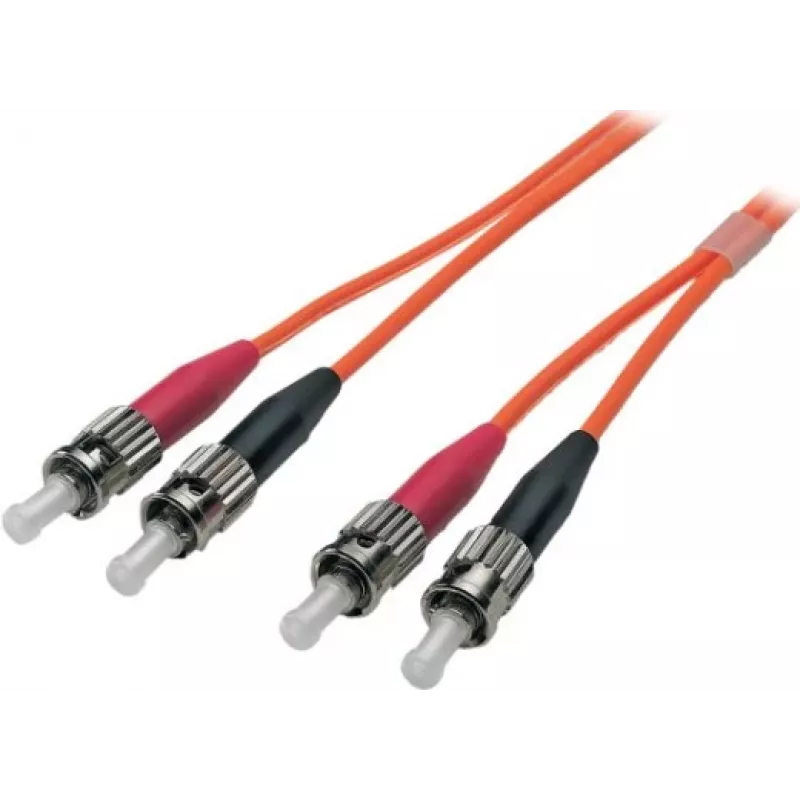

EFB Elektronik ECOFIBER duplex jumper ST-ST OM1 62.5/125µm LSZH oranje 3,0mm 10m

The EFB Elektronik ECOFIBER Duplex Jumper ST-ST is a high-quality fiber optic patch cable designed for reliable data transmission in networking and telecommunications applications. With OM1 multimode fiber, 62.5/125µm core/cladding, and ST connectors on both ends, this 10-meter cable ensures low signal loss and excellent performance for 100BASE-FX and 10BASE-FL networks. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in enclosed spaces, while the orange color and 3.0mm diameter per strand offer easy identification and durability.

Advantages

This cable delivers superior optical performance with typical attenuation of 3.5 dB/km at 850nm and 1.5 dB/km at 1300nm. The duplex configuration supports bidirectional communication, and the ST connectors provide secure, stable connections. The LSZH jacket reduces toxic smoke emissions in case of fire, making it ideal for use in offices, data centers, and public buildings.

Suitable for

• Data networking (100BASE-FX, 10BASE-FL)
• Telecommunications infrastructure
• Fiber optic patch panels and equipment connections
• Indoor installations requiring low smoke and halogen-free materials

Key specifications

• Fiber Type: Multimode OM1
• Core/Cladding: 62.5/125 µm
• Connectors: ST to ST, Duplex
• Cable Length: 10 meters
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Orange
• Cable Diameter: 3.0 mm per strand
• Attenuation: 3.5 dB/km @ 850nm, 1.5 dB/km @ 1300nm

Recommendations

For optimal performance, ensure connectors are clean and properly mated. This cable is compatible with standard ST fiber optic interfaces and is suitable for use in structured cabling systems. Pair with EFB Elektronik patch panels and adapters for a complete solution.
