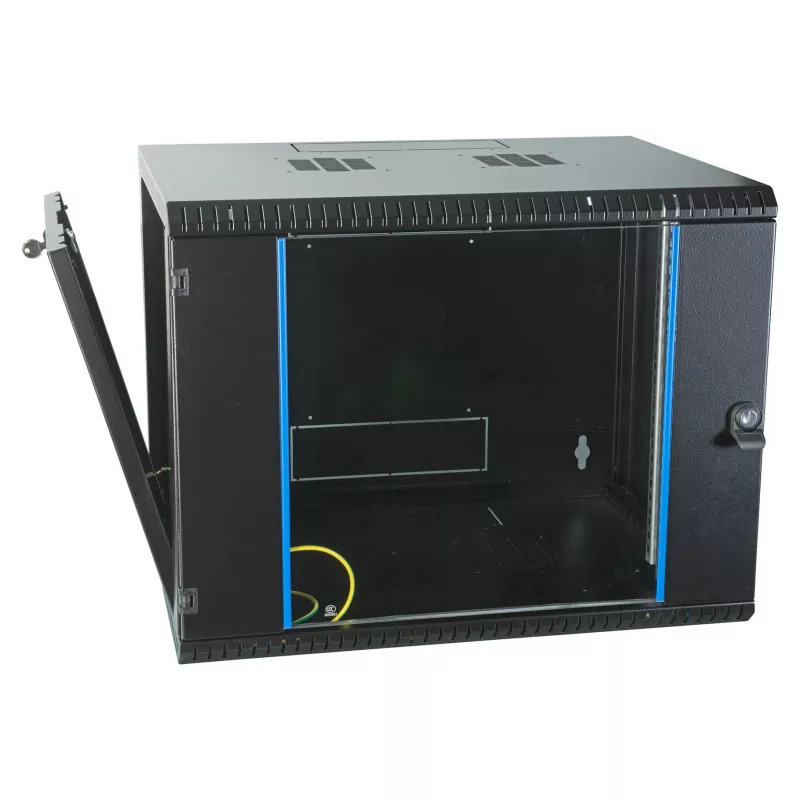

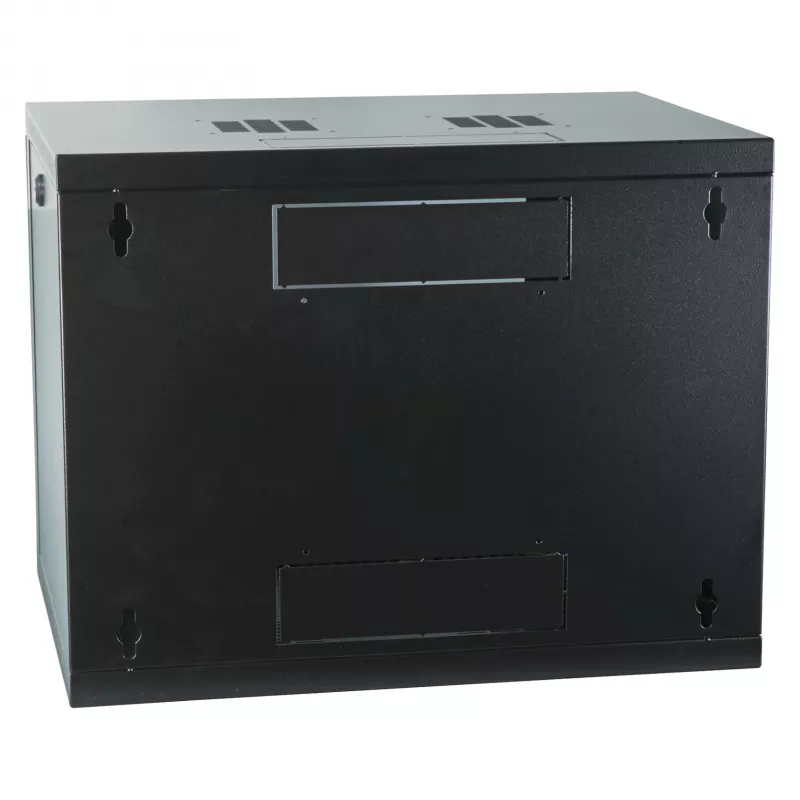

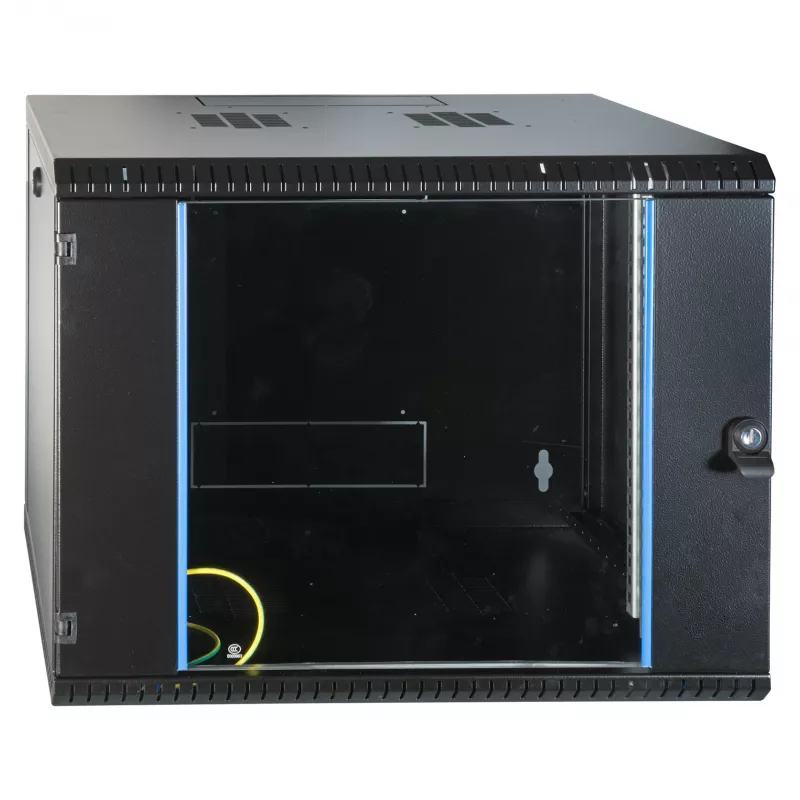

EFB-ELEKTRONIK 19 inch wandbehuizing 9U, vast, eendelig, RAL 9005, diepte 450 mm (691709VTS.45)

The EFB-ELEKTRONIK 19" Wall-Mount Enclosure 9U offers a robust and secure housing solution for your network and IT equipment. Designed for wall mounting, this single-section cabinet features a fixed frame and a sleek black finish (RAL 9005). With a depth of 450 mm, it provides ample space for 19" rack-mountable devices up to 9 rack units. The enclosure is pre-assembled for quick installation and includes a tempered safety glass front door with lock for enhanced security.

Advantages

Space-saving wall-mount design ideal for server rooms, offices, and industrial environments. The lockable front door protects valuable equipment from unauthorized access. Passive ventilation through perforated areas ensures adequate airflow without active cooling. The depth-adjustable 19" profile rails allow flexible mounting of various devices. Pre-assembled construction reduces installation time and effort.

Suitable for

• Network switches, patch panels, and routers
• Small servers and UPS systems
• Audio/video equipment in commercial installations
• Industrial control systems and automation hardware

Key specifications

• Rack Units: 9U
• Rack Width: 19 inch
• Mounting Type: Wall-mount
• Cabinet Type: Single-section, Fixed Frame
• External Dimensions (HxWxD): 505 x 540 x 450 mm
• Colour: Black (RAL 9005)
• Material: Steel Sheet
• Front Door: Tempered Safety Glass, Lockable
• Side Panels: Fixed
• Cable Entry: Top and Bottom with Plastic Cover
• Ventilation: Passive (Perforated Areas)
• Max. Static Load Capacity: 60 kg
• IP Protection Class: IP20
• Mounting Rails: 2x 19" Profile Rails, Depth Adjustable
• Assembly State: Pre-assembled

Recommendations

For optimal cable management, pair this enclosure with EFB-ELEKTRONIK cable management panels and accessories. Ensure the wall mounting surface can support the total weight of the cabinet and installed equipment. Use appropriate fixings for the wall type (e.g., concrete, brick).
