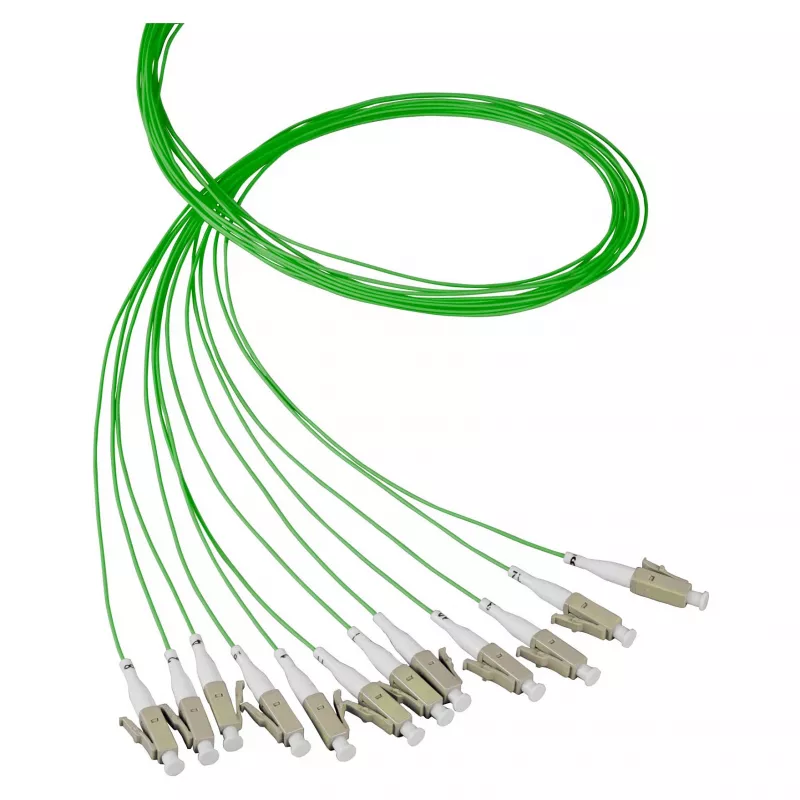

EFB-Elektronik fiber pigtail LC OM2 50/125µm groen 2m

The EFB-Elektronik Fiber Pigtail LC OM2 50/125µm Green 2m is a high-quality single-fiber pigtail designed for splicing and termination in fiber optic networks. It features a pre-polished LC connector with PC polish, ensuring low insertion loss and high return loss for reliable signal transmission. The pigtail is manufactured with 50/125µm multimode OM2 fiber, providing excellent bandwidth performance at 850nm and 1300nm wavelengths. The green LSZH (Low Smoke Zero Halogen) jacket ensures safety and durability, making it suitable for use in patch panels, ODFs, and direct splicing applications.

Advantages

This pigtail offers easy and fast field termination, reducing installation time and labor costs. The LC connector provides a compact footprint, ideal for high-density environments. With typical insertion loss ≤0.3 dB and return loss ≥30 dB, it ensures minimal signal loss and high network performance. The LSZH jacket complies with safety standards, reducing toxic smoke in case of fire.

Suitable for

• Fiber optic splicing and termination in telecom and data centers
• Connecting fiber optic cables to patch panels and ODFs
• Network upgrades and maintenance in enterprise LANs
• FTTx and campus backbone installations

Key specifications

• Connector: LC, PC polish
• Fiber type: Multimode OM2, 50/125µm
• Length: 2 meters
• Jacket color: Green
• Jacket material: LSZH
• Number of fibers: 1
• Insertion loss (typical): ≤0.3 dB
• Return loss (typical): ≥30 dB
• Operating temperature: -20°C to +70°C
• Compliance: RoHS, CE

Recommendations

For optimal performance, use with OM2-rated patch panels and splice trays. Ensure clean connector ends before mating. Store in a dry, dust-free environment within the specified temperature range.
