EFB Keystone adapter module RJ45 STP Cat.6A 90° zinkdrukgieterij 40mm

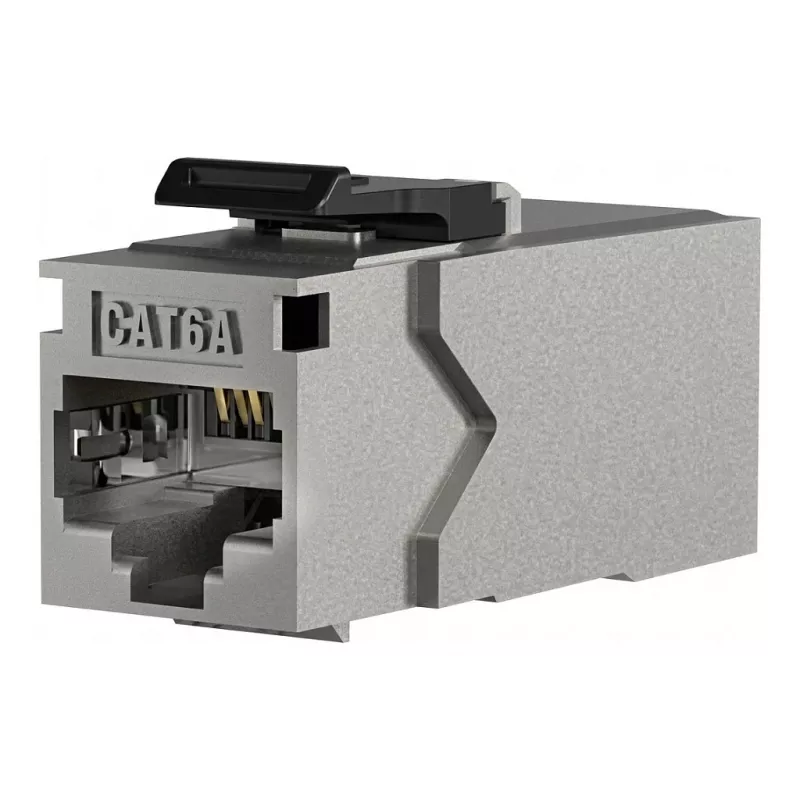

The EFB-ELEKTRONIK Keystone Einbauadapter RJ45 STP, Cat.6A, 90° Anschluß, Zinkdruckguß T=40mm (37483.2) is a high-performance shielded keystone module designed for structured cabling systems. It supports 10GBASE-T transmission over Category 6A cabling, ensuring reliable data rates for demanding network environments. The 90-degree angled connection facilitates easy installation in tight spaces, while the die-cast zinc housing provides robust durability and effective EMI shielding.

Advantages

This keystone module offers superior shielding (STP) to minimize electromagnetic interference, making it ideal for high-speed data networks. The 90° angled design reduces cable strain and simplifies routing in patch panels and faceplates. Gold-plated contacts ensure corrosion resistance and reliable connectivity over time. Compliant with PoE standards (IEEE 802.3af/at/bt), it supports power over Ethernet for devices like IP cameras and wireless access points.

Suitable for

• Data network cabling in commercial and industrial environments
• 10 Gigabit Ethernet (10GBASE-T) installations
• Structured cabling systems requiring Cat.6A performance
• Applications where shielded connections are necessary to reduce crosstalk and EMI

Key specifications

• Product Type: Keystone Module
• Connector Type: RJ45
• Performance Category: Cat.6A (Category 6A)
• Shielding Type: STP (Shielded Twisted Pair)
• Connection Angle: 90° (Angled)
• Housing Material: Die-cast Zinc
• Installation Depth: 40 mm
• Transmission Standard: 10GBASE-T (10 Gigabit Ethernet)
• Frequency Bandwidth: 500 MHz
• Wiring Standard: TIA/EIA 568 A/B
• Termination Type: LSA (IDC)
• Contact Plating: Gold-plated contacts
• PoE Support: PoE, PoE+, 4PPoE (IEEE 802.3af/at/bt)
• Mounting Standard: Keystone
• Number of Ports: 1
• Flammability Rating: UL 94V-0
• Operating Temperature: -10°C to +60°C

Recommendations

For optimal performance, pair this module with Cat.6A STP cabling and compatible keystone patch panels. Ensure proper termination using LSA/punchdown tools. Suitable for use in data centers, server rooms, and enterprise networks requiring high-speed, shielded connections.
