EFB Elektronik Fiber Optic Patch Panel - Rack Mount - SC SM X 48 - grijs, RAL 7035 - 1U - 19 inch

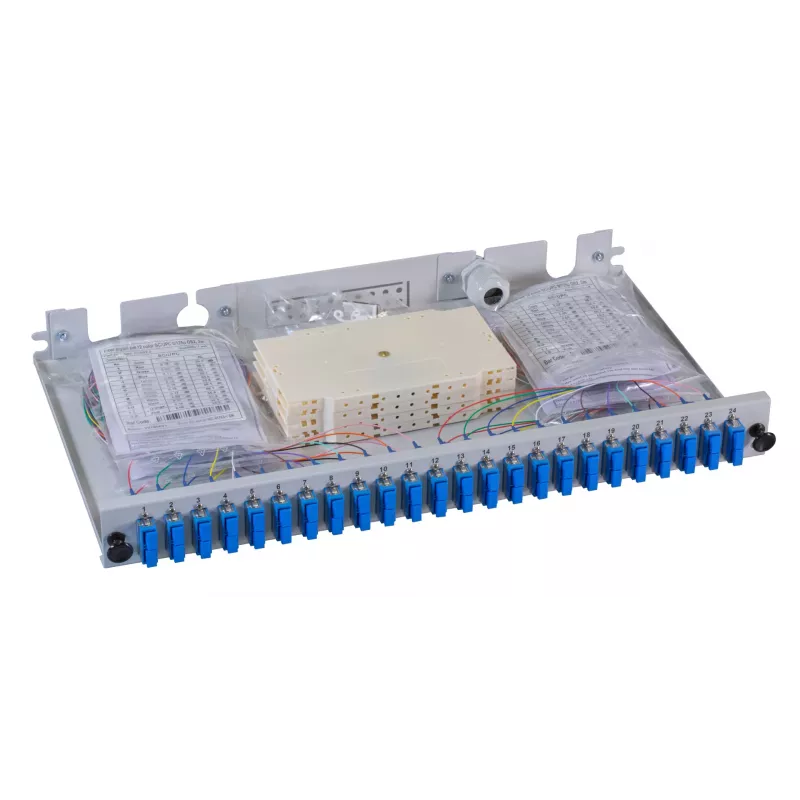

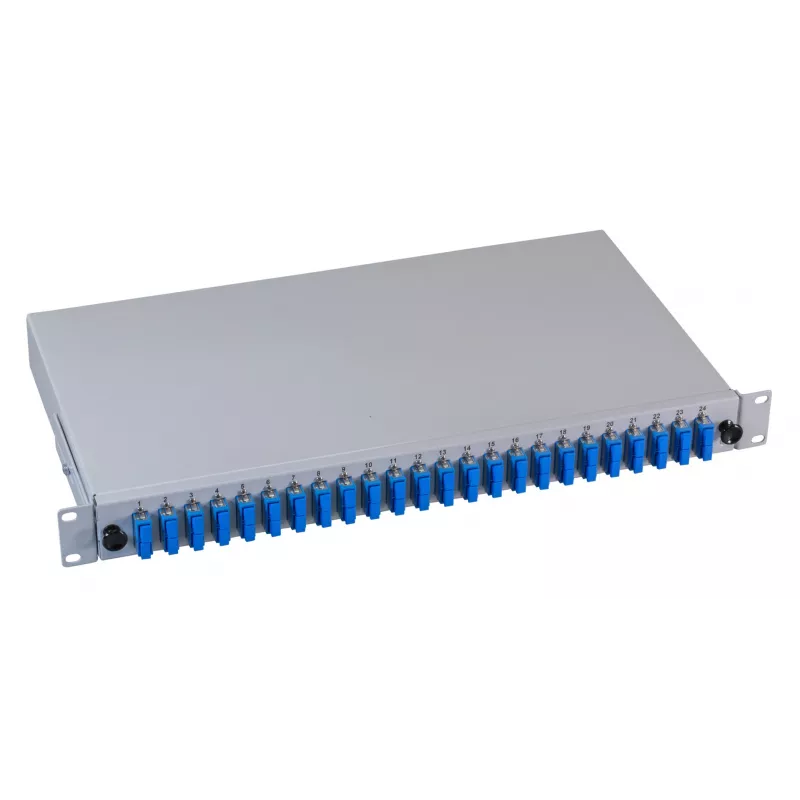

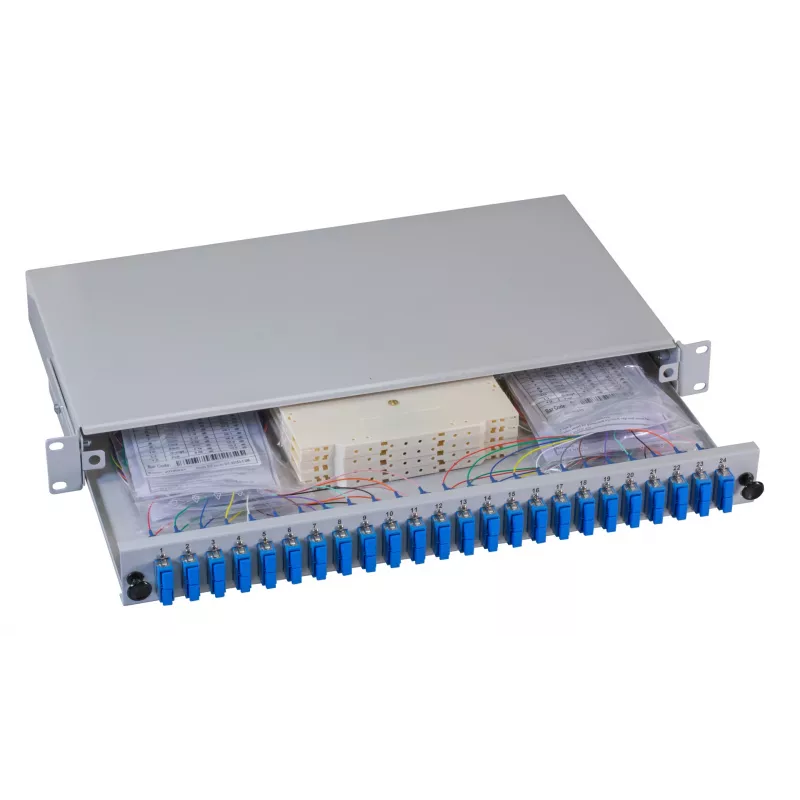

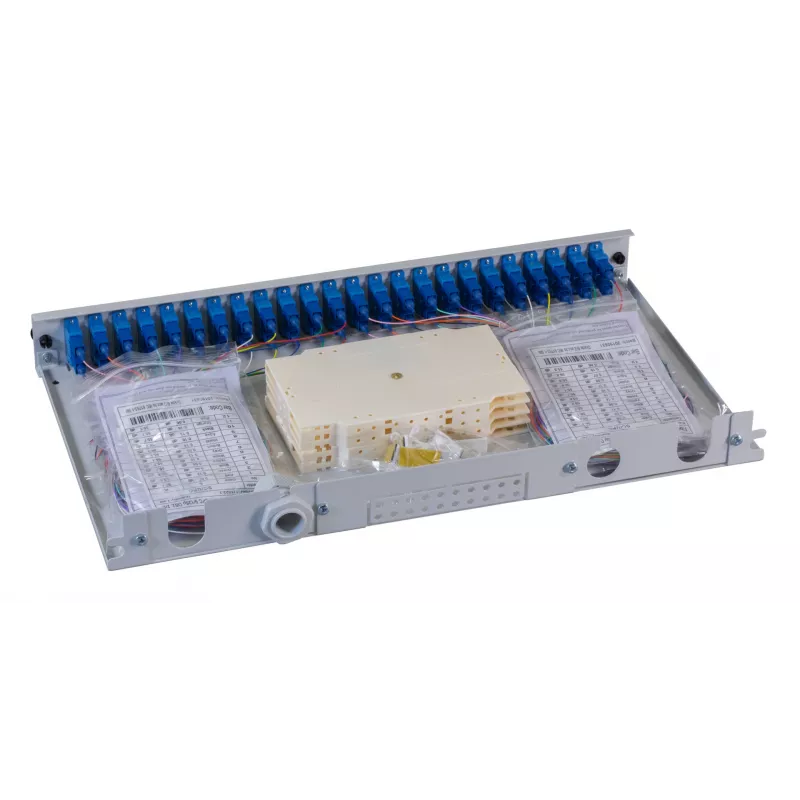

The EFB Elektronik B71223.48 is a high-quality fiber optic patch panel designed for professional rack mounting. It features 48 SC-Duplex ports with single-mode OS2 fiber capacity, supporting up to 96 fibers. The panel is finished in grey (RAL 7035) and occupies 1U of rack space in a standard 19-inch rack. Ideal for data centers, server rooms, and telecommunications applications, it includes integrated cable management and a splice tray for efficient organization.

Advantages

This patch panel offers reliable performance and easy installation. Its robust steel housing ensures durability, while the rear cable entry and integrated strain relief simplify cable routing. The included splice tray facilitates quick splicing and termination, reducing installation time.

Suitable for

• Data centers requiring high-density fiber connectivity
• Server rooms for structured cabling
• Telecommunications networks
• Enterprise LAN and WAN infrastructure

Key specifications

• Product Type: Fiber Optic Patch Panel
• Mounting: Rack Mount, 19 inch, 1U
• Connector: SC-Duplex, 48 ports
• Fiber Capacity: 96 fibers (single mode OS2)
• Color: Grey (RAL 7035)
• Housing Material: Steel
• Front Panel: Fixed
• Cable Entry: Rear
• Splice Tray: Included
• Protection Class: IP20
• Standards: RoHS, REACH

Recommendations

For optimal performance, use with OS2 single-mode patch cables and ensure proper cable management. This panel is compatible with standard 19-inch racks and is suitable for high-density fiber applications.
