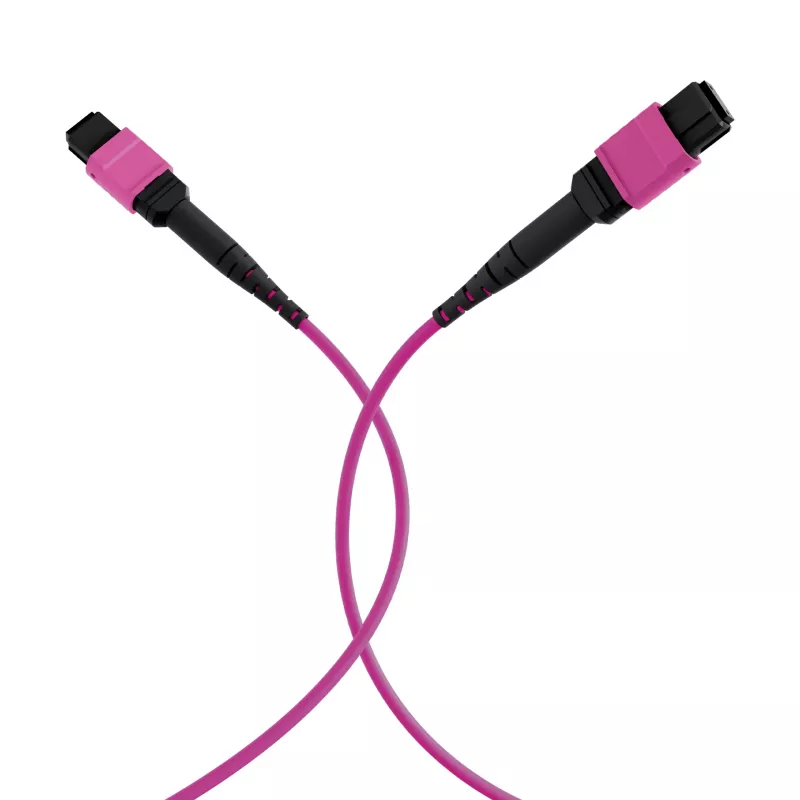

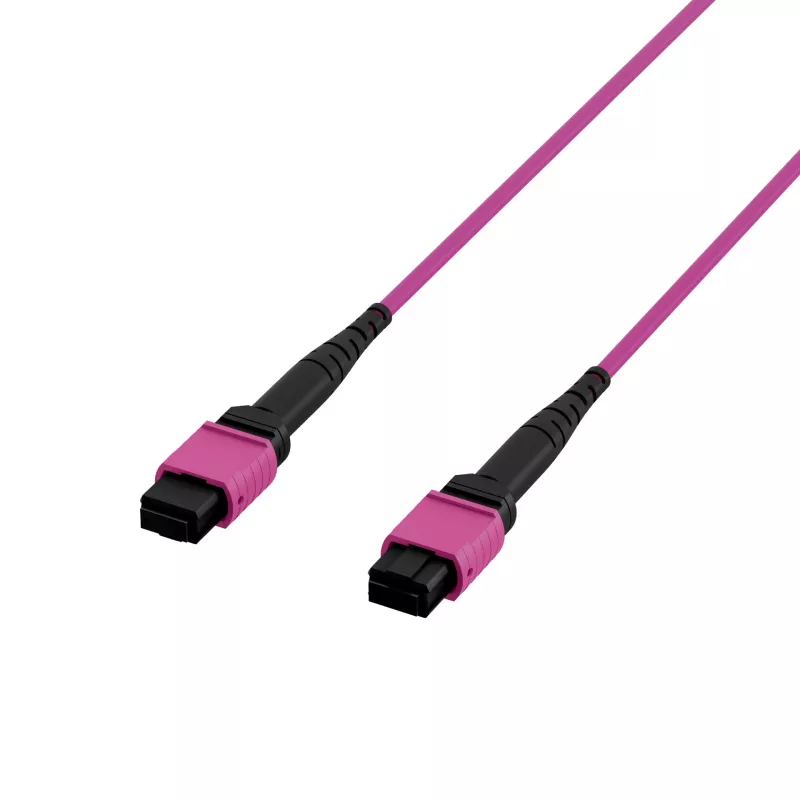

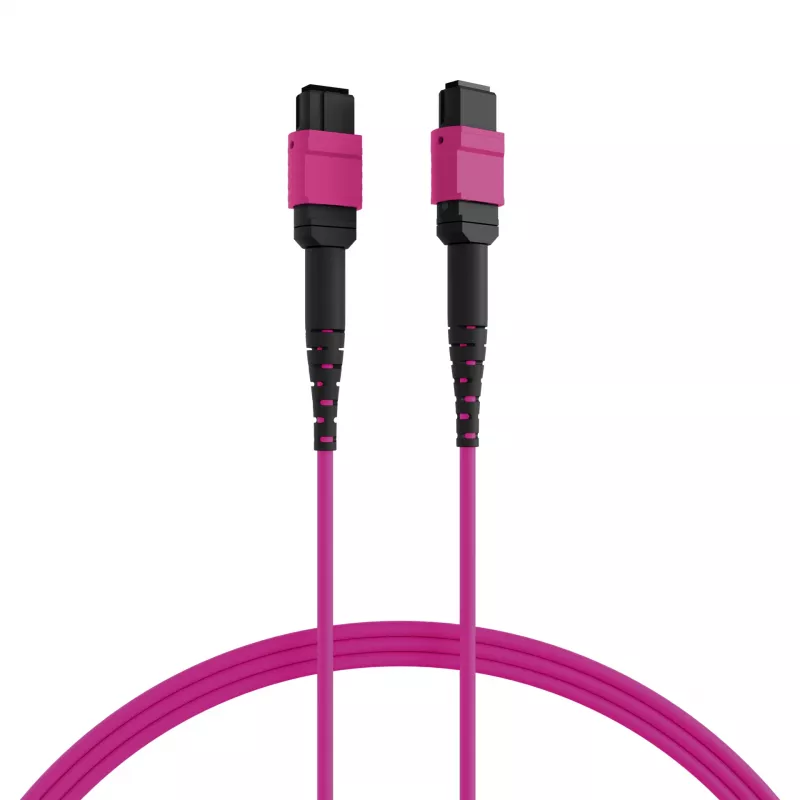

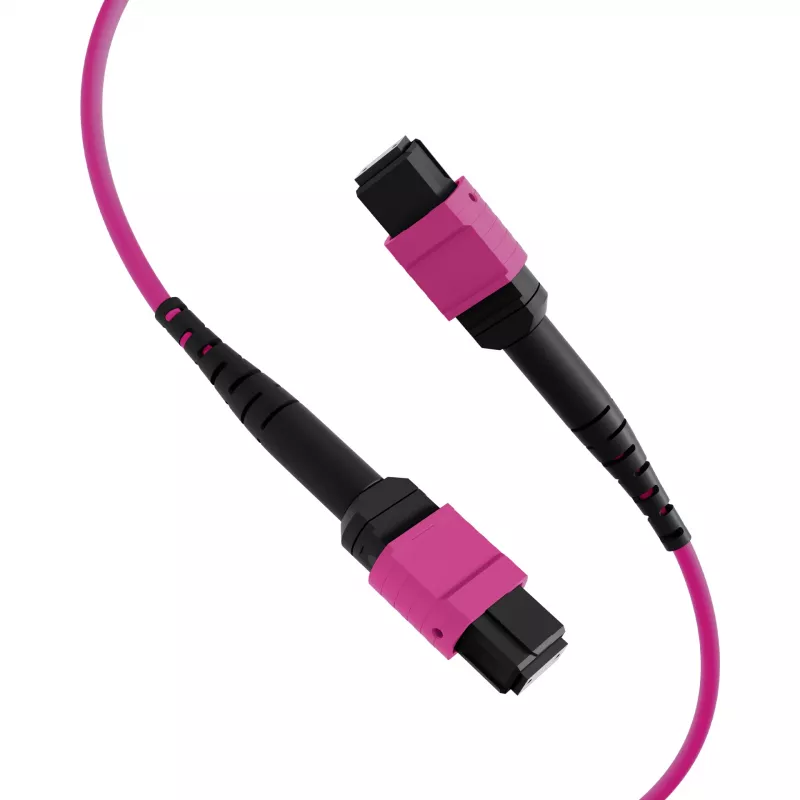

EFB Elektronik MPO-PLUS(F)-MPO-PLUS(F) patchkabel OM4 8 vezels type B LSZH erika-violet 5 m MPOF8MPOFOM4-5

This EFB Elektronik MPO-PLUS(F)-MPO-PLUS(F) patch cable stands out with its 8-fiber OM4 multimode design and Type B polarity, optimized for high-density 40/100GbE data center links. The Erika-violet LSZH jacket ensures low smoke and halogen-free safety, while the MPO-PLUS female connectors provide reliable, low-loss connections.

Highlights

• 8-fiber OM4 multimode cable with 50/125 µm core/cladding
• MPO-PLUS female to MPO-PLUS female connectors, Type B polarity
• LSZH (Low Smoke Zero Halogen) jacket in Erika-violet
• 5-meter length for flexible rack-to-rack or intra-rack connections
• Supports 40/100 Gigabit Ethernet applications

In daily use

This patch cable is built for high-density fiber environments where space and performance matter. The MPO-PLUS connectors offer a compact footprint, and the LSZH jacket reduces toxic emissions in case of fire, making it suitable for data centers, SANs, and enterprise LANs. The violet color aids in quick identification of OM4 cabling.

Full specifications

• Fiber type: Multimode OM4
• Number of fibers: 8
• Connector type A: MPO-PLUS Female
• Connector type B: MPO-PLUS Female
• Polarity: Type B
• Cable length: 5 m
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Cable color: Erika-violet
• Core/cladding diameter: 50/125 µm
• Insertion loss (max): < 0.35 dB per connector
• Return loss (min): > 20 dB
• Attenuation at 850 nm: < 3.0 dB/km
• Attenuation at 1300 nm: < 1.0 dB/km
• Operating temperature: -20°C to 70°C
• Storage temperature: -40°C to 85°C
• Standards compliance: IEC 61754-7, TIA/EIA-604-5 (FOCIS-5)

Final note

An ideal choice for high-speed backbone connections where reliability and safety are paramount.
