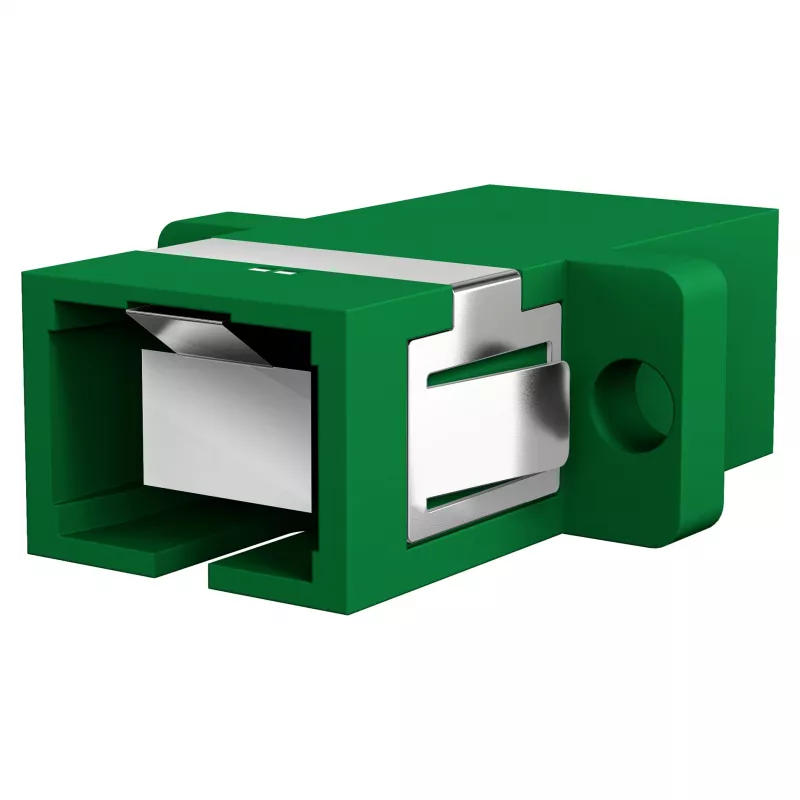

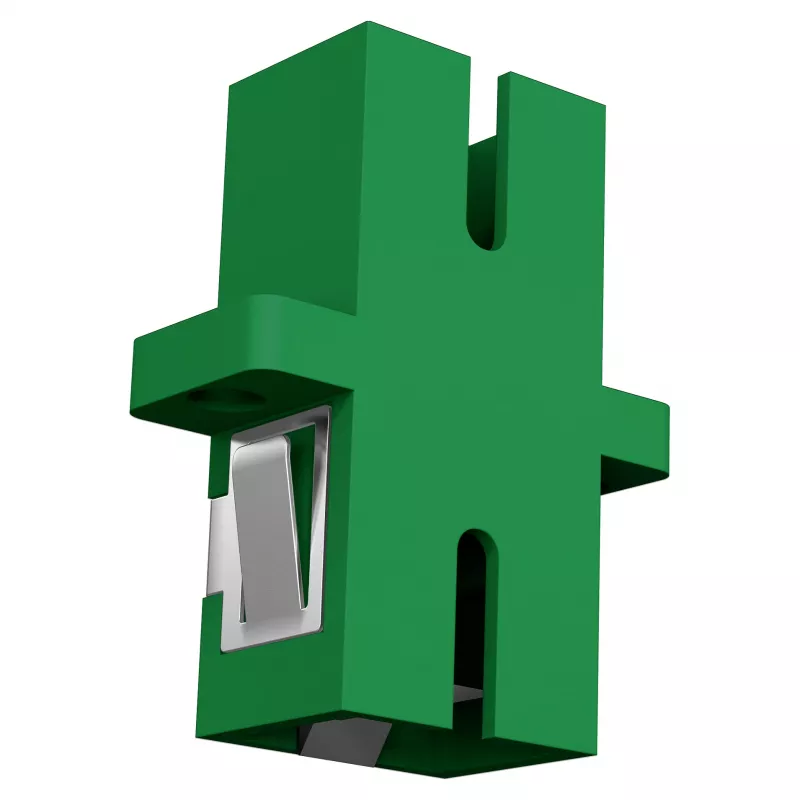

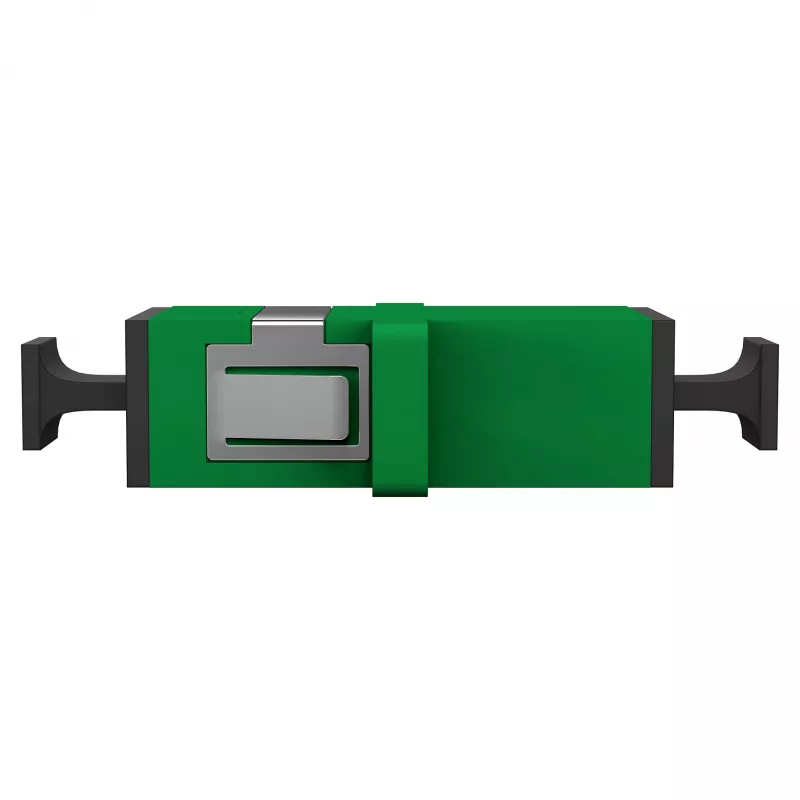

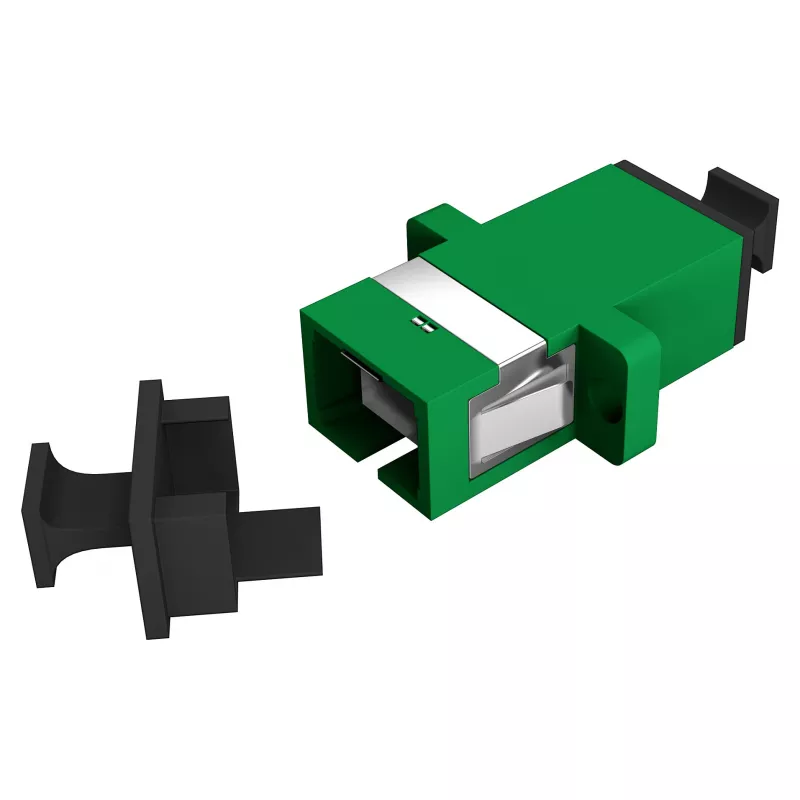

EFB Elektronik SC/APC Simplex Singlemode glasvezelkoppelaar met stofkap, groen, zirkoniumoxide keramische huls

The EFB Elektronik SC/APC Simplex Single Mode Fiber Optic Coupler is a high-quality adapter designed for reliable fiber optic connections. Featuring an integrated dust shutter and a zirconia ceramic sleeve, this one-piece coupler ensures low insertion loss and high return loss, making it ideal for telecommunications, data centers, FTTx, and LAN applications.

Advantages

This coupler offers exceptional performance with ≤0.2 dB insertion loss and ≥60 dB return loss, ensuring minimal signal degradation. The integrated dust shutter protects the ferrule end-face from contamination, extending the lifespan of the connection. The green color coding allows for easy identification of APC connectors.

Suitable for

• Telecommunications networks
• Data centers
• FTTx (Fiber to the x) installations
• Local Area Networks (LAN)

Key specifications

• Connector Type: SC/APC
• Fiber Mode: Single Mode (SM)
• Configuration: Simplex
• Design: One-piece
• Features: Integrated Dust Shutter
• Sleeve Material: Zirconia Ceramic
• Color: Green
• Insertion Loss: ≤ 0.2 dB
• Return Loss: ≥ 60 dB
• Mating Durability: > 500 cycles
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Housing Material: PBT (Polybutylene terephthalate)
• Flammability Rating: UL94 V-0
• Mounting Type: Flange Mount
• Compliance: RoHS, REACH
• Standards: IEC 61754-4, TIA/EIA-604-3
• Ferrule End-face: Angled Physical Contact (APC)

Recommendations

For optimal performance, pair this coupler with high-quality SC/APC patch cables and ensure proper cleaning before installation. The integrated shutter provides added protection in dusty environments.
