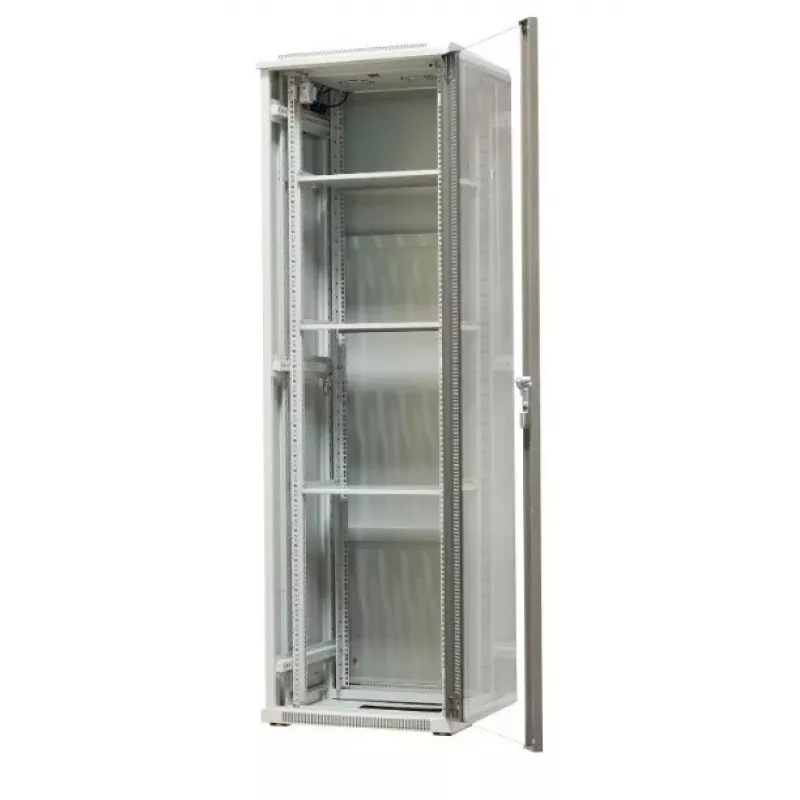

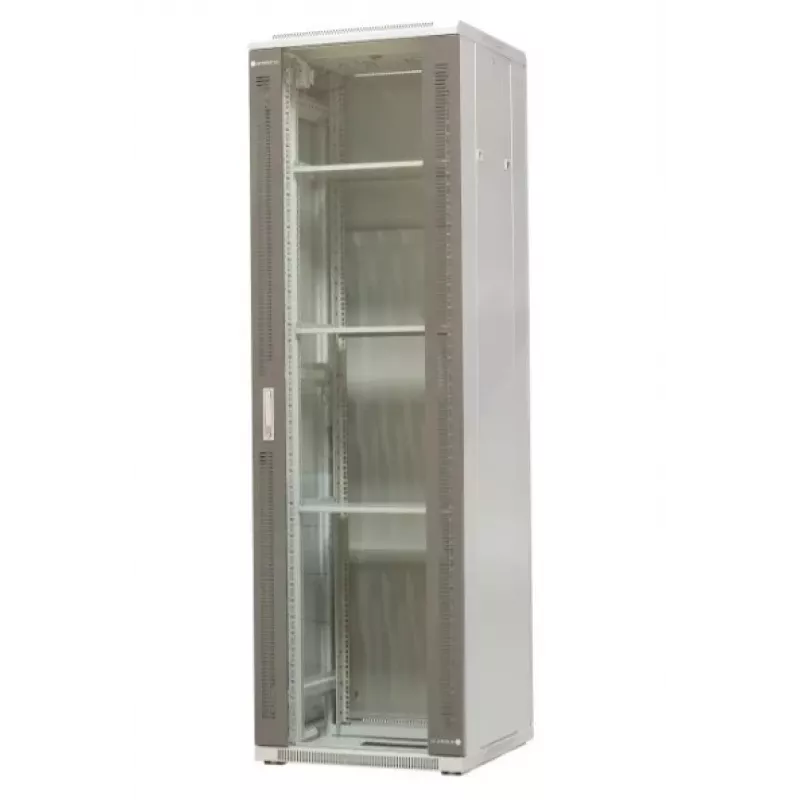

EMITER EM/SH05D-6642 EmiterNet Top 42U vrijstaande serverkast 600x600x1980mm zwart

With a static load capacity of up to 800 kg, the EMITER EM/SH05D-6642 EmiterNet Top 42U cabinet is built to anchor even the most demanding IT infrastructure. This free-standing enclosure combines a welded steel frame, lockable sheet metal/glass front door, and solid steel rear door to deliver robust security and easy access. Its 600x600x1980 mm footprint fits standard 19-inch equipment, while adjustable mounting rails and top/bottom cable entry with brush strips simplify deployment.

Overview

The EmiterNet Top series is designed for professional server rooms and network closets where reliability and accessibility are paramount. The cabinet accommodates 42U of rack-mount equipment, compliant with EIA-310-D and IEC 60297-3-100 standards. The front door features a glass insert for visual monitoring without opening the cabinet, and both front and rear doors as well as removable side panels are lockable to prevent unauthorized access. Passive ventilation ensures adequate airflow for typical installations, while the IP20 rating protects against solid objects larger than 12.5 mm.

What stands out

• Heavy-duty welded steel frame supports up to 800 kg static load
• Lockable front door with glass insert for equipment visibility
• Solid steel rear door and removable lockable side panels
• Adjustable mounting rails for flexible equipment depth
• Top and bottom cable entry with brush strips for clean cable management
• Includes leveling feet, castors, and cage nuts for immediate installation
• Black RAL 9005 finish

Technical details

• Rack capacity: 42U
• External dimensions (W x D x H): 600 x 600 x 1980 mm
• Internal width: 19-inch (EIA-310-D compliant)
• Material: High-grade steel
• Colour: Black (RAL 9005)
• IP rating: IP20
• Load capacity (static): up to 800 kg
• Front door: Single-section, sheet metal with glass insert, lockable
• Rear door: Single-section, solid steel, lockable
• Side panels: Removable, lockable
• Mounting type: Floor-standing
• Adjustable mounting rails: Yes, depth adjustable
• Cable entry: Top and bottom with brush strips
• Ventilation: Passive
• Frame construction: Welded steel frame
• Included accessories: Leveling feet, castors, cage nuts (set)
• Standard compliance: EIA-310-D, IEC 60297-3-100

Our verdict

For mission-critical environments that demand both strength and security, the EmiterNet Top 42U cabinet delivers. Its 800 kg load capacity and lockable design make it a reliable foundation for your server infrastructure.
