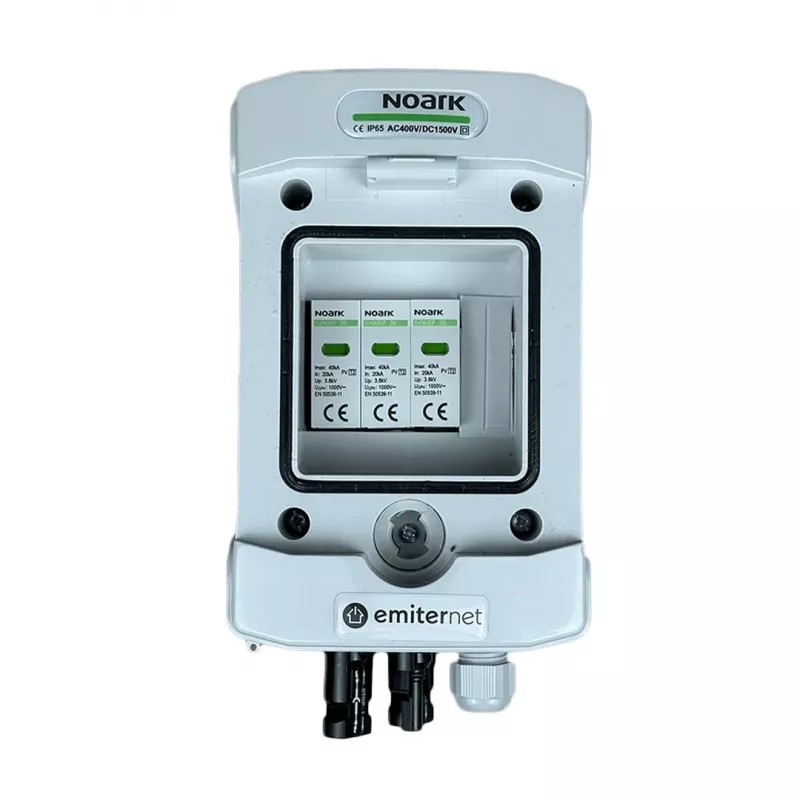

EMITER Schakelkast aangesloten DC hermetisch IP65 EMITTER met Noark 1000V type 2 DC-overspanningsbeveiliging, 1x PV-string, 1x MPPT

The EMITER Switchgear Attached DC Hermetic IP65 EMITTER is a robust and reliable solution for photovoltaic systems, integrating a Noark 1000V Type 2 DC surge arrester. Designed for outdoor use, it ensures protection against overvoltages and environmental factors, making it ideal for solar installations.

Advantages

This device combines a DC disconnector and surge protection in a single hermetic enclosure, simplifying installation and reducing costs. Its IP65 rating guarantees dust and water ingress protection, while the UV-resistant polycarbonate housing ensures long-term durability. The integrated Noark Type 2 SPD provides reliable protection against transient overvoltages.

Suitable for

• Photovoltaic systems with one PV string and one MPPT input
• Outdoor installations requiring IP65 protection
• Systems operating at up to 1000V DC

Key specifications

• Maximum System Voltage (DC): 1000 V
• Number of PV Strings (Input): 1
• Number of MPPT Inputs (Output): 1
• Surge Protective Device (SPD) Type: Type 2
• SPD Manufacturer: Noark
• SPD Max Continuous Operating Voltage (Uc): 1060 V DC
• SPD Nominal Discharge Current (In): 20 kA (8/20 µs)
• Enclosure Protection Rating: IP65
• Enclosure Material: UV-resistant Polycarbonate
• DC Disconnector/Isolator: Included
• Number of Disconnector Poles: 2-pole
• Max String Current: 20 A
• Connection Type: MC4 Compatible
• Mounting Type: Wall Mount
• Operating Temperature Range: -25°C to +60°C
• Hermetic Sealing: Yes
• Standards Compliance: IEC 61439-2, IEC 61643-31

Recommendations

For optimal performance, ensure proper grounding and follow manufacturer guidelines for installation. This device is designed for use in photovoltaic systems and should be installed by qualified personnel.
