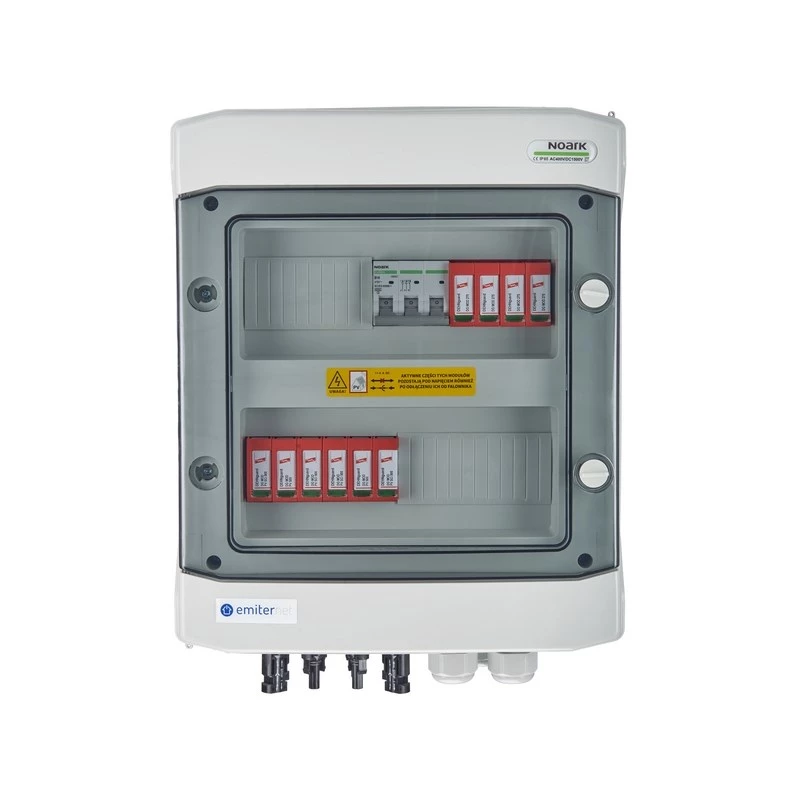

EMITER schakelkast aangesloten DCAC Hermetic IP65 EMITTER met DC-overspanningsafleider Dehn 1000V type 2, 2 x PV-string, 2 x MPPT // og. AC Dehn type 2, 16A 3-fase

The EMITER Switchgear Attached DCAC Hermetic IP65 EMITTER is a comprehensive photovoltaic (PV) switchgear box designed for efficient and safe operation of solar power systems. It integrates both DC and AC surge protection from Dehn, ensuring robust protection against overvoltages. With a hermetic IP65 enclosure, it is suitable for outdoor installation, providing reliable performance in harsh environments.

Advantages

Integrated DC and AC surge protection from Dehn, Type 2, ensures high reliability and safety. The hermetic IP65 enclosure protects against dust and water ingress, making it ideal for outdoor use. Supports up to 2 PV strings and 2 MPPT inputs, optimizing energy harvest. Easy installation with MC4 connectors for DC input and screw terminals for AC output.

Suitable for

• Photovoltaic (solar) systems requiring combined DC/AC switchgear
• Outdoor installations where weatherproofing is essential
• Systems with up to 2 PV strings and 2 MPPT inputs
• Three-phase AC connections up to 16A

Key specifications

• Product Type: PV DC/AC Switchgear Box
• DC Voltage Rating (Max): 1000 V
• Number of DC Strings: 2
• Number of MPPT Inputs: 2
• DC Surge Protection: Dehn Type 2 SPD
• AC Current Rating (Max): 16 A
• AC Phase Configuration: 3-Phase
• AC Surge Protection: Dehn Type 2 SPD
• Enclosure Protection Rating: IP65
• Enclosure Type: Hermetic, Wall-mounted
• DC Disconnector: Included (4-pole)
• AC Disconnector/Breaker: Included (3-pole main switch)
• SPD Manufacturer (DC/AC): Dehn
• Operating Temperature Range: -25°C to +60°C
• DC Input Connectors: MC4
• AC Output Terminals: Screw terminals

Recommendations

Ensure proper installation by a qualified electrician. Verify system voltage and current ratings before connection. Use appropriate cable sizes for DC and AC connections.
