EMITER schakelkast aangesloten DCAC hermetisch IP65 EMITTER met Noark 1000V Type 1+2 DC overspanningsafleider, 1 x PV-string, 1 x MPPT // en AC Noark Type 1+2, 10A 1-fase

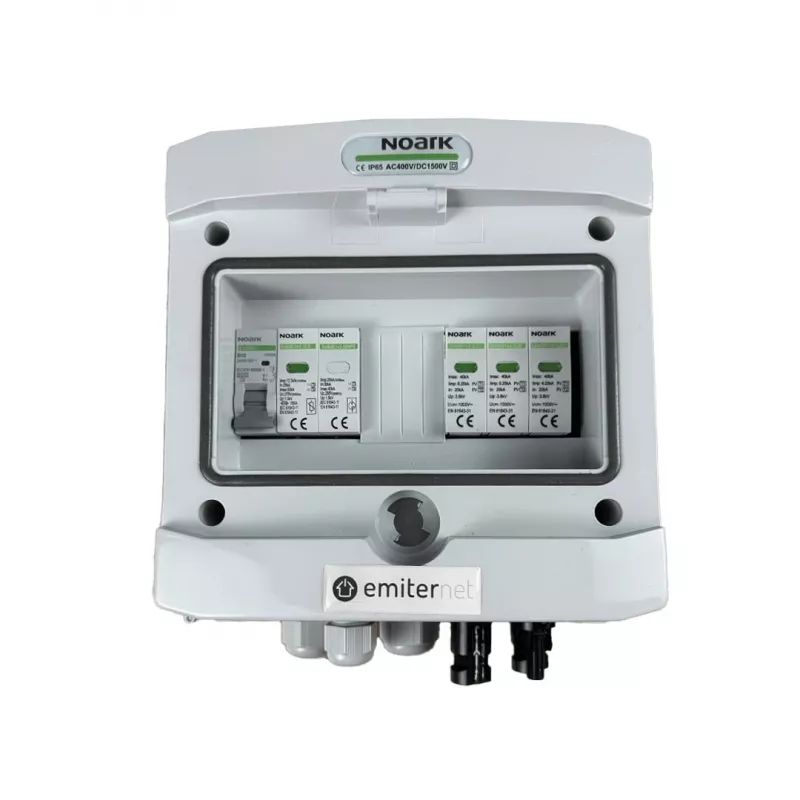

The EMITER Switchgear Attached DCAC Hermetic IP65 EMITTER is a high-performance PV combiner box designed for solar photovoltaic systems. It integrates both DC and AC surge protection with Noark Type 1+2 SPDs, ensuring robust protection against lightning and surges. With a hermetic IP65 enclosure, it is suitable for outdoor installations, providing reliable operation in harsh environments.

Advantages

This combiner box offers comprehensive surge protection for both DC and AC sides, simplifying installation and reducing the need for separate components. The hermetic IP65 enclosure ensures dust and water ingress protection, making it ideal for rooftop or ground-mounted solar arrays. The integrated disconnectors enhance safety during maintenance.

Suitable for

• Solar photovoltaic systems with single MPPT and one PV string
• Outdoor installations requiring IP65 protection
• Systems needing Type 1+2 surge protection for both DC and AC

Key specifications

• Product Type: PV DC/AC Combiner Box
• Enclosure IP Rating: IP65
• Max DC System Voltage: 1000 V
• Number of PV Strings (DC Input): 1
• Number of MPPT Inputs: 1
• DC Surge Protection Device (SPD) Type: Type 1+2
• DC SPD Manufacturer: Noark
• AC Surge Protection Device (SPD) Type: Type 1+2
• AC SPD Manufacturer: Noark
• Max AC Output Current: 10 A
• AC Phase Configuration: Single-Phase (1-F)
• DC Disconnector Included: Yes
• AC Disconnector/Breaker Included: Yes
• Enclosure Sealing: Hermetic
• Application: Solar Photovoltaic Systems
• Mounting Type: Wall-Mountable

Recommendations

For optimal performance, ensure proper grounding and follow local electrical codes. This combiner box is designed for use with Noark surge arresters; replacement parts should be sourced from the same manufacturer.
