Equip 135426 patchpanel 1HE

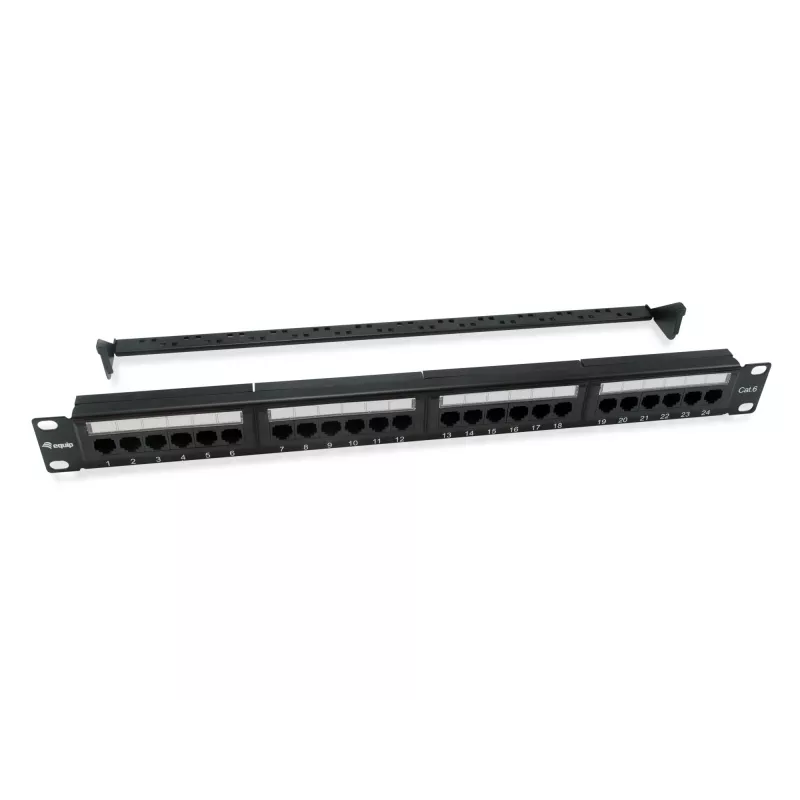

The equip® Patch Panel 1U (model 135426) is a 19" rack-mount network distribution unit designed to organize and simplify structured cabling. Constructed from steel and ABS synthetics, the black patch panel provides 24 RJ45 ports and supports Cat6 cabling with AWG 22–26 termination. Each port is numbered to assist identification and it integrates a basic cable management system for improved routing and strain relief.

Advantages

This 1U patch panel offers a compact, standardized 19" form factor suitable for rack mounting, clear port numbering for easy identification, and compatibility with both LSA and 110 termination standards. The integrated cable management helps maintain neat cable runs while the steel and ABS construction ensures durability for professional installations.

Suitable for

• Organising network connections in server rooms and telecom racks
• Cat6 structured cabling installations
• Small to medium enterprise network closets
• Patch cord and cabling accessory setups with equip® components

Key specifications

• Brand: EQUIP
• Model / MPN: 135426
• Ports: 24 × RJ45
• Standards: LSA and 110 compatible
• Cable category: Cat6
• AWG support: 22–26
• Material: Steel + ABS synthetics
• Colour: Black
• Form factor: 19" 1U rack-mount
• Dimensions (W×H×D): 482.6 × 44.5 × 85.3 mm
• Weight: 0.631 kg
• EAN: 4015867223079

How to use

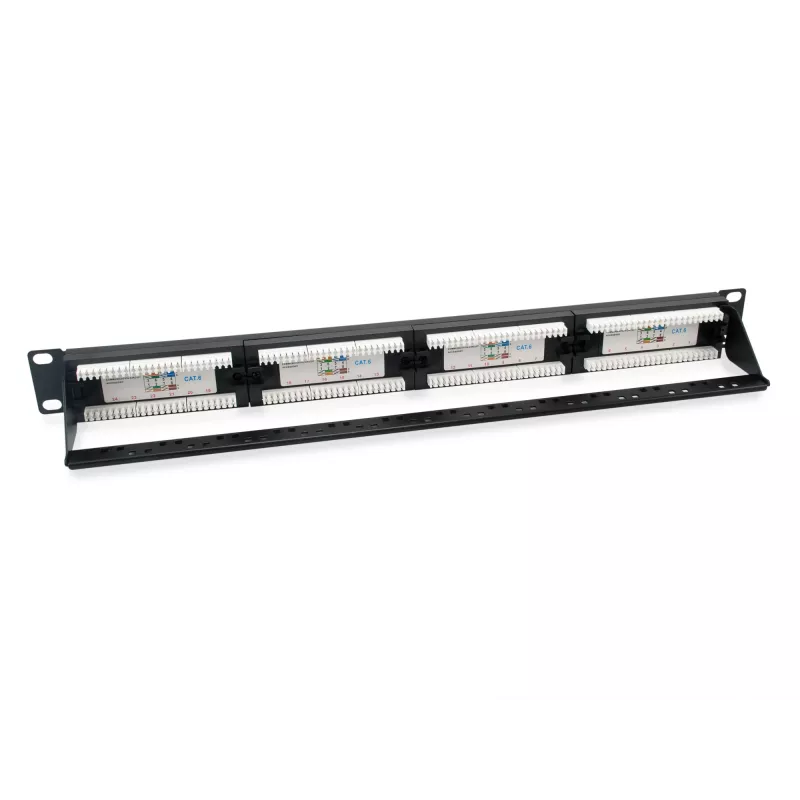

Mount the patch panel in a 19" rack occupying 1U of height. Terminate Cat6 cables to the rear LSA or 110 IDC blocks following the colour code for correct pair alignment, and use the numbered front ports to connect patch cords. Route cabling through the integrated management area to provide strain relief and maintain order; secure cables with suitable ties or accessories where necessary.

Recommendations

For best results, use equip® patch cords and cabling accessories to ensure full compatibility and reliable performance; follow Cat6 installation guidelines and test each link after termination.
