Equip 24-poorts Cat.6 afgeschermd patchpanel, lichtgrijs

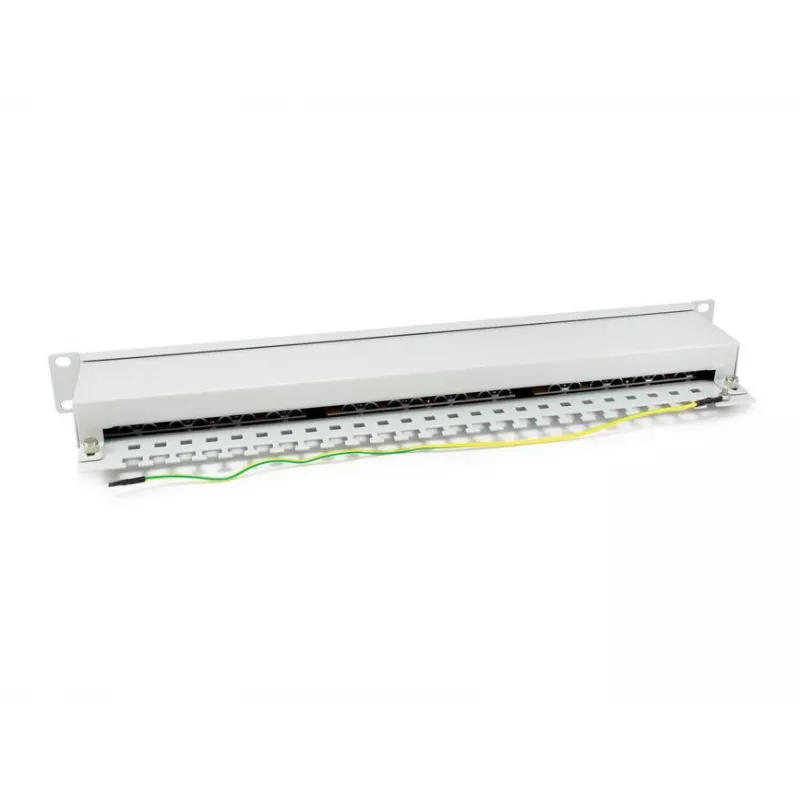

The Equip 24-Port Cat.6 Shielded Patch Panel in light grey is a 19" 1U rack-mount network distribution unit designed for organizing and protecting shielded Ethernet connections. It provides 24 shielded RJ45 ports with port numbering and supports 10/100/1000Base-T(X) Ethernet interfaces with a maximum data rate of 1000 Mbit/s. Constructed from durable metal and compatible with LSA and 110 termination standards, the panel includes an integrated cable management system for improved routing and strain relief.

Advantages

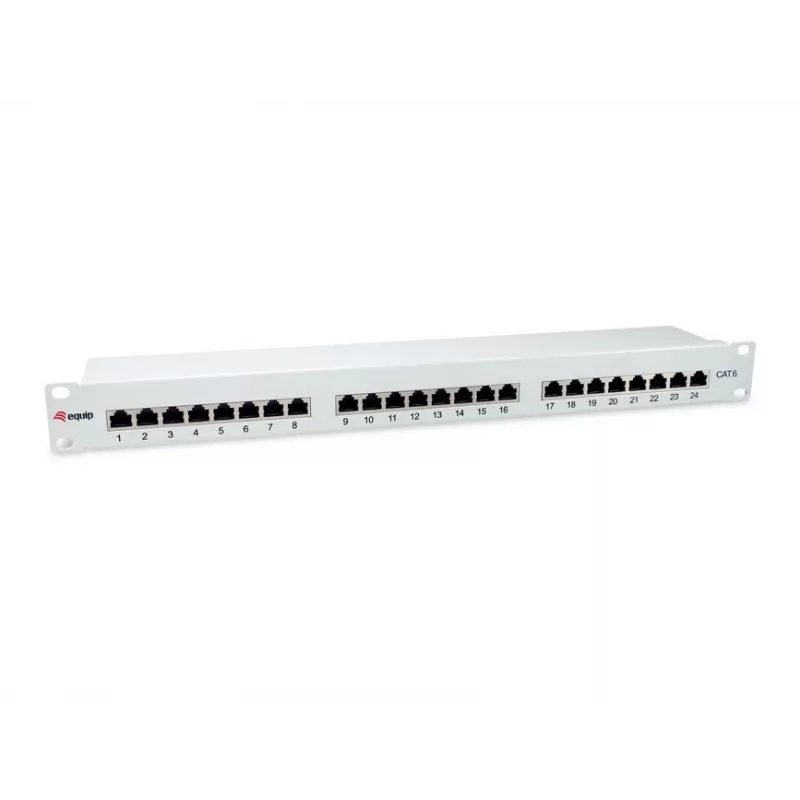

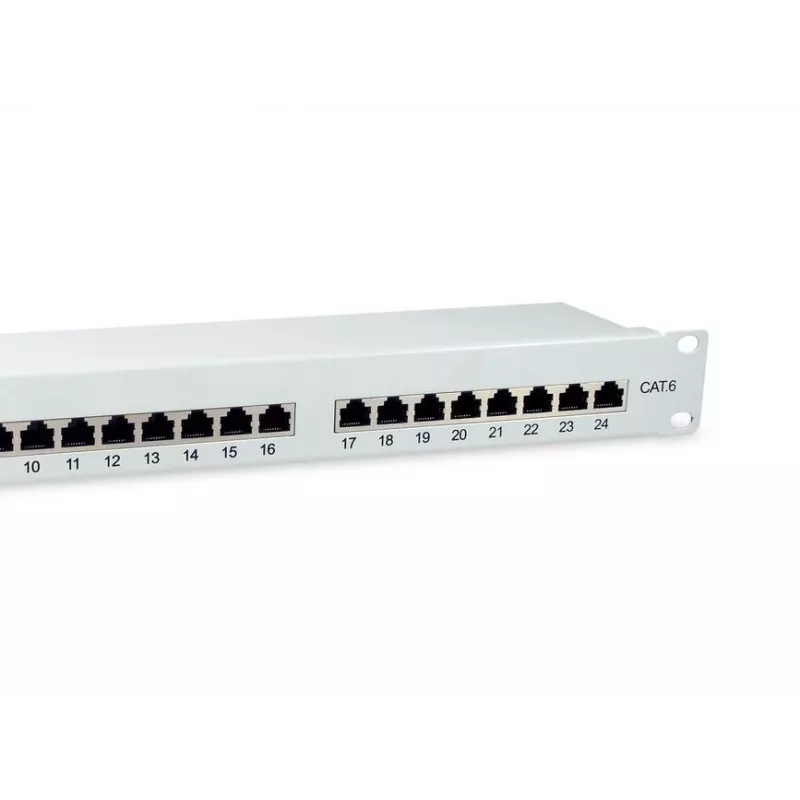

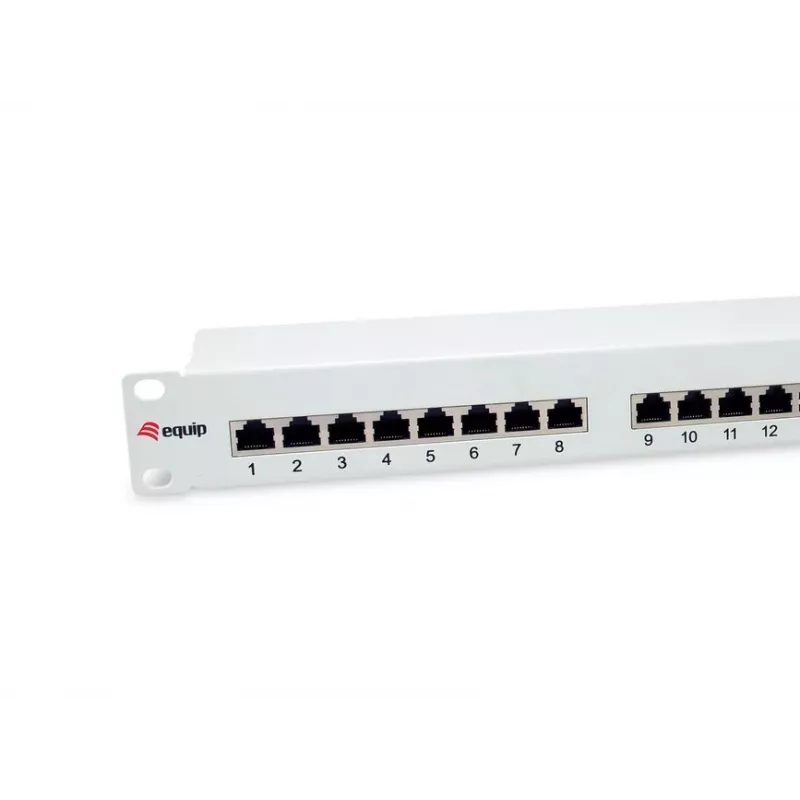

This shielded Cat.6 patch panel offers 24 numbered RJ45 ports for clear identification and orderly cable placement. Its metal housing and compatibility with both LSA and 110 termination standards ensure reliable mechanical and electrical connections. The integrated cable management system supports proper routing and strain relief, and the unit is suitable for standard 19" 1U rack installation.

Suitable for

• Structured cabling in small and medium-sized networks
• Shielded Cat.6 installations requiring RJ45 port identification
• Rack-mounted server rooms and network cabinets
• 10/100/1000Base-T(X) Ethernet connections

Key specifications

• Ports quantity: 24 shielded RJ45 ports
• Data rate: up to 1000 Mbit/s (Gigabit Ethernet)
• Standards: LSA and 110 termination compatible
• Form factor: 19" 1U rack-mount
• Material: metal housing
• Dimensions (W×H×D): 482.6 × 44.5 × 110.5 mm
• Weight: 1.5 kg
• Product colour: Light grey
• Brand/MPN/EAN: EQUIP / 326325 / 4015867207420

How to use

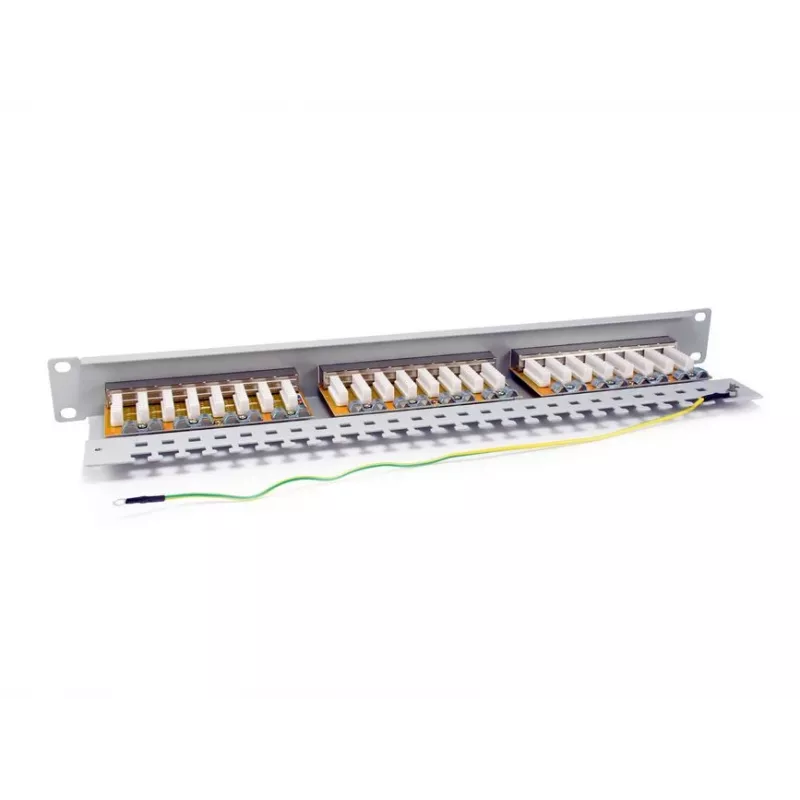

Mount the patch panel into a standard 19" rack occupying 1U of space. Terminate shielded Cat.6 cables on the rear using either LSA or 110 termination tools according to the chosen wiring scheme. Route cables through the integrated cable management system to maintain bend radius and provide strain relief. Connect shielded patch cords to the front RJ45 ports for device links, ensuring shields are properly grounded where required.

Recommendations

Use equip® shielded patch cords and compatible cabling accessories to maintain shielding continuity and achieve optimal performance. Verify grounding of the rack and cable shields, and follow Cat.6 installation best practices for cable length, bend radius, and termination to ensure reliable Gigabit Ethernet operation.
