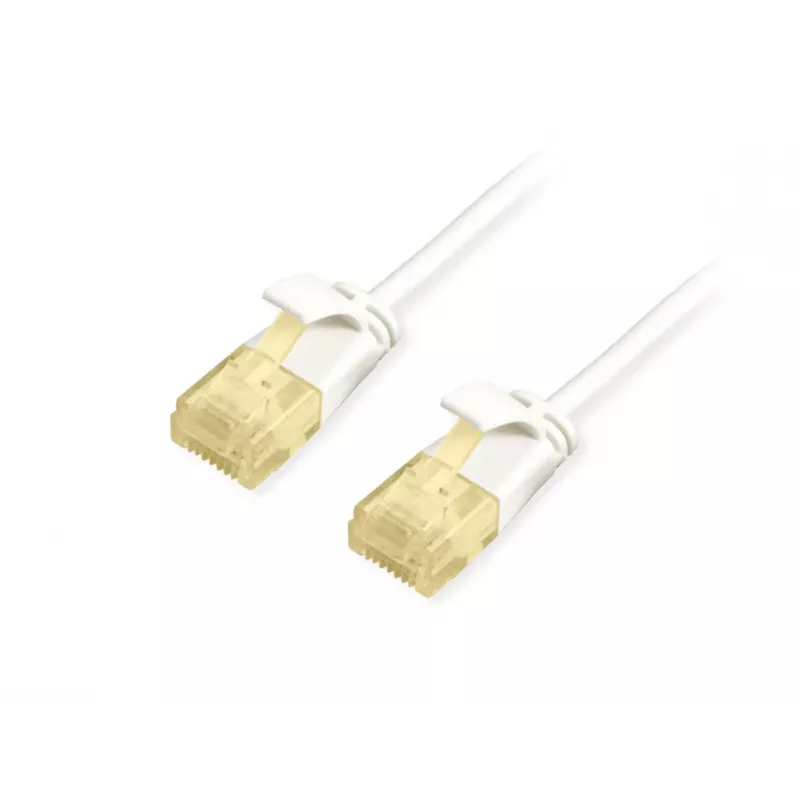

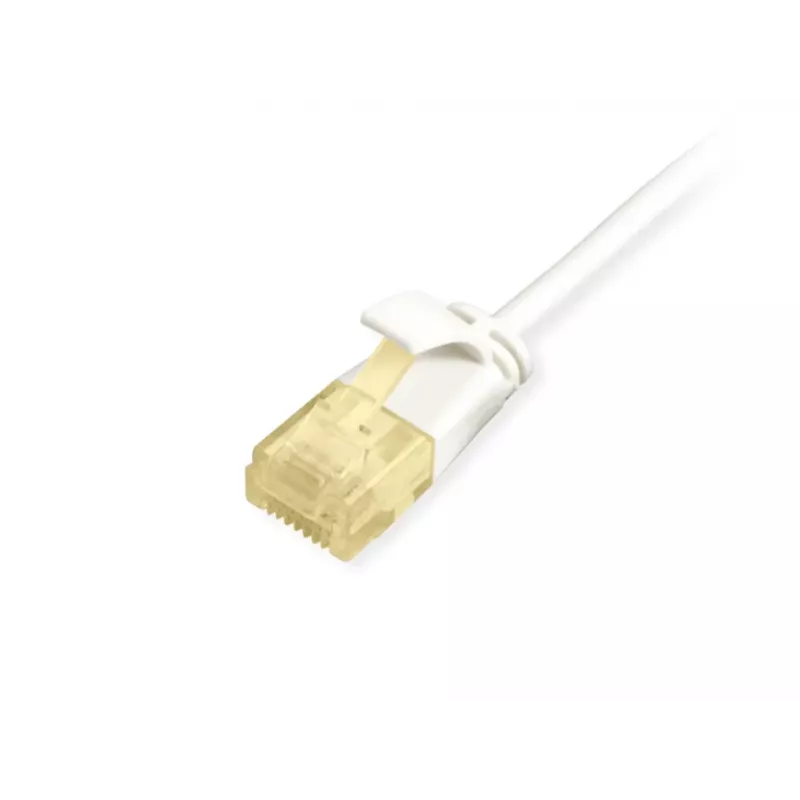

Equip Cat.6A U/UTP slanke patchkabel 0,15 m wit 10000 Mbit/s

The Equip Cat.6A U/UTP Slim Patch Cable 0.15m in white is a compact Ethernet patch cable designed for high-density network installations. With a reduced diameter (32 AWG) and unshielded twisted pair construction, it supports 10 Gigabit Ethernet at frequencies up to 500 MHz while allowing improved cable management and airflow in racks and patch panels.

Advantages

The slim 32 AWG design reduces cable bulk and helps organize tight spaces without sacrificing performance. Stranded bare copper conductors provide flexibility for frequent reconfigurations, while molded boots with strain relief protect the RJ-45 connectors. The cable is RoHS compliant and uses Low Smoke Zero Halogen (LSZH/LSOH) materials suitable for installations where reduced smoke and toxic emissions are required.

Suitable for

• Data centers and server racks with high cable density
• Enterprise LANs requiring 10GBase-T connections
• Wall-mounted patch panels and under-desk routing in offices
• Power over Ethernet (PoE and PoE+) devices

Key specifications

• Standard: Cat6a U/UTP (unshielded)
• Conductor: stranded bare copper, 32 AWG
• Bandwidth: up to 500 MHz
• Data rate: up to 10 Gbit/s (10000 Mbit/s)
• Length: 0.15 m
• Connectors: RJ-45 straight male — both ends
• Cabling technology: 10GBase-T
• Material: LSZH/LSOH jacket
• Compliance: ISO/IEC 11801, EN 50173, RoHS
• Colour: White

How to use

Connect one RJ-45 plug to a network port on a switch, router or patch panel and the other RJ-45 plug to the target device or adjacent panel port. Ensure connectors are fully seated until the latch clicks. Use the short 0.15 m length for direct patching between closely spaced ports to minimize cable clutter and maintain proper bend radius to avoid damaging the conductors.

Recommendations

For optimal performance, use this Cat.6A U/UTP slim patch cable in low to moderate electromagnetic interference environments and avoid routing parallel to strong power sources. Replace any cable showing visible damage to the jacket or connectors; for longer runs or high-EMI areas consider shielded cabling.
