Equip Keystone-systeem opbouwmontagebox 761302

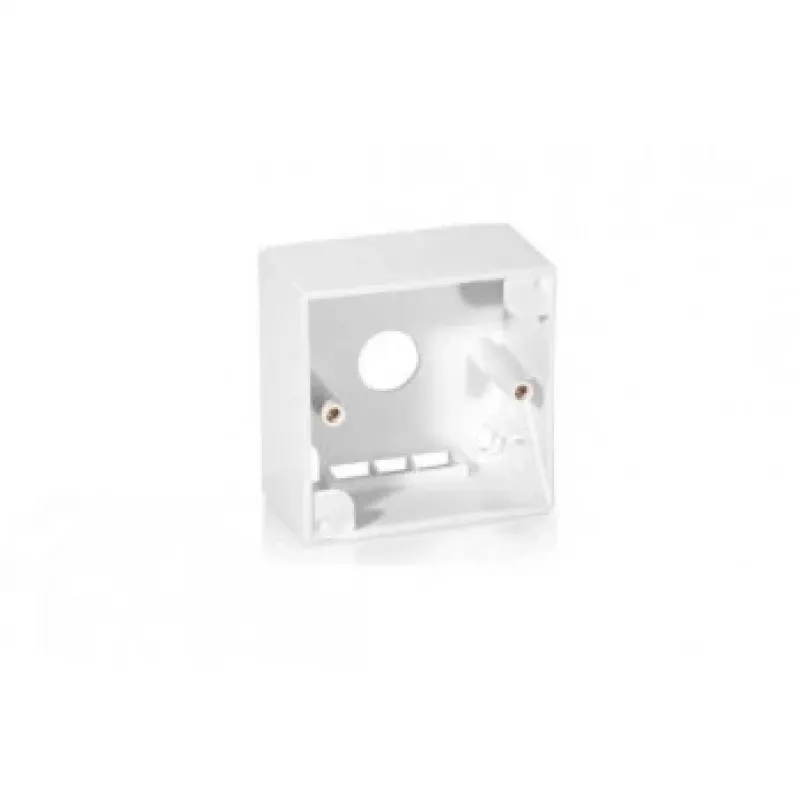

The solid and sturdy constructed Equip Keystone System Surface Mounting Back Box (model 761302) is designed for easy installation of keystone jacks and organized cable deployments. With compact dimensions of 80 mm × 80 mm × 42 mm, this back box provides a secure mounting point compatible with the Equip faceplate series 761301 and 761303, suitable for both residential and commercial structured cabling systems.

Advantages

The back box is made with a robust design that ensures stable mounting of keystone modules and protection of connections. Its standard dimensions allow compatibility with common faceplates and keystone jacks, while its compact size supports neat installation in limited spaces. The unit simplifies cable management and offers a reliable, fixed housing for network or telecom outlets.

Suitable for

• Installation of keystone jacks in surface-mounted network or telephone outlets
• Use with equip® faceplates 761301 and 761303
• Residential structured cabling and small office network points
• Commercial wall-mounted patch points where a compact back box is required

Key specifications

• Brand: EQUIP
• Model / MPN: 761302
• EAN: 4015867138946
• Type: Keystone system surface mounting back box
• Dimensions: 80 mm × 80 mm × 42 mm
• Compatible faceplates: equip® 761301, 761303
• Package dimensions: 95 mm × 89 mm × 245 mm

How to use

Mount the back box to the surface using appropriate screws and anchors for the wall material. Insert the keystone jack into the front aperture and secure it per the jack manufacturer’s instructions. Connect the cables to the keystone module, then attach the compatible faceplate (761301 or 761303) to complete the outlet. Ensure cable routing and strain relief are applied as needed for a stable installation.

Recommendations

For best results, use this back box with Equip keystone jacks and the indicated equip® faceplates; verify wall mounting anchors and cable bend radius to maintain reliable network performance.
