1-poorts Cat.6 opbouwbehuizing Equip 235213

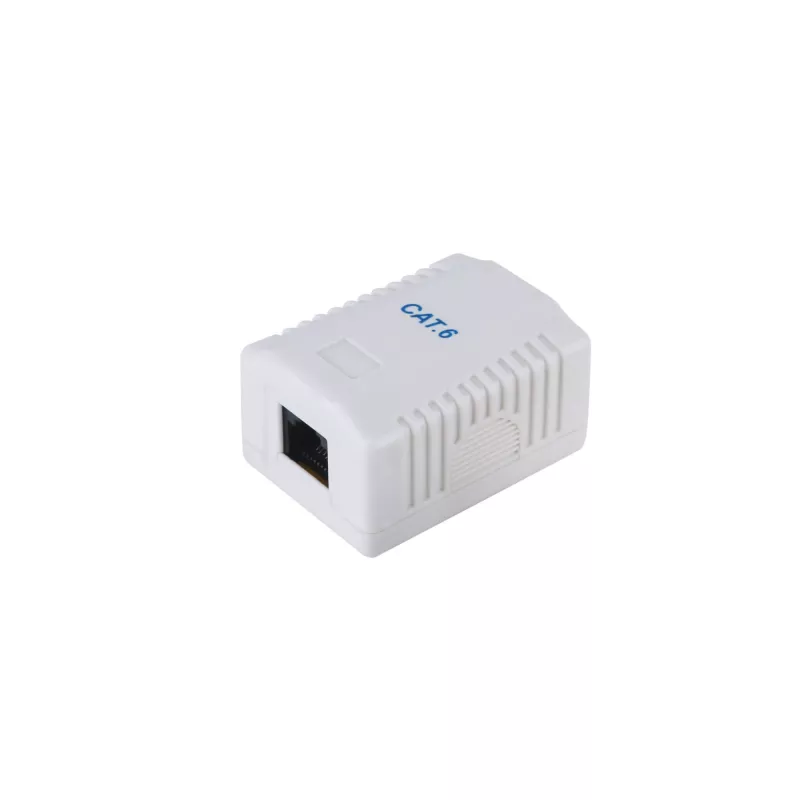

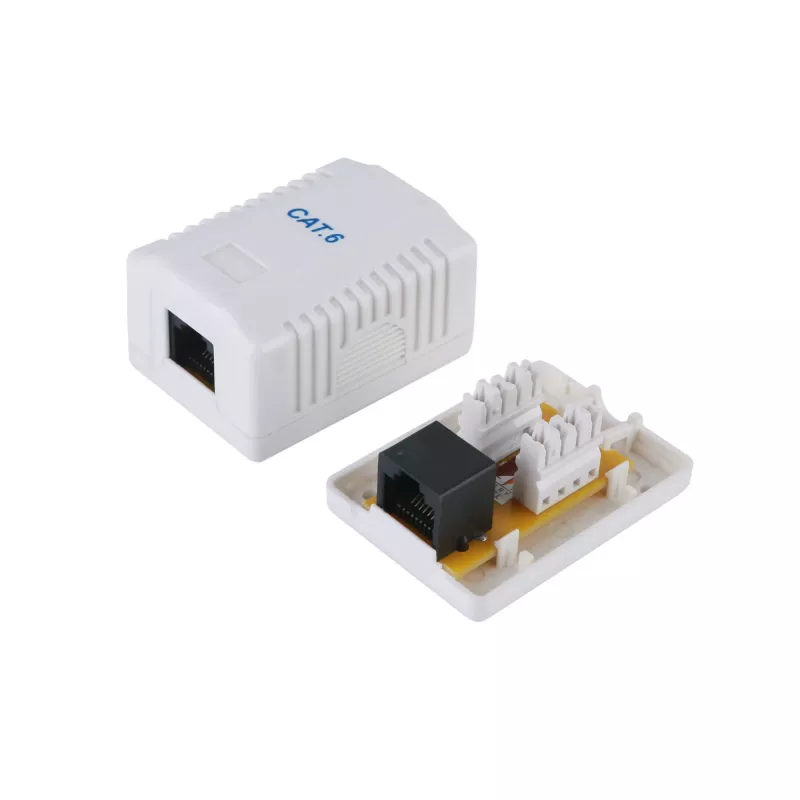

The Equip 1-Port Cat.6 Surface Mount Box (model 235213) is a compact enclosure designed to house a single RJ45 Cat.6 outlet for surface-mounted installations. With dimensions of 39 mm × 29.5 mm × 54 mm, the unit provides a neat, low-profile solution for residential or commercial cabling where a single Cat.6 connection is required. The product is supplied with one piece of adhesive tape for tool-free mounting.

Advantages

The surface mount box supports a Cat.6 RJ45 connection and is compact for unobtrusive placement. Supplied adhesive tape enables quick, tool-free installation. Constructed for standard Cat.6 wiring, the box is suitable for reliable high-speed data transmission when used with compliant cabling.

Suitable for (tasks / use cases)

• Adding a single Cat.6 network outlet on walls or flat surfaces
• Home networking where one RJ45 port is needed
• Small offices or commercial spaces requiring an additional Cat.6 connection
• Temporary or permanent installations where surface mounting is preferred

Key specifications

• Brand: EQUIP
• Model / MPN: 235213
• EAN: 4015867206911
• Port: 1 × RJ45 (Cat.6)
• Dimensions (W × H × D): 39 mm × 29.5 mm × 54 mm
• Mounting: surface mount, includes 1 adhesive tape piece
• Country of origin: China

How to use

Prepare the Cat.6 cable and terminate it with an RJ45 connector or keystone insert as required. Clean and dry the mounting surface, position the surface mount box where the outlet is needed, and apply the supplied adhesive tape to secure the box. If preferred, the box can be fixed with screws (not supplied) through the base after removing the adhesive. Insert the RJ45 jack into the port and test the connection with appropriate network testing tools.

Recommendations

For reliable Cat.6 performance, use compliant Cat.6 cable and ensure terminations follow the T568A or T568B wiring standard. For long-term or high-traffic installations, consider mechanical fixing in addition to the supplied adhesive tape to ensure a secure mount.
