Equip Keystone-systeem opbouw-inbouwdoos

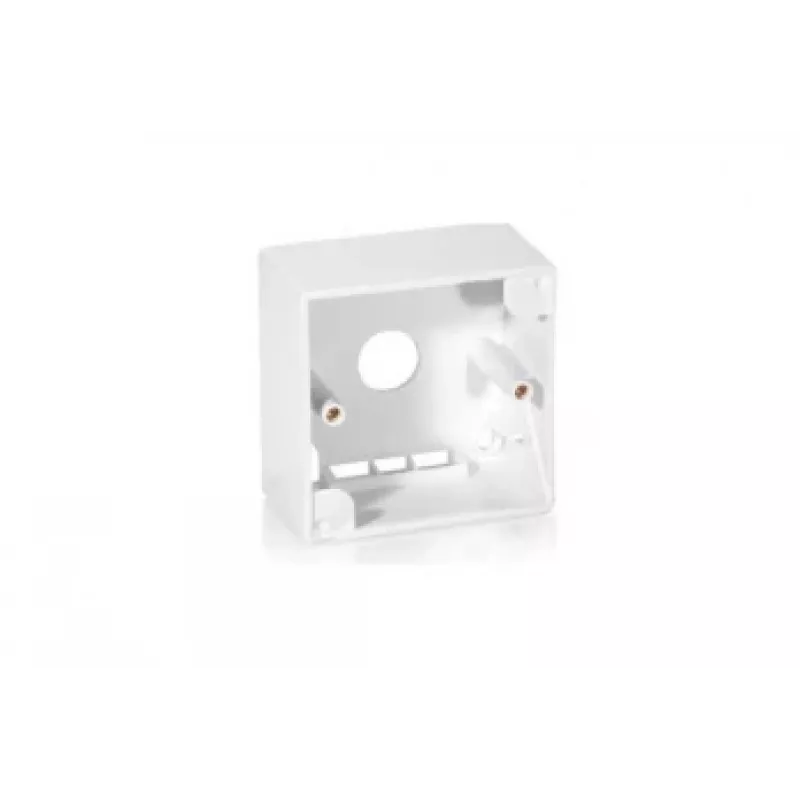

The equip® Surface Mounting Back Box (model 760302) is a compact, solidly constructed enclosure designed to house keystone jacks and organise network connections on surfaces. With external dimensions of 80 mm x 80 mm x 42 mm, it provides a durable mounting solution compatible with equip® faceplate series 760301 and 760303.

Advantages

The back box offers sturdy construction for secure cable deployments and keeps keystone modules protected and neatly arranged. Its standard dimensions make it easy to pair with common faceplates and outlet modules, ensuring compatibility and straightforward installation in surface-mount scenarios.

Suitable for

• Housing keystone jacks for Ethernet, phone or audio connections
• Surface mounting on walls, panels or furniture
• Small network or patching points in offices and home environments

Key specifications

• Brand: EQUIP
• Model / MPN: 760302
• EAN: 4015867138953
• Dimensions: 80 mm x 80 mm x 42 mm
• Package dimensions: 95 mm x 89 mm x 245 mm

How to use

Mount the back box on the desired surface using suitable screws or adhesive, align the keystone jack(s) with the opening and snap them into place. Attach the compatible equip® faceplate (760301 or 760303) over the installed jacks to finish the installation. Route and secure cables inside the box to prevent strain on connectors.

Recommendations

For reliable performance, use keystone jacks and faceplates that match standard Keystone dimensions; avoid over-tightening mounting screws and ensure cables have sufficient slack to prevent connector strain.
