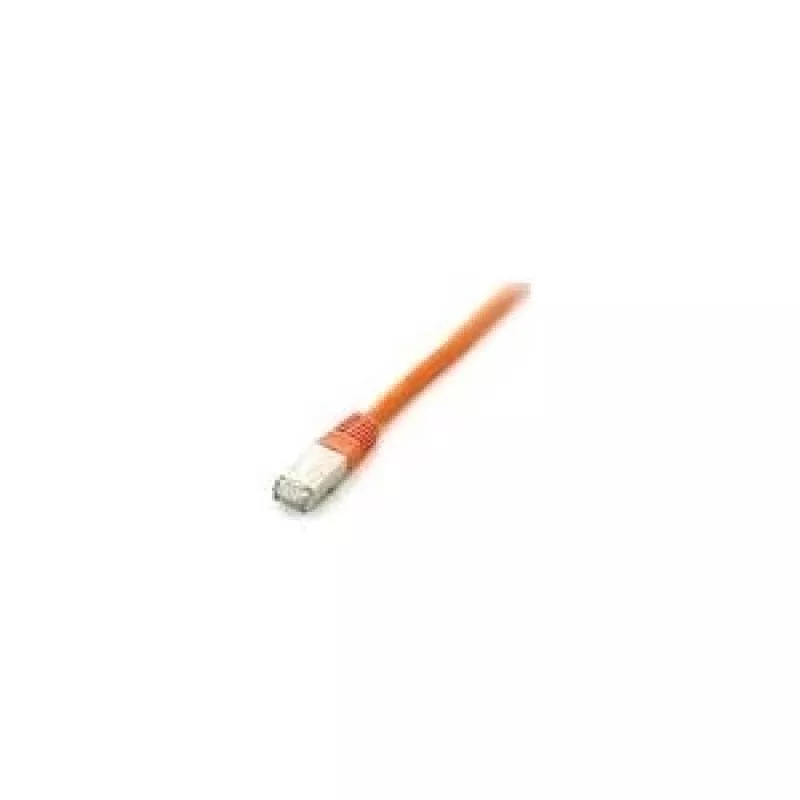

equip S/FTP Cat.6a patchkabel, 0,25m, oranje 605573

Short patch cables often compromise on shielding or bandwidth, but this equip 0.25m S/FTP Cat.6a cable delivers full 10 Gigabit performance in a compact, LSZH-jacketed design. The orange jacket stands out in dense racks, while the individually foiled pairs and overall braid screen eliminate alien crosstalk for error-free transmission at 500 MHz.

Highlights

• Cat.6a performance up to 500 MHz, supporting 10GBASE-T Ethernet
• S/FTP shielding: each pair foiled (PiMF) plus overall braid for maximum noise immunity
• 100% bare copper stranded conductors (AWG 26/7) for reliable signal integrity
• Gold-plated RJ45 connectors (50µ) with snagless molded boots
• LSZH (Low Smoke Zero Halogen) jacket for safety in enclosed spaces
• Compact 0.25m length ideal for patching between adjacent ports

In daily use

This cable excels in high-density server rooms and structured cabling systems where short, high-performance links are needed. The snagless boots protect the locking tab during frequent moves, and the orange colour allows instant identification of critical connections. The LSZH jacket emits low smoke and no halogen gases in case of fire, meeting strict safety requirements.

Full specifications

• Length: 0.25 m
• Category: Cat.6a (Class EA)
• Shielding: S/FTP (Screened Foiled Twisted Pair, PiMF)
• Bandwidth: 500 MHz
• Data rate: 10 Gigabit Ethernet (10GBASE-T)
• Connectors: RJ45 male to RJ45 male, gold-plated (50µ)
• Conductor: 100% bare copper, AWG 26/7 stranded
• Jacket: LSZH (Low Smoke Zero Halogen)
• Outer diameter: approx. 6.0 mm
• Wiring: TIA/EIA 568B
• Boot: snagless, molded
• Operating temperature: -20°C to 60°C
• Compliance: RoHS, REACH, CE

Final note

For professionals who demand full Cat.6a performance even in the shortest patch runs, this equip cable offers the shielding, bandwidth, and safety features needed in modern networks.
