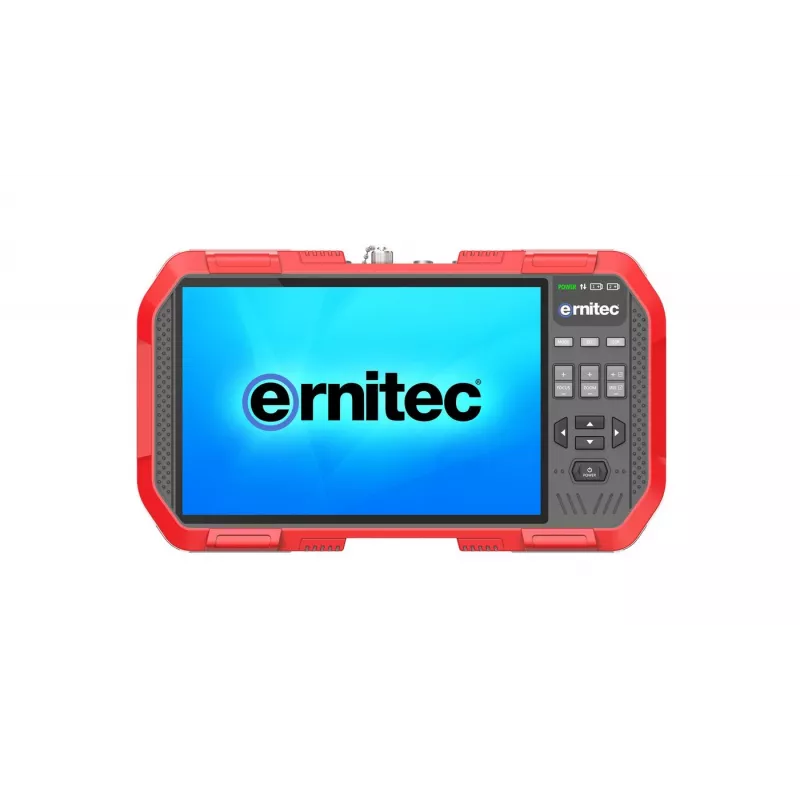

Ernitec 0070-24107-TESTER bewakingsmonitor CCTV-testmonitor 17,8 cm (7 inch) 1920 x 1200 pixels

The Ernitec 0070-24107-TESTER is a portable 7" CCTV test monitor with a 1920x1200 high-resolution display designed for testing and commissioning surveillance cameras and video systems. It supports a wide range of camera interfaces and diagnostic functions including Wi‑Fi, IPC, HDCVI, TVI, AHD and CVBS video formats, TDR, analog video generation, DDM, data monitoring and optical power measurement. The unit offers PoE+ input and provides DC12V/2A and DC5V/2A outputs, and is CE/FCC certified.

Advantages

The compact 7-inch monitor combines a high-resolution 1920x1200 panel with a built-in lithium battery for extended field use and easy portability. It supports multiple video standards and integrated test functions (TDR, analog video generator, DDM, OPM), enabling technicians to diagnose connectivity, signal quality and power delivery on site. PoE+ compatibility simplifies testing of powered cameras, while DC outputs allow powering external devices. The device is lightweight and can be mounted on an armband for hands-free operation during installations.

Suitable for

• Field testing and commissioning of CCTV cameras and recorders

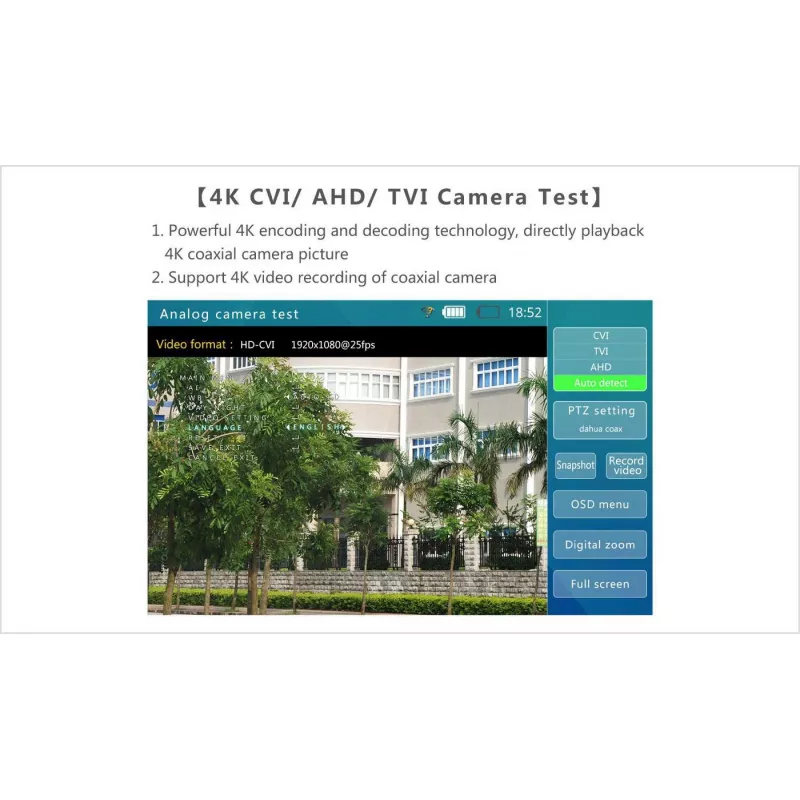

• On-site verification of video signal formats (IPC, HDCVI, TVI, AHD, CVBS)

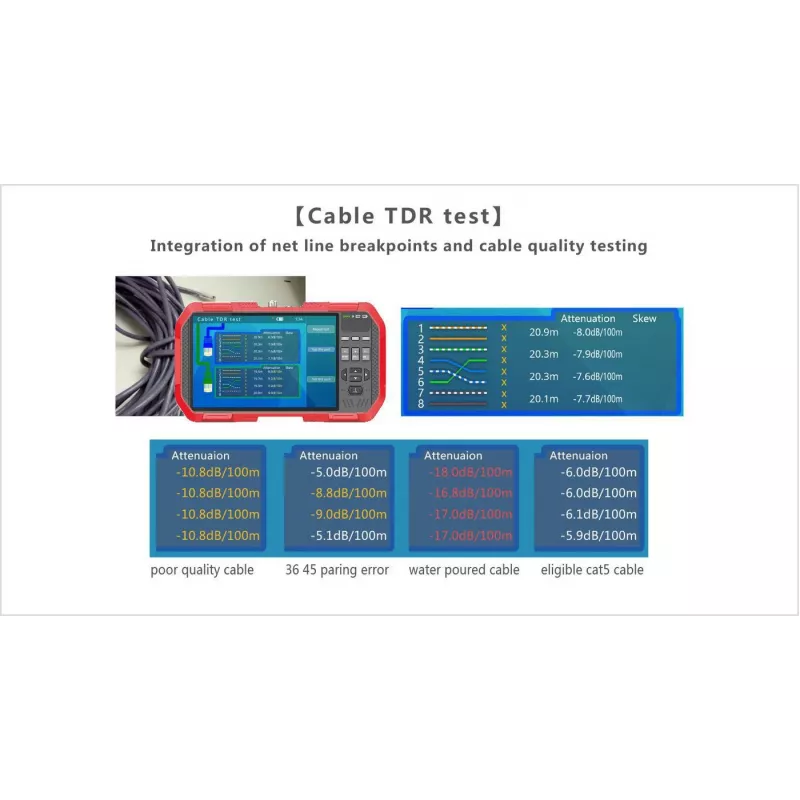

• Network and cable diagnostics using TDR and data monitoring
• Testing PoE+ power delivery and powering cameras via DC12V/2A or DC5V/2A

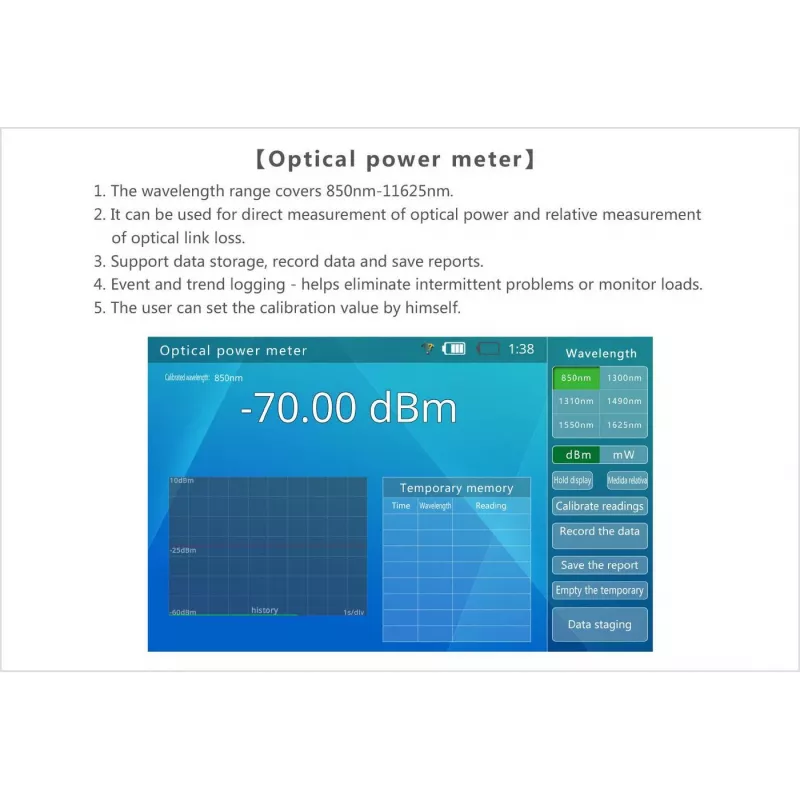

• Optical power measurement and fiber link checks with OPM

Key specifications

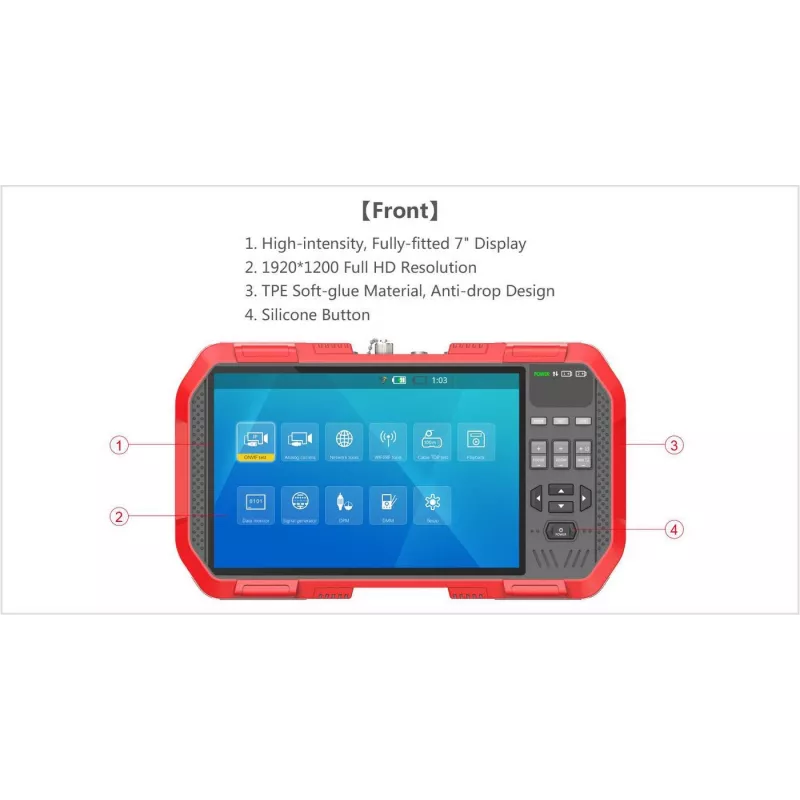

• Display: 7" IPS, 1920 x 1200 resolution
• Supported video formats: Wi‑Fi, IPC, HDCVI, TVI, AHD, CVBS
• Test functions: TDR, analog video generator, DDM, data monitor, OPM

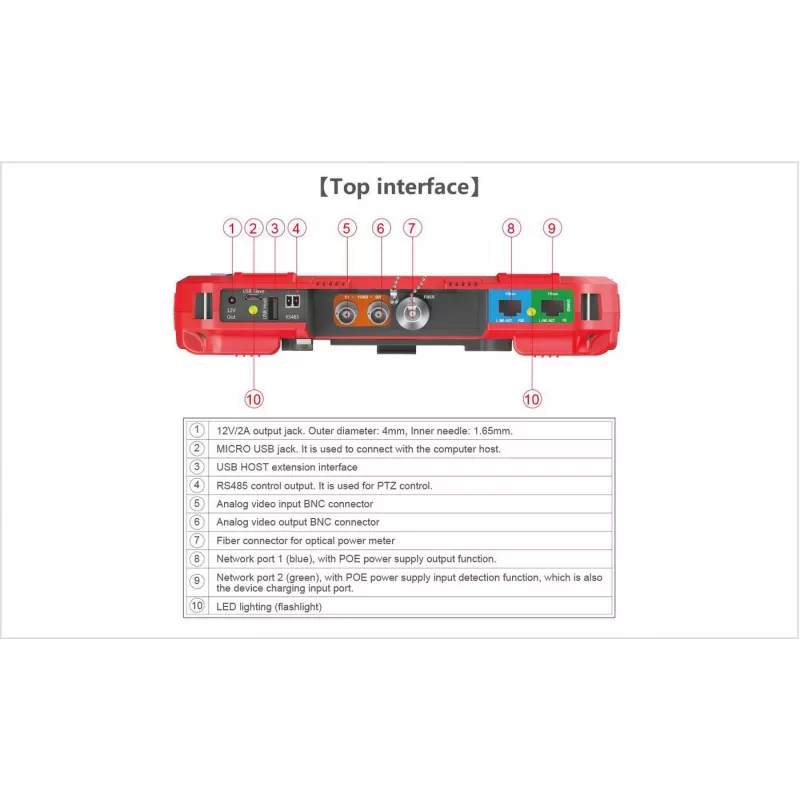

• Power: PoE+ input; DC outputs DC12V/2A and DC5V/2A
• Battery: built-in lithium battery for portable operation
• Certifications: CE, FCC
• Brand/Model: ERNITEC 0070-24107-TESTER; EAN 5715063290668

How to use

Charge the built-in lithium battery before use or connect the unit to PoE+ for power. Select the required video input format via the monitor menu to view live camera feeds or use the analog video generator to output test signals. Use the TDR function to test cable integrity and locate faults; employ the data monitor and DDM for link diagnostics. Connect fiber for optical power measurement with the OPM function. Use the DC12V/2A or DC5V/2A outputs to power cameras or peripheral devices when needed. Mount the monitor on the supplied armband or hold it handheld while performing inspections.

Recommendations

Use the monitor in accordance with local safety regulations. For accurate optical power readings, ensure fiber connectors are clean before measurement. When testing PoE devices, verify PoE+ compatibility to avoid underpowered devices. Store and charge the lithium battery at moderate temperatures and avoid prolonged exposure to extreme heat or moisture.
