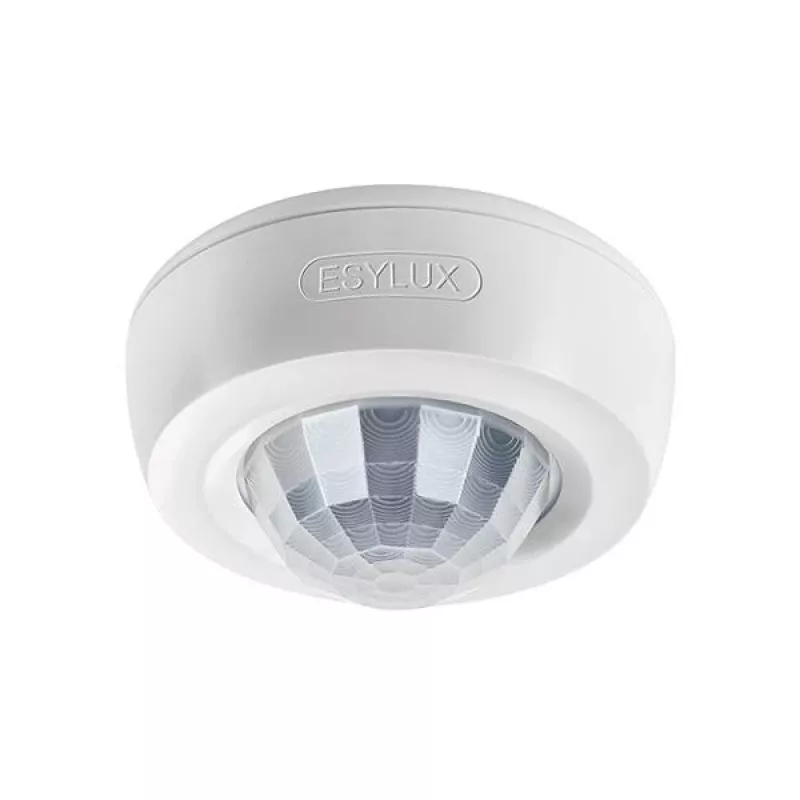

ESYLUX plafond-aanwezigheidsmelder 360° opbouwmontage 24m nuldrempelschakeling PD 360/24

The ESYLUX PD 360/24 is a high-quality ceiling presence detector designed for professional lighting control in commercial and industrial environments. Featuring a 360° detection angle and a large detection range of up to 24 meters in diameter (at 3 m mounting height), this surface-mounted PIR sensor ensures reliable presence detection and automatic lighting control. The integrated zero-crossing switching technology extends the lifespan of connected loads by switching at the zero point of the AC voltage. With an IP54 rating, it is suitable for indoor and outdoor use in demanding conditions.

Advantages

Energy-efficient automatic lighting control reduces electricity costs. Zero-crossing switching protects relays and connected devices. Large detection area minimizes the number of devices needed. Robust IP54 housing ensures durability in harsh environments. Simple surface mounting saves installation time.

Suitable for

• Office buildings
• Conference rooms
• Classrooms
• Corridors and stairwells
• Warehouses and industrial halls
• Showrooms and retail spaces

Key specifications

• Detection angle: 360°
• Detection range: Ø 24 m (at 3 m mounting height)
• Mounting type: Surface-mounted (ceiling)
• Operating voltage: 230 V AC, 50 Hz
• Switching capacity: 2300 W (resistive), 1150 VA (fluorescent), 600 W (LED)
• Power consumption: approx. 0.5 W
• Protection class: II
• IP rating: IP54
• Ambient temperature: -25 °C to +50 °C
• Time setting: 10 sec - 60 min
• Brightness threshold: 5 - 2000 Lux
• Sensor type: Passive Infrared (PIR)
• Zero-crossing switching: Yes
• Colour: White (RAL 9010)
• Material: UV-stabilised polycarbonate

Recommendations

For optimal performance, mount the detector at a height of 2.5 to 3.5 meters. Ensure the sensor has a clear view of the area to be monitored. This device is ideal for new installations or retrofitting existing lighting systems to improve energy efficiency.
