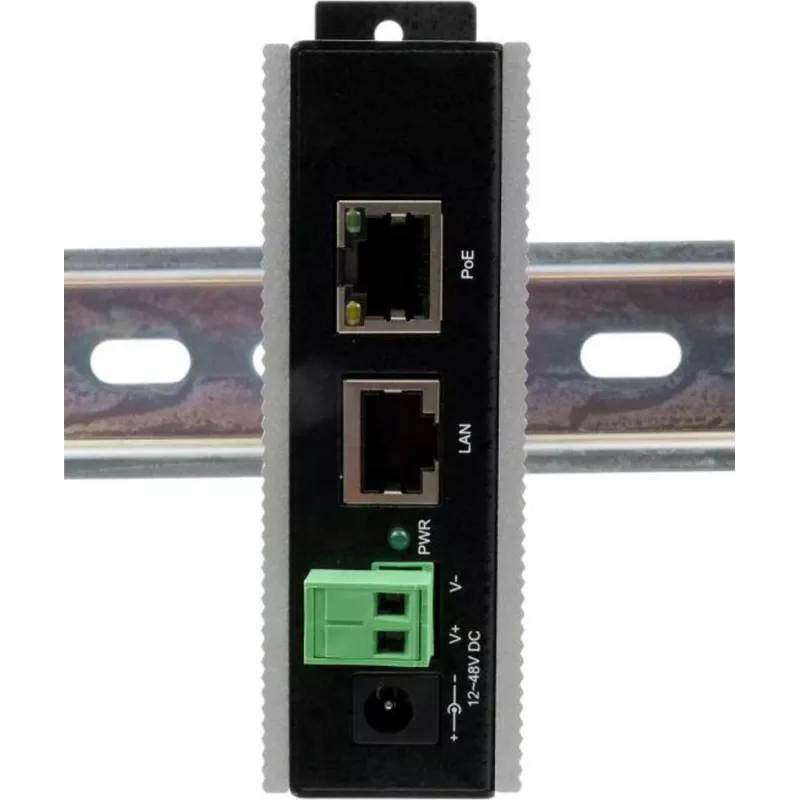

Ethernet PoE Gigabit-injector Exsys EX-6007POE-WT — 1×Gigabit RJ45, PoE, 12–24V aansluitklem

Exsys EX-6007POE-WT is a compact Gigabit Ethernet PoE injector designed to deliver power and data to a single network device over a single RJ45 cable. The unit combines a Gigabit data interface with Power over Ethernet capability and accepts a 12–24V DC input via a screw terminal block. Housed in a metal enclosure rated for extended temperature operation, this injector provides inline power where replacing a switch is not practical or where a dedicated powered port is required.

Advantages

The injector supports full Gigabit data throughput while simultaneously supplying PoE power, enabling high-speed connectivity for devices such as IP cameras and wireless access points. Its 12–24V terminal-block input offers flexible power sourcing for installations without a compatible PSU connector, and the metal housing improves heat dissipation and mechanical durability. The device is specified to operate across a wide ambient temperature range, making it suitable for both indoor and industrial environments.

Suitable for

• Powering single PoE-capable IP cameras where no PoE switch is available
• Supplying power to wireless access points in remote or ceiling-mounted installations
• Providing inline power for VoIP phones or small network devices
• Temporary deployments and test setups that require a single powered Ethernet port

Key specifications

• Network interface: 1 × Gigabit RJ45 data/power port
• Power input: 12–24 V DC via terminal block
• PoE functionality: injects power over Ethernet to connected device
• Enclosure: metal housing for improved durability and thermal performance
• Operating temperature range: rated for extended temperature operation (industrial range)

How to use

Connect the injector’s Gigabit RJ45 output to the PoE device using a standard Ethernet cable, and connect the network switch or router to the data input port. Supply DC power to the terminal block with a compatible 12–24V source, observing correct polarity. After power is applied, the injector will provide both data and power to the connected device over the single Ethernet cable. Ensure cabling and connectors are securely fastened and that the power source matches the device’s requirements.

Recommendations

For reliable operation, use quality shielded Ethernet cabling for Gigabit links and verify the powered device’s voltage and power consumption before connection. Install the injector in a ventilated location away from direct heat sources and follow local safety regulations when wiring the DC input to the terminal block.
