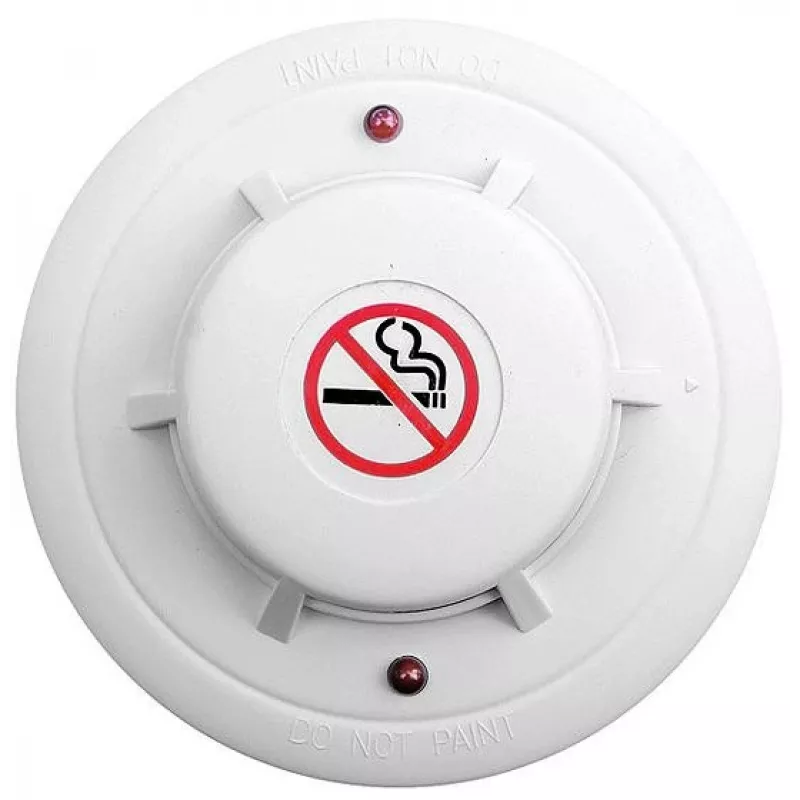

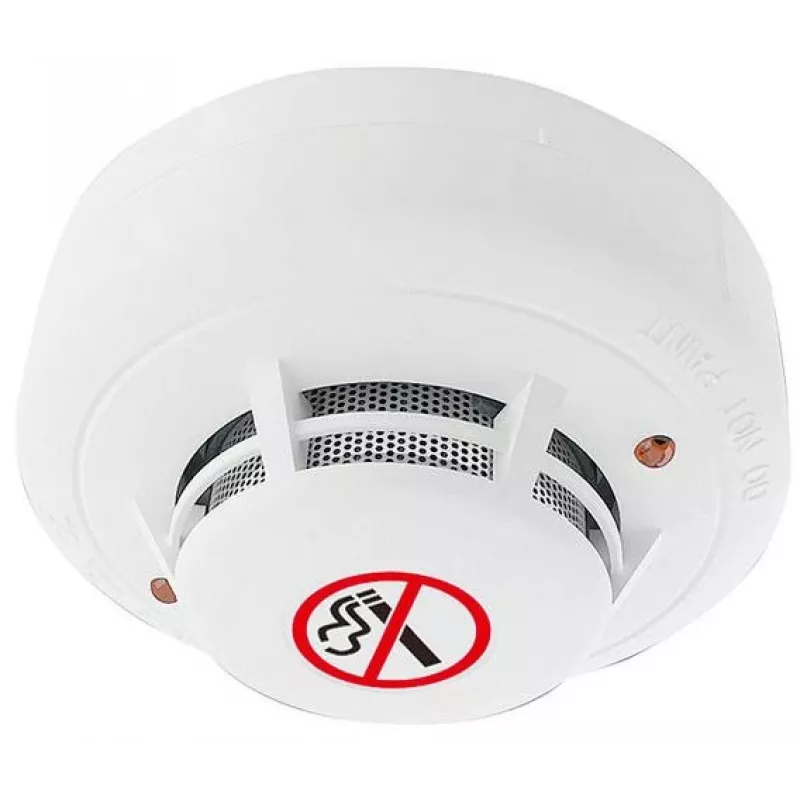

EURA ALG-61B8 Sigarettenrookmelder voor Alarmsystemen

The EURA ALG-61B8 is a specialized cigarette smoke detector designed for integration into alarm systems. It uses a photoelectric detection method to reliably sense tobacco smoke, making it ideal for use in hotels, offices, restrooms, and other areas where smoking is prohibited. The detector operates on a 12V DC power supply and features a relay output (NC/NO selectable) for seamless connection to alarm panels.

Advantages

This detector offers precise detection of cigarette smoke, reducing false alarms from steam or cooking. Its compact design and ceiling mount installation make it discreet yet effective. The relay output allows flexible integration with existing alarm systems, and the red LED alarm indication provides clear visual alerts.

Suitable for

• Hotels and motels
• Office buildings
• Public restrooms
• Smoking lounges
• Any area where cigarette smoke detection is required

Key specifications

• Detection Method: Photoelectric
• Target Smoke Type: Cigarette / Tobacco Smoke
• Power Supply: DC 12V (9-16V DC)
• Standby Current: ≤ 10 mA
• Alarm Current: ≤ 30 mA
• Alarm Output: Relay (NC/NO selectable), max 1A @ 24V DC
• Alarm Indication: Red LED
• Operating Temperature: -10°C to +50°C
• Operating Humidity: 0% to 95% RH (non-condensing)
• Installation: Ceiling Mount
• Wiring: 4-Wire Connection
• Housing Material: ABS Plastic
• Certifications: CE

Recommendations

For optimal performance, install the detector in areas where cigarette smoke is likely to accumulate, away from air vents and direct sunlight. Ensure proper wiring according to the alarm system manual. Regular testing and maintenance are recommended to ensure reliable operation.
