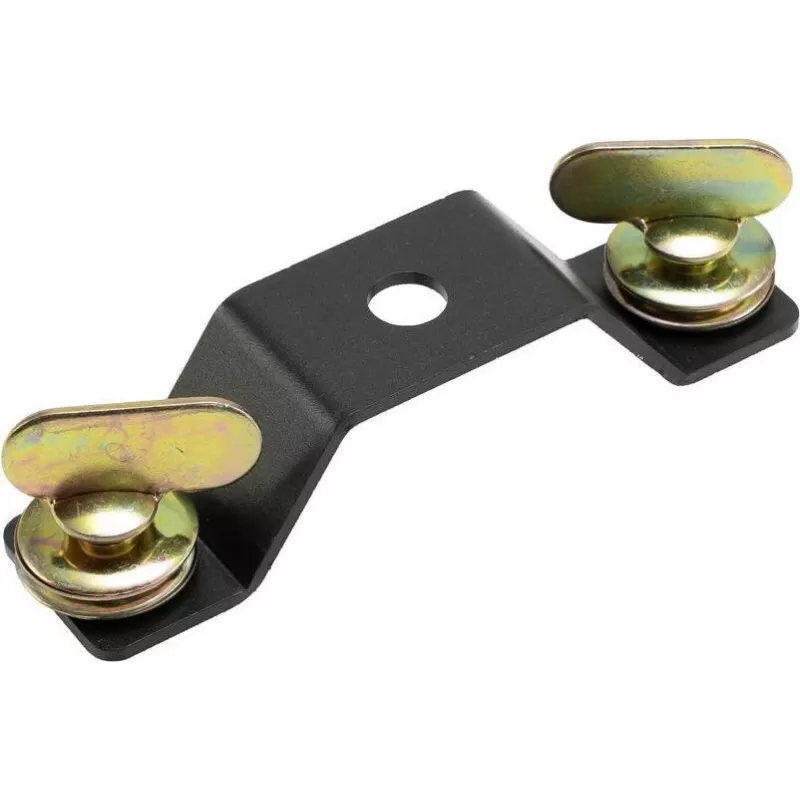

EUROLITE Omega Bracket 66 - 48-51mm truss-beugel, 20kg belasting, Quick-Lock 51786585

Rigging a moving head or effect light to a truss often means wrestling with clamps and tools. The EUROLITE Omega Bracket 66 changes that. Designed for professionals who need speed and security, this bracket slips onto 48–51 mm truss tubes and locks in place with quick-lock quarter-turn fasteners—no tools required. The 66 mm hole spacing matches standard fixture bases, and the integrated safety eyelet gives you a solid anchor for a safety cable. Built from powder-coated steel, it holds up to 20 kg, making it a dependable choice for clubs, stages, and event productions.

Key specifications

• Type: Omega bracket for mounting fixtures to trusses
• Material: Steel with black powder-coated finish
• Truss tube compatibility: 48–51 mm diameter
• Fixture mounting hole spacing: 66 mm (center-to-center)
• Number of mounting holes: 2 (M10 thread)
• Maximum load capacity: 20 kg
• Mounting mechanism: Quick-lock / quarter-turn fasteners
• Safety feature: Integrated eyelet for safety rope/cable
• Installation: Tool-free quick attachment

Why choose it

Time is critical during setup and teardown. The quick-lock design lets you attach or remove the bracket in seconds, without fumbling for wrenches. The robust steel construction and powder coating withstand the rigors of touring and permanent installations. The safety eyelet adds an extra layer of protection, ensuring your fixture stays secure even if the primary mount fails. This bracket is built to last and designed for efficiency.

Ideal use cases

• Mounting moving heads, scanners, and effect lights to truss systems
• Quick changeovers in rental and staging environments
• Permanent installations in clubs, theaters, and houses of worship
• Any application requiring a reliable, tool-free truss mounting solution

Good to know

The Omega Bracket 66 is compatible with a wide range of fixtures that use the standard 66 mm hole spacing. Always verify your fixture's mounting pattern before purchase. For maximum safety, use a certified safety cable through the integrated eyelet. The bracket's compact size and light weight make it easy to store and transport alongside your lighting gear.
