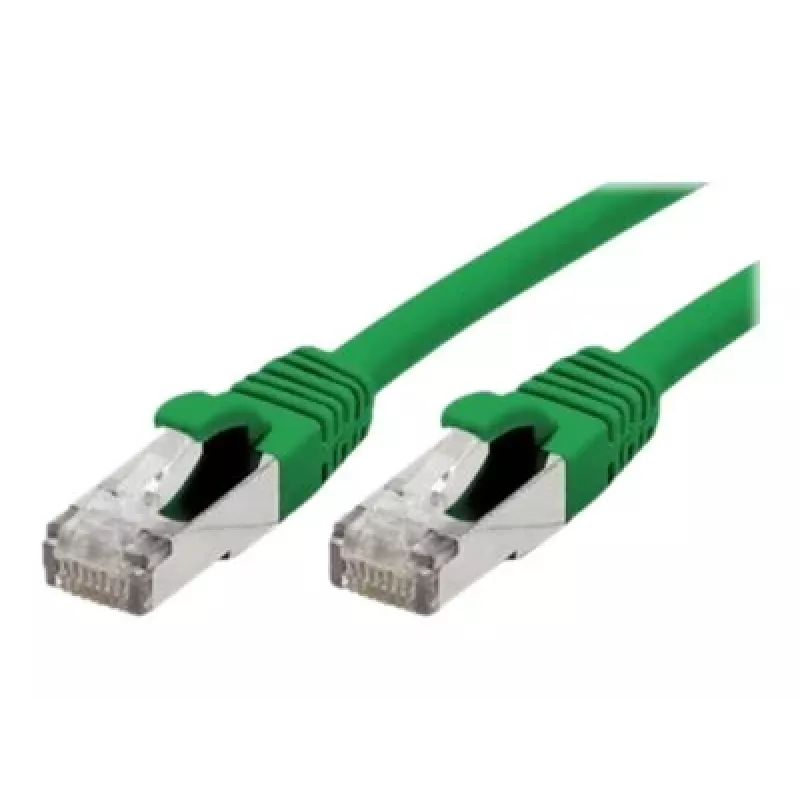

EXERTIS CONNECT Cat 6A S/FTP patchkabel, 3,0 m, groen, slim snagless boot 858439

Network administrators and IT technicians often need a reliable, high-performance patch cable for connecting servers, switches, and patch panels in data centers or office networks. This EXERTIS CONNECT Cat 6A S/FTP patch cable delivers 10 Gigabit Ethernet performance with superior shielding to prevent electromagnetic interference, making it suitable for high-density installations.

Key specifications

• Cable type: Ethernet Patch Cable
• Category: Cat 6A (Class EA)
• Shielding: S/FTP (PiMF) – pairs in metal foil, overall braid shield
• Length: 3.0 m
• Colour: Green
• Connector type: RJ45 (8P8C), gold-plated (50µ)
• Conductor: Copper (Cu), AWG 26/7 stranded
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Boot type: Slim snagless boot
• Wiring scheme: TIA/EIA 568B
• Bandwidth: Up to 500 MHz
• Data transfer rate: Up to 10 Gbps (10GBASE-T)
• Standard compliance: ISO/IEC 11801, EN 50173, EIA/TIA 568-C.2
• Flame retardancy: IEC 60332-1
• Operating temperature: -20°C to +60°C

Why choose it

The S/FTP shielding with individually foil-wrapped pairs and an overall braid provides excellent protection against alien crosstalk, ensuring stable 10G connections even in cable-dense environments. The slim snagless boot allows easy installation in high-density patch panels without catching on adjacent cables. The LSZH jacket emits low smoke and no halogen when exposed to fire, improving safety in enclosed spaces.

Ideal use cases

• Data center patching between servers and switches
• High-speed workstation connections requiring 10G Ethernet
• Structured cabling in offices with PoE devices
• Installations where fire safety regulations require LSZH materials

Good to know

This cable is backward compatible with Cat 5e and Cat 6 networks. The stranded copper conductors provide flexibility for frequent moves and changes. The green colour aids in color-coding network segments for easy identification.
