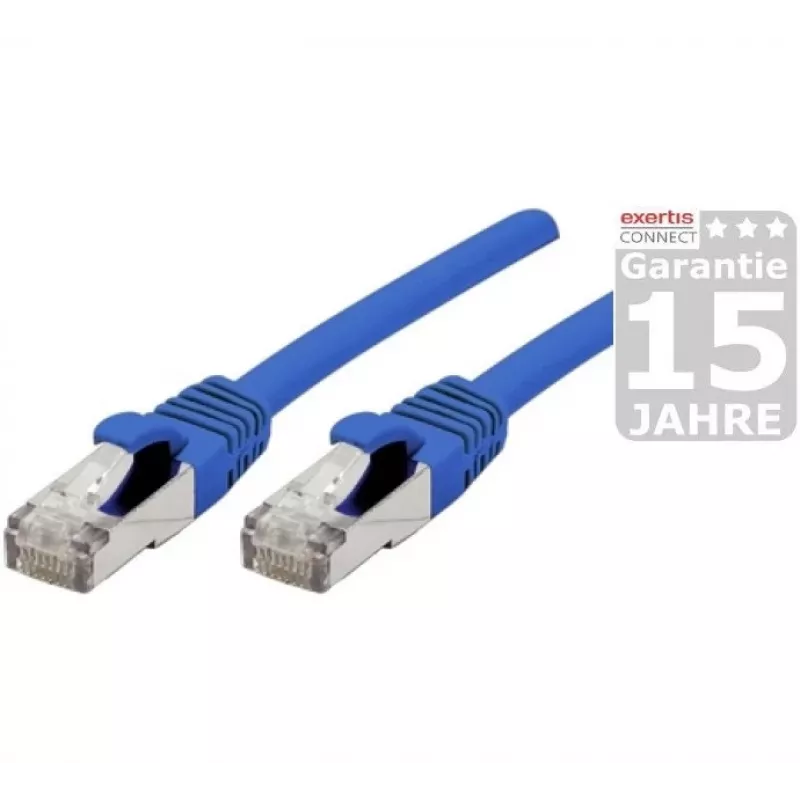

EXERTIS CONNECT Cat 6A S/FTP patchkabel, 5 m, blauw 858456

This EXERTIS CONNECT patch cable stands out with its slim bend protection, making it easier to route in tight spaces behind desks or patch panels. The S/FTP shielding with individually foiled pairs delivers clean 10 Gigabit Ethernet over 5 meters.

Highlights

• Cat 6A performance up to 500 MHz
• S/FTP (PiMF) shielding for minimal crosstalk
• Slim snagless boot for easy unplugging
• LSZH jacket for low smoke and halogen-free safety
• Stranded copper conductors, AWG 26/7

In daily use

The blue jacket helps with colour-coding network runs. RJ45 connectors on both ends follow TIA/EIA 568B wiring, so it works straight out of the bag with switches, routers, and patch panels. The stranded construction keeps the cable flexible even when moved frequently.

Full specifications

• Cable length: 5 m
• Cable standard: Cat 6A (Class EA)
• Cable shielding: S/FTP (PiMF)
• Connector type: RJ45 male to RJ45 male
• Conductor material: Copper
• Conductor gauge: AWG 26/7 (stranded)
• Jacket material: LSZH
• Bandwidth: 500 MHz
• Data transfer rate: 10 Gbps
• Wiring standard: TIA/EIA 568B
• Number of pairs: 4
• Outer diameter: 6.0 mm
• Operating temperature: -20°C to +60°C
• Flammability rating: IEC 60332-1

Final note

A dependable Cat 6A link for high-speed networking, with a slim profile that fits dense installations.
