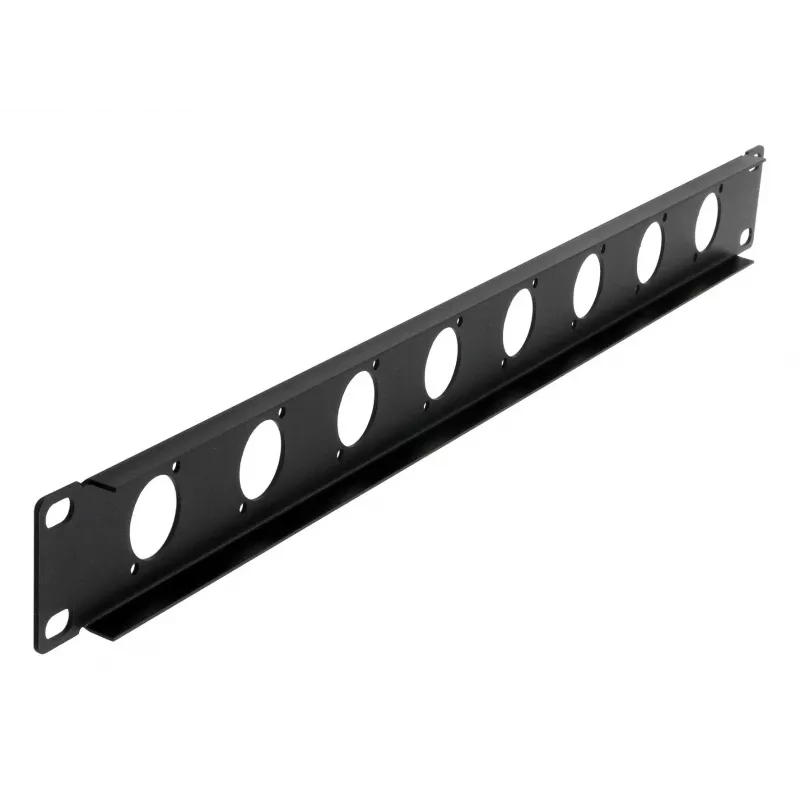

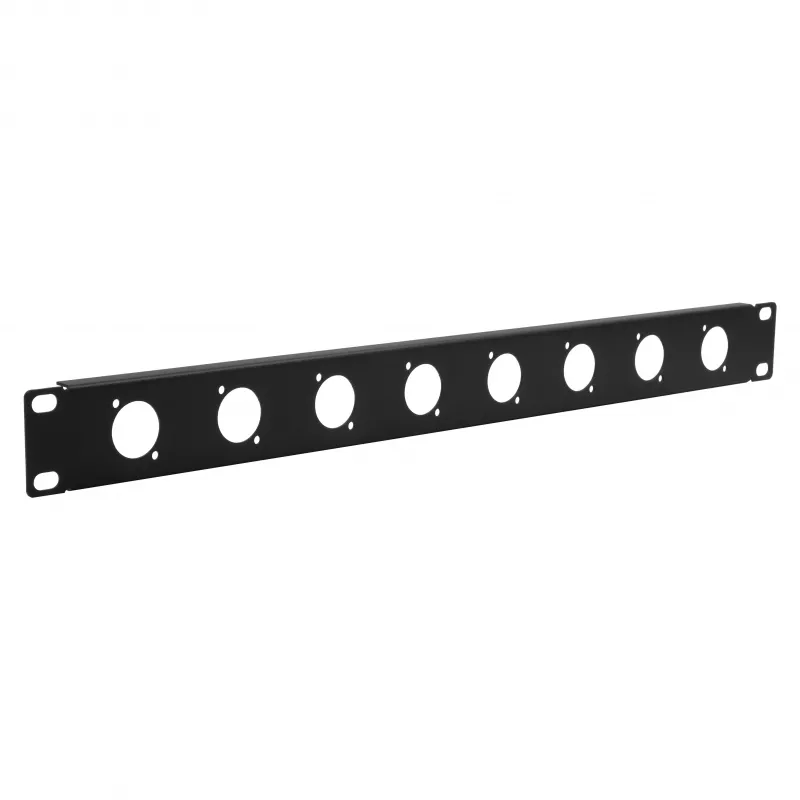

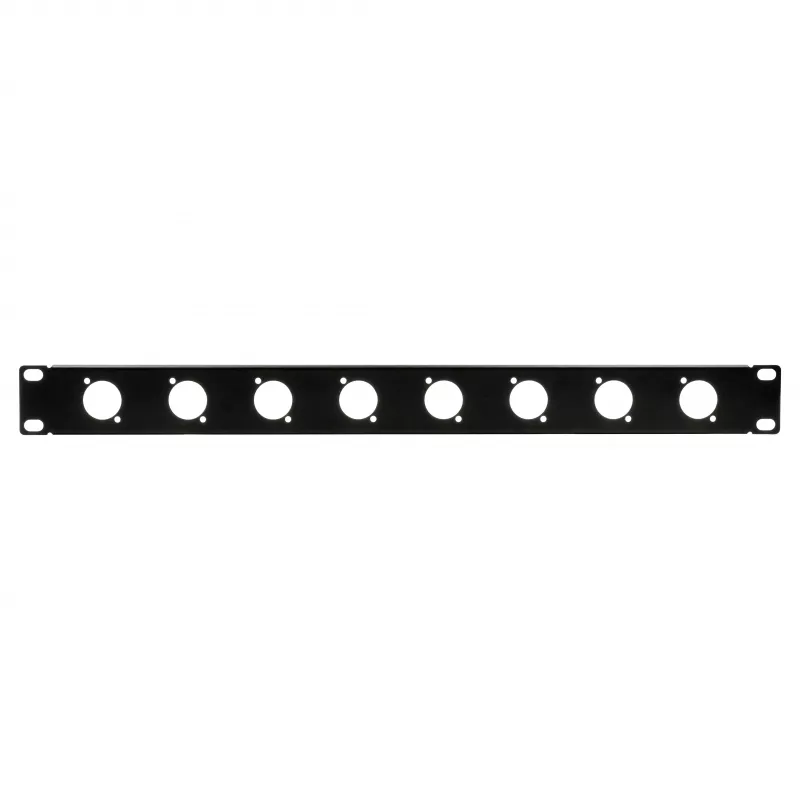

EXSYS 19 inch 1U rackpaneel met 8 D-type (XLR) uitsparingen, zwart EX-49297

Audio engineers and installers can build a custom 19-inch patch panel with this EXSYS 1U rack blank. It provides eight D-type cutouts for mounting XLR, Speakon, RJ45, USB, BNC, or fiber optic connectors with D-type housings, making it a flexible solution for studios, live sound racks, and network installations.

Key specifications

• 19-inch rack mount, 1U height
• 8 D-type cutouts

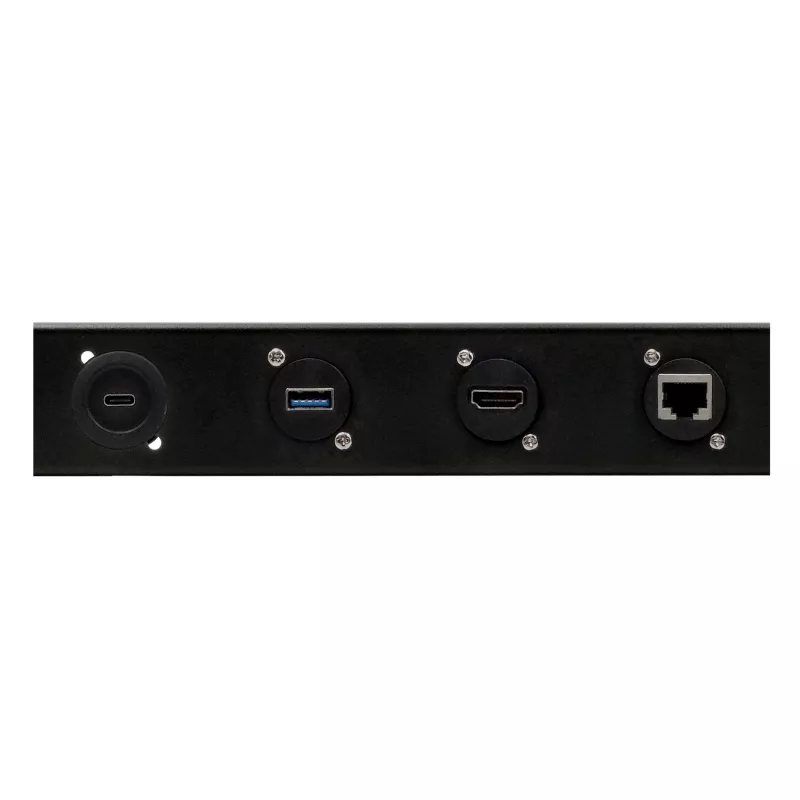

• Compatible with XLR, Speakon, RJ45, USB, BNC, and fiber optic connectors (with D-type housing)
• Steel construction with black powder-coated finish
• Panel width: 482.6 mm, height: 44.45 mm, depth: 10 mm, thickness: 1.5 mm

Why choose it

The pre-punched cutouts save time and ensure clean, professional-looking connector layouts. The sturdy steel panel withstands frequent use in touring racks and fixed installations.

Ideal use cases

• Custom audio patch bays in recording studios
• Live sound racks for XLR or Speakon connections
• Data and AV racks needing mixed connector types

Good to know

The panel is a blank plate with cutouts; connectors are not included. It mounts in any standard 19-inch rack or cabinet.
