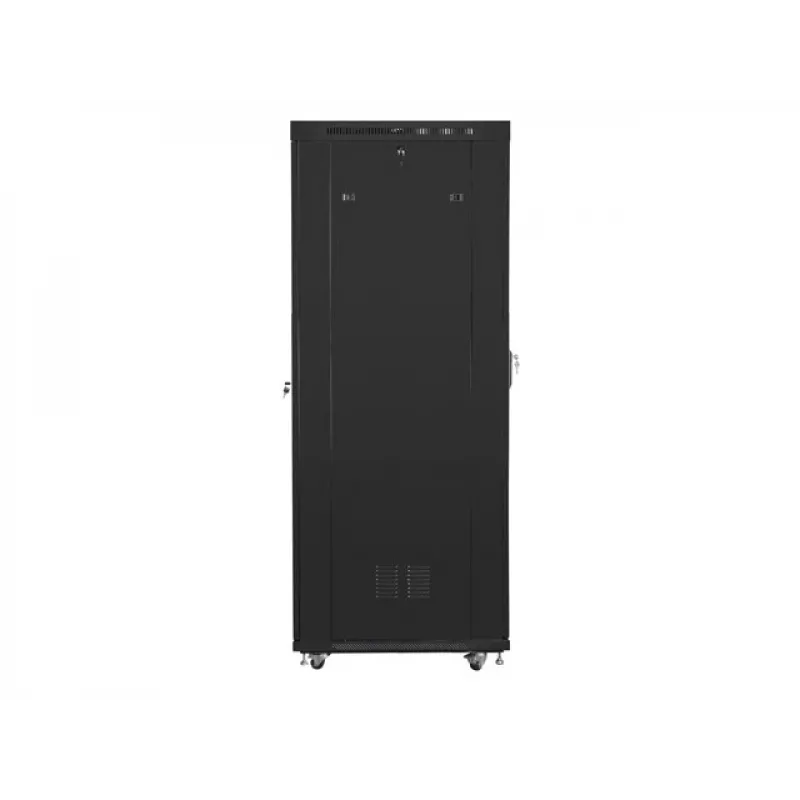

Vrijstaande rack Lanberg FF01-8242-23BL 42U 1200kg zwart

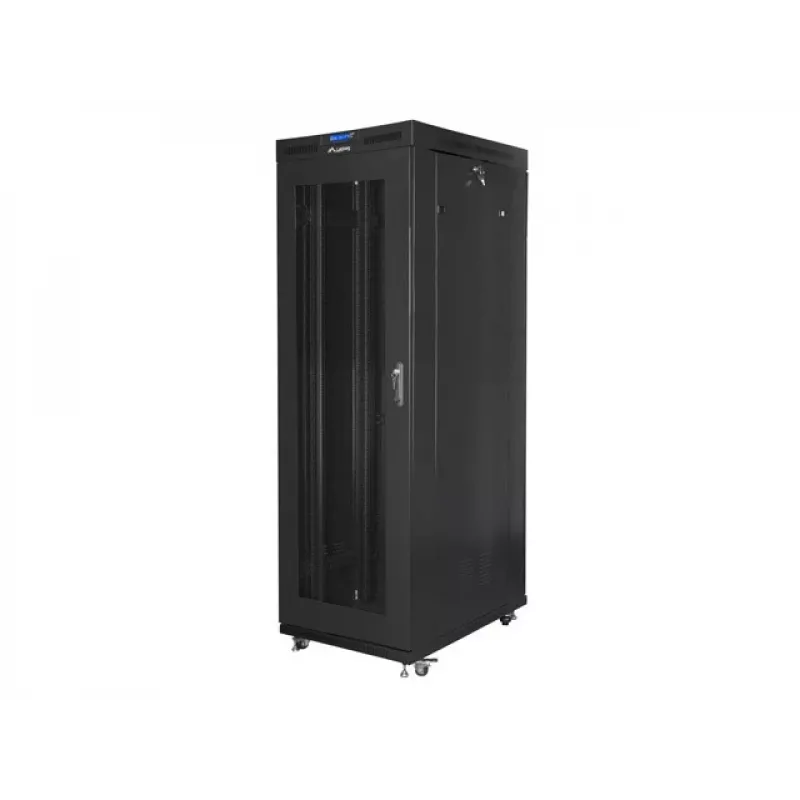

Description: Standing installation cabinet 19 42U 800x1200 black LCD perforated door Lanberg (Flat Pack) The Lanberg FF01-8242-23BL single-section standing cabinet is a solution designed for network construction, cabling and equipment installation in size 19 with a maximum total load capacity of up to 800 kg. It can be used in data centers that require a large amount of space in equipment cabinets. The cabinet will successfully fulfill its role in large, extensive networks and server rooms, both in small, medium and large companies and corporations. It will also work well in low-voltage installations such as cable TV networks, alarm systems, fire protection systems, access control systems as well as CCTV and IP monitoring systems. The construction is made using high quality rolled steel, it is characterized by excellent design and workmanship. The cabinet enables full adjustment of the depth of the vertical mounting rails. It is equipped with a perforated front door with a lock, which can be mounted on the right or left side. It has removable side panels (with locks included) and a rear perforated door with a lock. It is possible to introduce wiring through the lockable upper and lower panels (with plugs in the set). The cabinet has an LCD display mounted on the front, displaying basic information (e.g. temperature inside the cabinet, current time and current status of fans) about the status of the device. The set includes a ventilation panel with 4 fans 230V, equipped with a thermostat. In addition, the set includes accessories for mounting the mounting rails, M6 screws and plugs for entry panels, and thanks to the construction for self-assembly (flat pack), the whole thing is in 3 flat packages, which facilitates transport. | Type: Floor standing | Height: 42U | Width: 19 | LCD display: Yes | Number of fan slots: 6 | Number of vertical rails: 4 | Protection class: IP20 | Front door type: Perforated | Stuff: Steel | Load (max): 800 | Accessories included: Mounting accessories Front and rear door lock 2 x Side panel locks 20 x M6 screw 2 x Vertical cable organizer | Color: RAL 9004 | Color: Black | Dimensions: Cabinet dimensions: 800 x 1200 x 2097.5 mm Height (top panel - bottom panel): 2018.5 mm Height (top panel - ground): 2091.5 mm Height (top panel - ground including screws): 2097.5 mm Internal spacing width between rack rails: 450 mm The width of the spacing between the openings of the rack rails: 465 mm External width between rack rails: 500 mm | Weight: 139 | Other features: LCD display Floor panel: 4 castors with brakes + adjustable feet Ventilation panel: 4 230V fans in the upper casing and a thermostat included Door type: Front - Perforated, Rear - Perforated, Compliance with standards: ANSI/EIA RS-310D, IEC297-2, DIN41494; PART1 & PART7, ETSI Material: High-quality rolled steel, powder coated Cable openings: Top, Bottom (adjustable)

How to use

Assemble the flat-pack cabinet following the supplied paper instructions or the online video guide. Position the rack on a level surface, attach castors if required and secure the cabinet to the floor or stable surface when permanent installation is needed. Install equipment in standard 19" mounting rails according to rack unit (U) spacing, balance the load vertically and use cable management accessories to route power and network cabling. Connect the grounding cable before powering installed equipment and configure the LCD panel to define fan start temperature and timer settings.

Recommendations

For reliable long-term operation, distribute heavy equipment evenly across the cabinet, maintain clear airflow paths by using ventilation panels and fans as needed, and ensure the cabinet is properly grounded. Regularly check the LCD panel settings and fans to maintain optimal internal temperature and prevent overheating.
