Vrijstaande netwerkkast DIGITUS Unique Series 42U 800x800 mm IP20 800 kg grijs

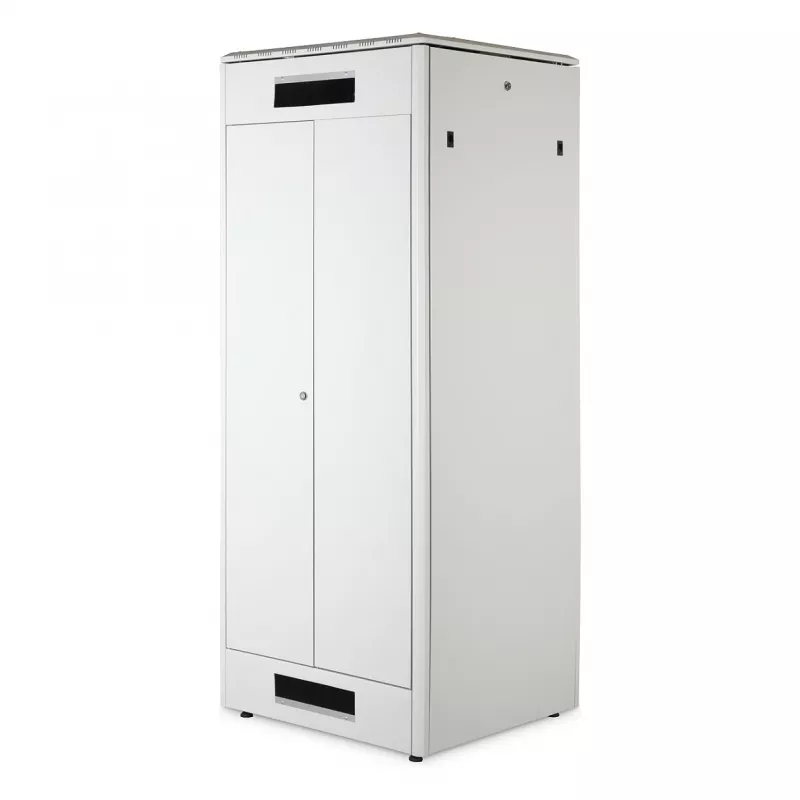

Freestanding DIGITUS Unique Series network rack with 42U capacity and an 800 x 800 mm footprint, designed for server and networking equipment in offices and data centers. The cabinet is fully assembled and built from up to 1.5 mm sheet steel with electrostatic powder coating in grey (RAL 7035). It features adjustable 19" profile rails, removable side panels and doors, a special removable roof cover with ventilation slits and a roof structure prepared for a fan unit, sliding cable entry with rubber sealing at the base, and a lock system on the front door with a pivot lever (adapter for profile half cylinder included). The rack supports an 800 kg load and provides organized cable management and good airflow for mounted equipment.

Advantages

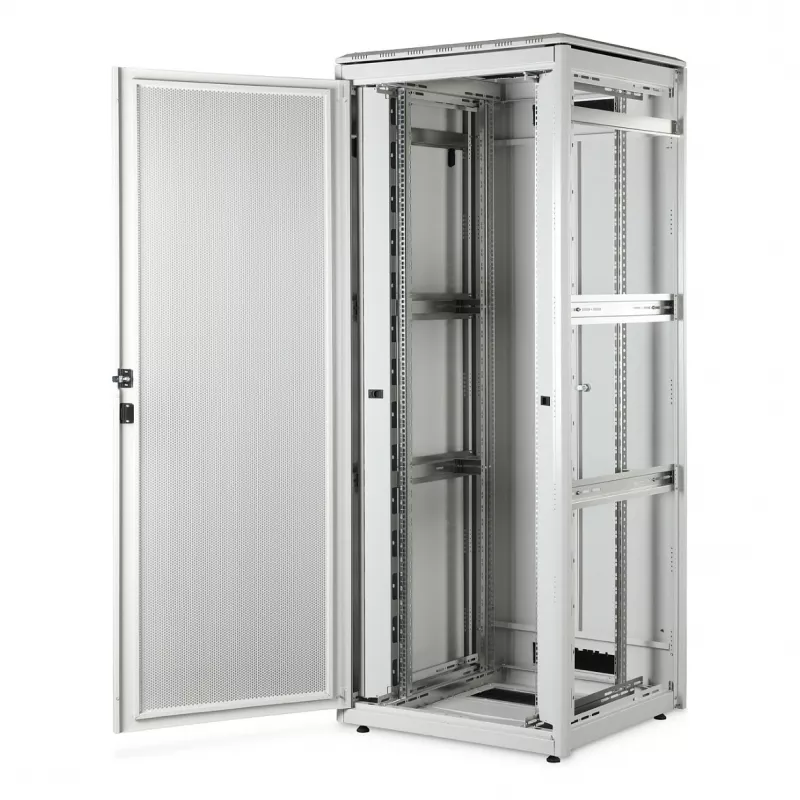

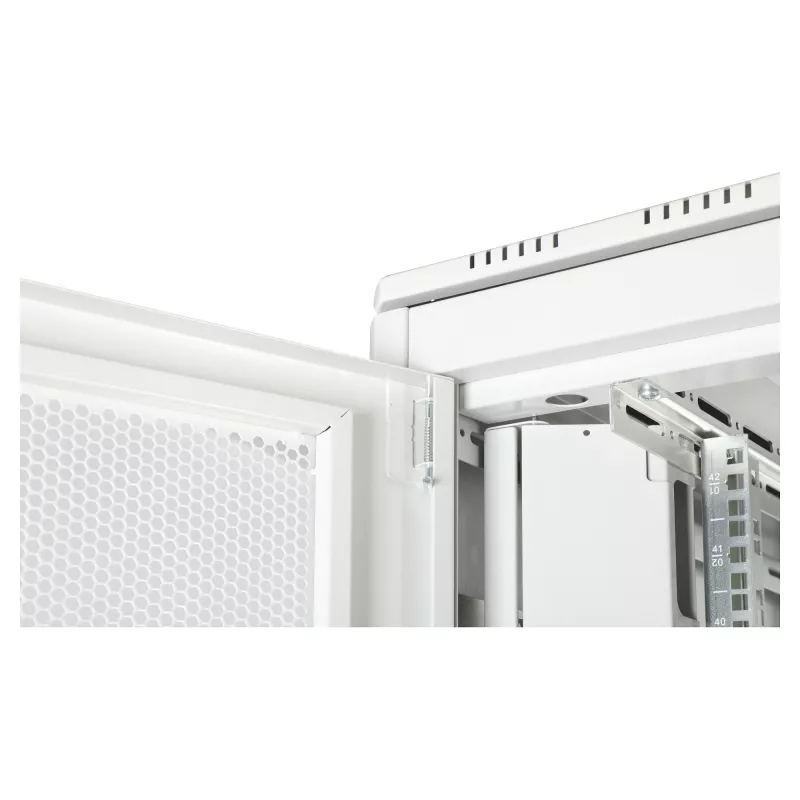

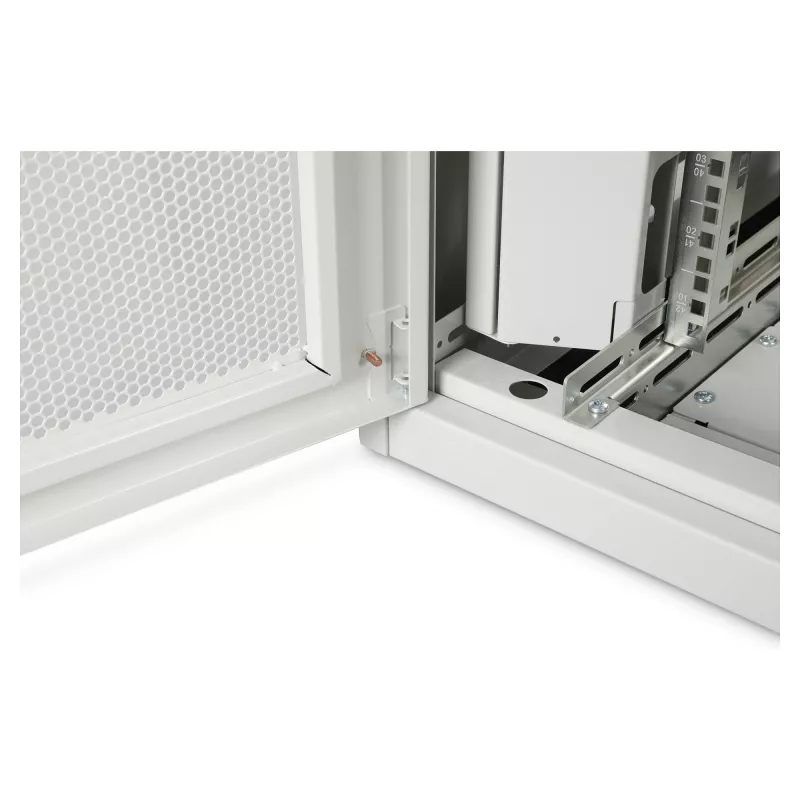

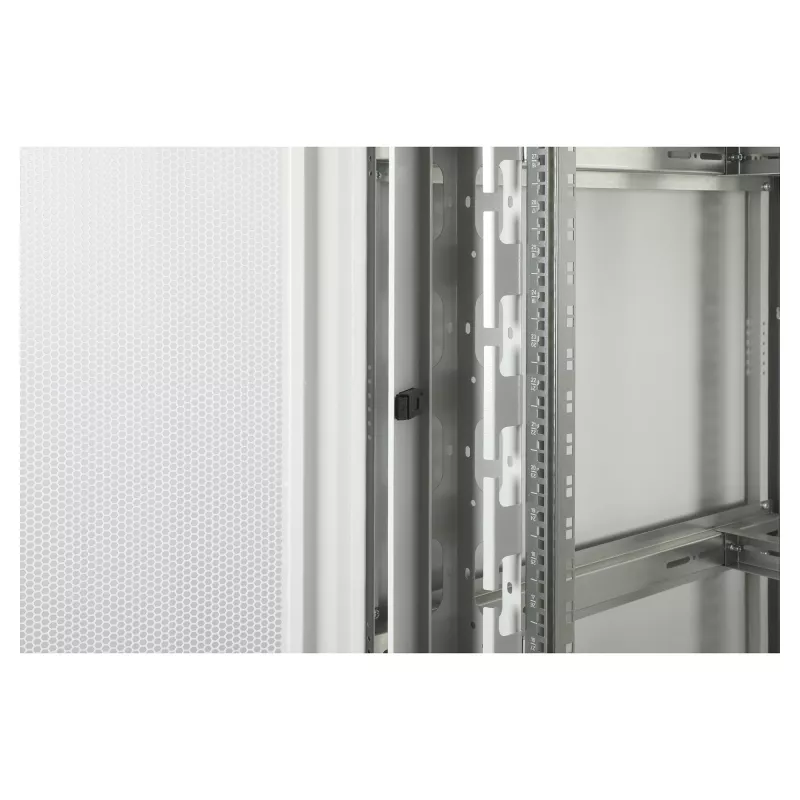

The DIGITUS Unique Series rack offers robust construction with adjustable 483 mm (19") profile rails that are depth-adjustable and labeled with rack units readable in both directions. A removable offset roof cover and 70% perforated steel front door improve air circulation and simplify fan module installation. Modular, lockable and removable side panels and doors increase accessibility and flexibility during installation and maintenance. Sliding floor inlet with foam rubber seal and brush-equipped inlets in roof and floor enable neat cable routing.

Suitable for

• Mounting servers, switches and patch panels in office and small data center environments
• Organized network cabling and equipment consolidation
• Environments requiring up to 800 kg total load capacity
• Installations needing IP20 protection and standard 19" mounting

Key specifications

• Rack capacity: 42U
• Dimensions (WxD): 800 x 800 mm; Height: 2053 mm
• Maximum mounting depth: 743 mm
• Load capacity: 800 kg
• Protection class: IP20
• Material: sheet steel up to 1.5 mm; Colour: Grey (RAL 7035)

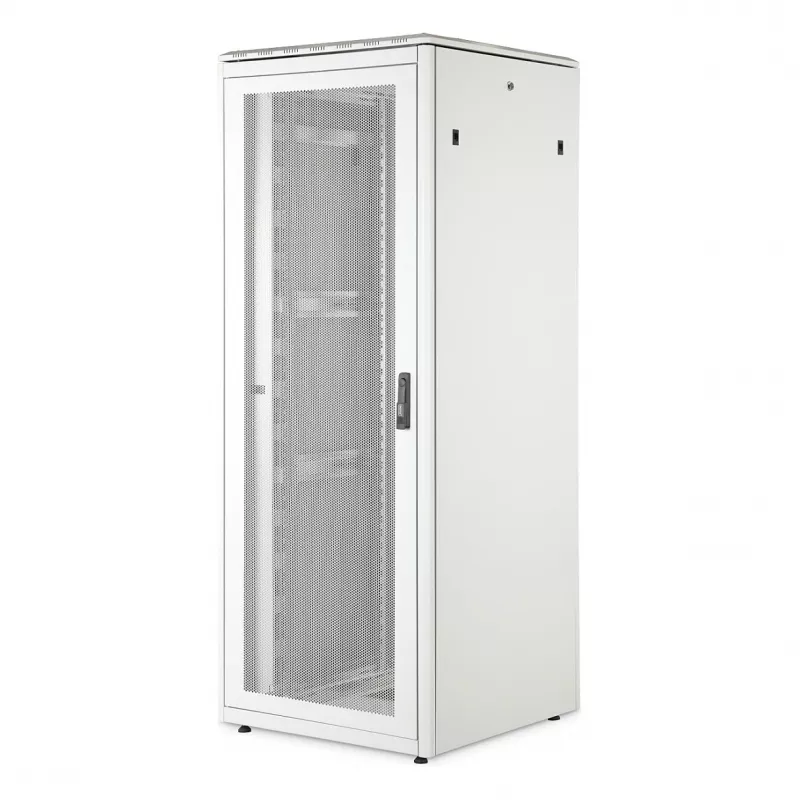

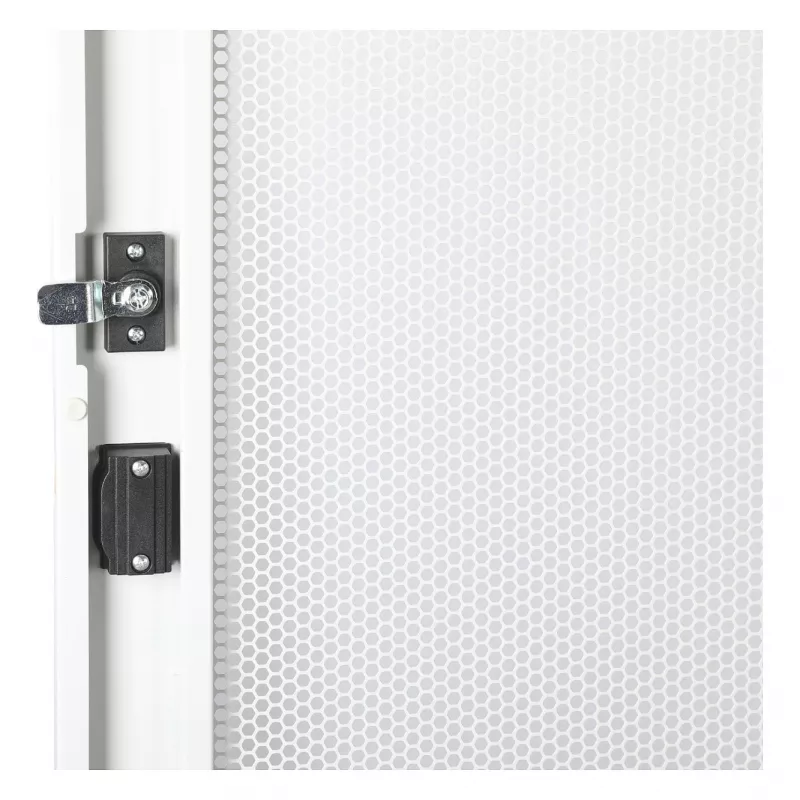

• Front door: steel with 70% perforation; lock system with pivot lever (adapter included)

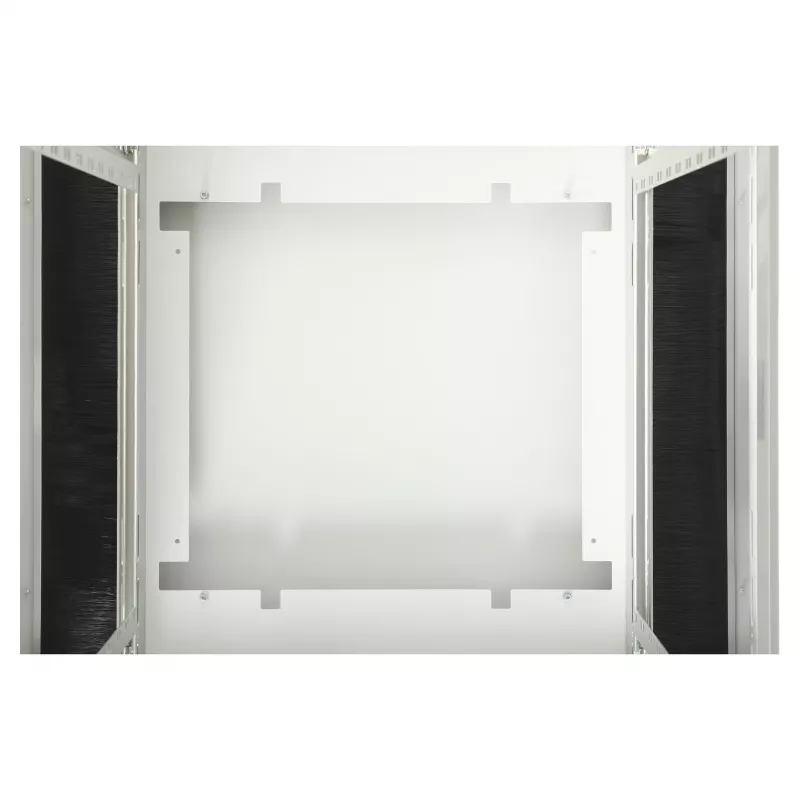

• Features: adjustable 19" profile rails, removable cover with ventilation slits, sliding cable entry with rubber/foam seal, brush inlets (from 26U), collapsible design

How to use

Place the freestanding cabinet on a level surface and secure it according to local regulations if required. Adjust the 19" profile rails to the appropriate mounting depth (max 743 mm) and fix them for each device. Route power and network cables through the sliding cable entry or brush-equipped inlets in the roof and floor, using the built-in cable management features and vertical cable channels where available. Mount servers, switches and patch panels to the labeled rack units using standard 19" mounting hardware. Use the removable side panels and doors for easier access during installation and service. Install fan modules in the specially designed roof area if additional active ventilation is needed.

Recommendations

For optimal airflow and cooling, combine the perforated front door and removable roof cover with appropriately positioned fans and maintain clear front-to-back airflow. Distribute weight evenly across the rack and follow the maximum mounting depth and load limits. Keep cable entries sealed with the included rubber/foam seals to maintain orderly cabling and reduce dust ingress.
