EXSYS EX-1502HMVS Industriële 1-poorts USB-C 3.2 Gen 1 naar USB-A-adapter met 15KV ESD-overspanningsbeveiliging, DIN-railmontage, 9-48V DC

In industrial automation and control cabinets, connecting a USB-C host to a legacy USB-A device often requires a rugged, protected interface. The EXSYS EX-1502HMVS is a 1-port USB 3.2 Gen 1 adapter that converts a USB Type-C upstream port to a USB Type-A downstream port, delivering data transfer rates up to 5 Gbps. It is engineered for harsh environments with 15 KV air and 8 KV contact ESD protection, plus overvoltage surge protection on the USB lines. The metal housing mounts on a standard 35 mm DIN rail, and power is supplied via a 9-48V DC terminal block, making it ideal for machine control, embedded systems, and industrial PCs.

Key specifications

• USB Standard: USB 3.2 Gen 1 (SuperSpeed USB 5Gbps)
• Upstream Connector: 1x USB Type-C (Host)
• Downstream Connector: 1x USB Type-A (Device)
• Data Transfer Rate: Up to 5 Gbps
• ESD Protection: 15 KV Air, 8 KV Contact
• Overvoltage Protection: Surge Protection
• Power Input: 9-48V DC via Terminal Block
• Power Consumption: Max. 1.5W (without USB device)
• Operating Temperature: -40°C to 85°C
• Storage Temperature: -40°C to 85°C
• Humidity: 5% to 95% RH (non-condensing)
• Housing Material: Metal (Aluminum)

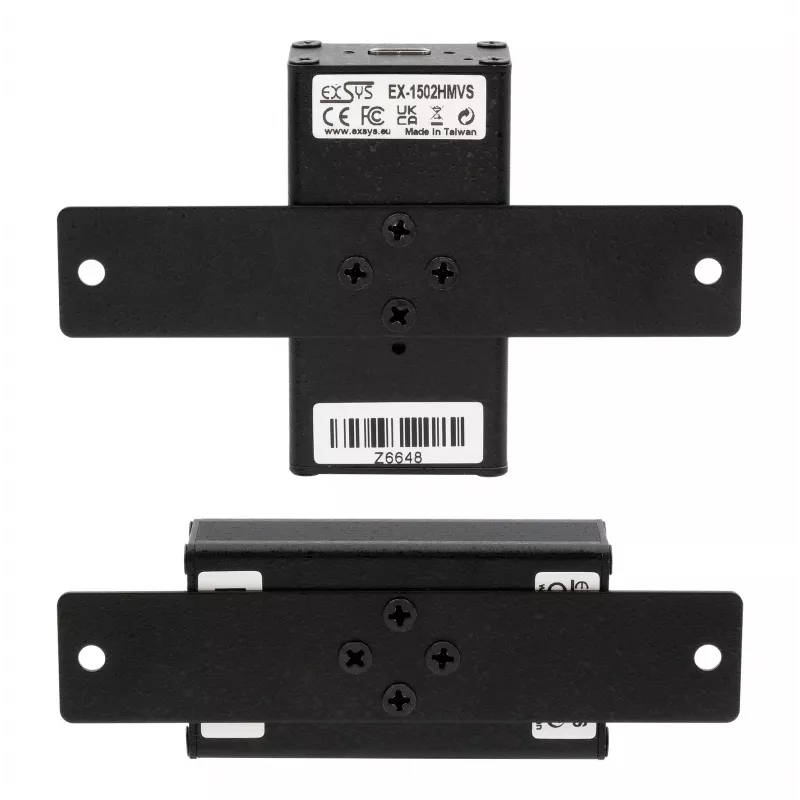

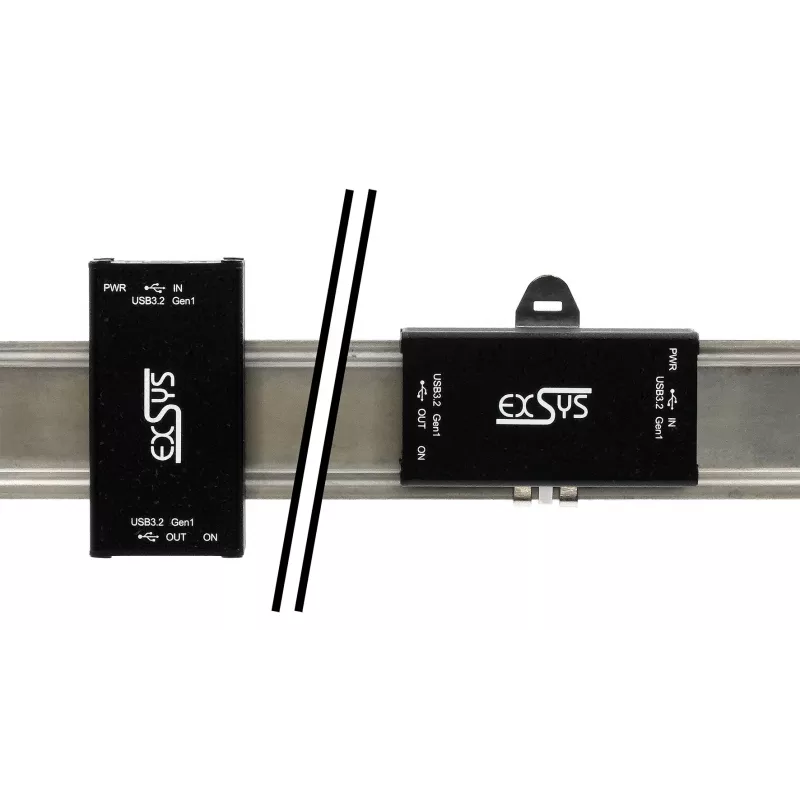

• Mounting Type: DIN-Rail (35mm)
• LED Indicators: Power, USB Link
• OS Compatibility: Windows, macOS, Linux
• USB BC 1.2 Support: Yes (Downstream Port)
• Industrial Grade: Yes

Why choose it

This adapter provides robust protection against electrostatic discharge and voltage surges, ensuring reliable operation in industrial settings. Its wide power input range and DIN-rail mounting simplify integration into control panels. The industrial-grade metal housing withstands extreme temperatures and humidity, making it suitable for demanding applications.

Ideal use cases

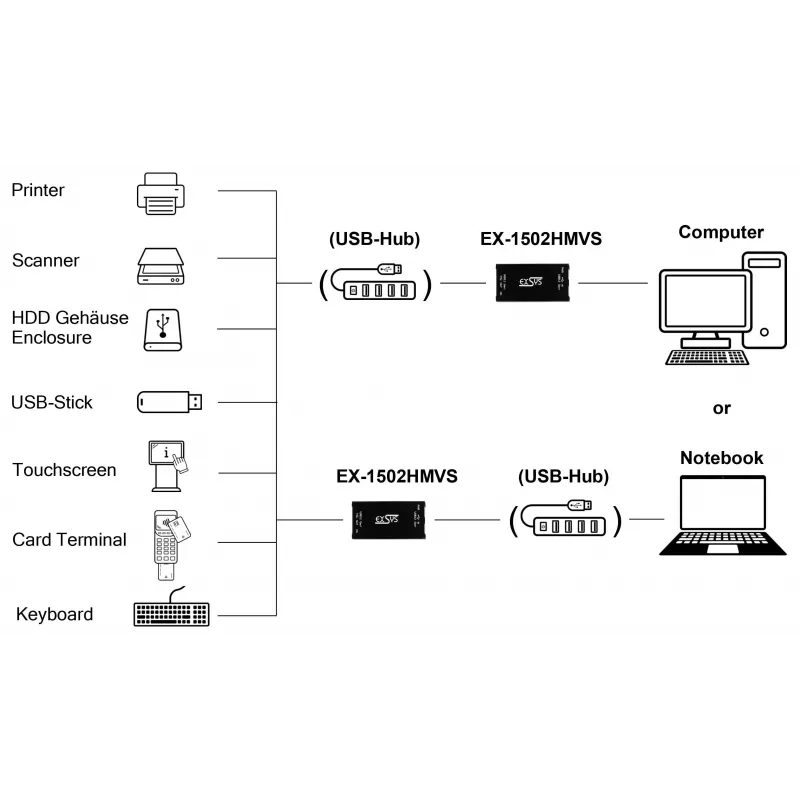

• Connecting USB-C industrial PCs to USB-A peripherals in factory automation.
• Providing surge-protected USB connectivity in embedded systems and kiosks.
• Adding USB ports to DIN-rail mounted controllers or gateways.
• Extending USB connectivity in harsh environments with wide temperature ranges.

Good to know

The EX-1502HMVS supports USB BC 1.2 for fast charging of downstream devices. It is compatible with Windows, macOS, and Linux without additional drivers. The LED indicators show power and USB link status for quick diagnostics.
