EXSYS EX-49181 panel-mount USB 2.0 verlengkabel, USB-A bus naar USB-A stekker, 30 cm, metalen plaat

With a USB 2.0 data rate of up to 480 Mbps, this EXSYS panel-mount adapter brings a reliable USB-A port to the front of industrial PCs, custom enclosures, and kiosks.

Overview

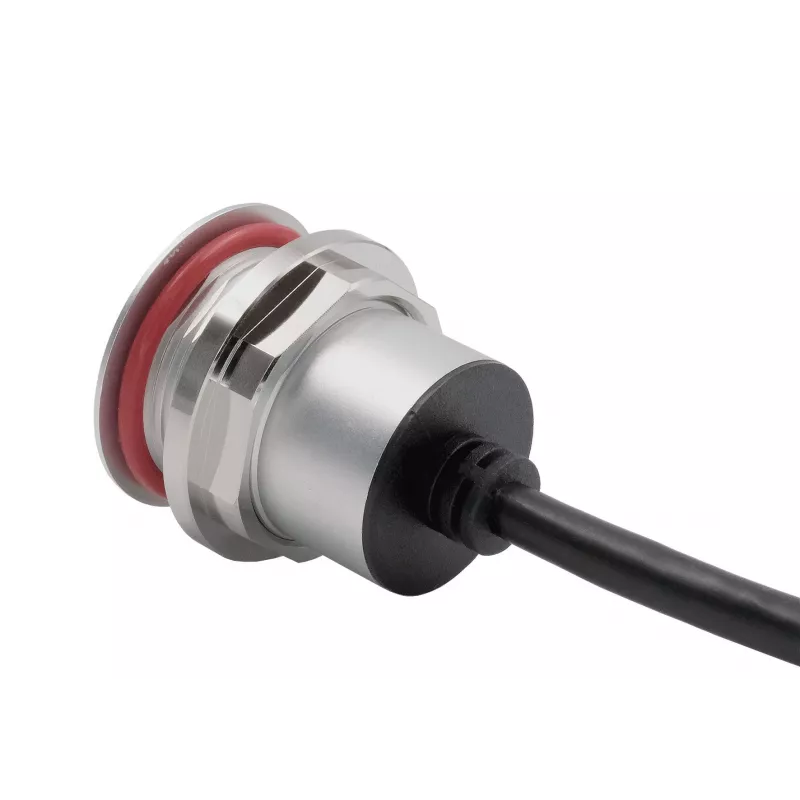

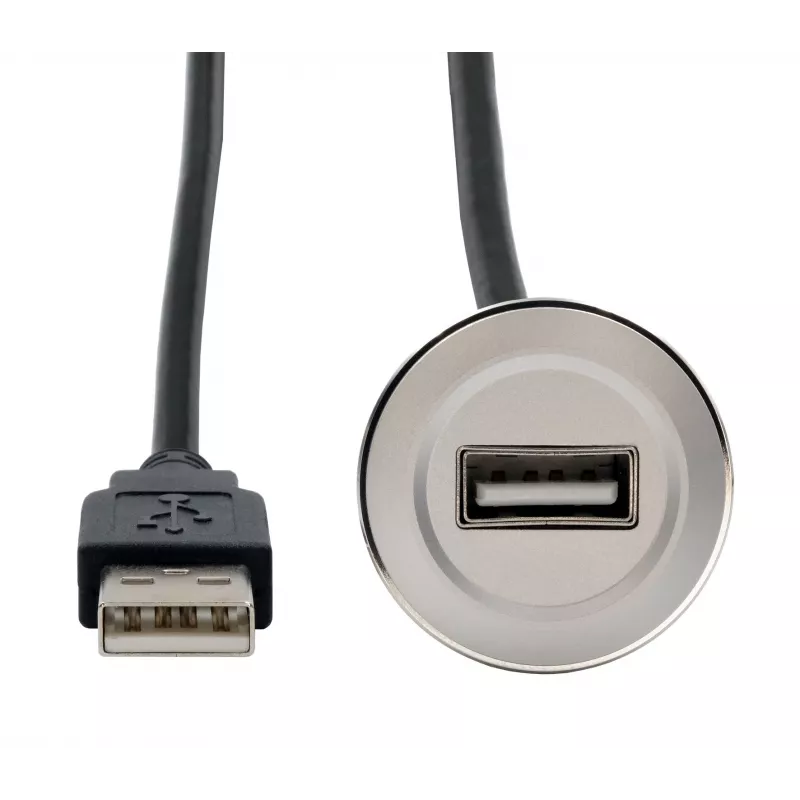

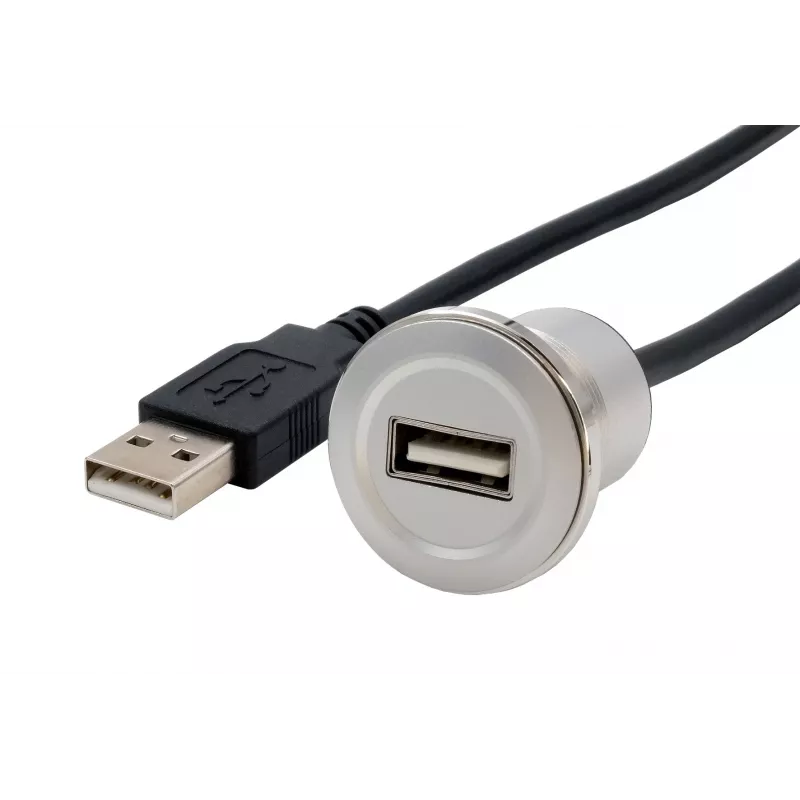

The EXSYS EX-49181 is a 30 cm USB 2.0 extension cable with a panel-mount USB-A female connector on one end and a standard USB-A male connector on the other. The silver metal mounting plate features two screw holes spaced 28 mm apart, allowing secure installation into a 22 x 22 mm cutout. The black cable is double shielded with foil and braid to maintain signal integrity in electrically noisy environments.

What stands out

• Panel-mount USB-A female connector for easy access from the outside of a case
• Double-shielded cable reduces interference
• Metal mounting plate with 28 mm hole spacing fits common cutouts
• Plug and play – no drivers required

Technical details

• Connector 1: USB Type-A female (panel mount)
• Connector 2: USB Type-A male
• USB standard: USB 2.0
• Data transfer rate: up to 480 Mbps
• Cable length: 30 cm
• Mounting plate material: metal, silver
• Cable colour: black
• Mounting hole spacing: 28 mm
• Mounting cutout: 22 x 22 mm
• Shielding: double shielded (foil + braid)

Our verdict

A practical solution for adding a front-facing USB-A port to custom builds, with solid shielding and a sturdy metal plate.
