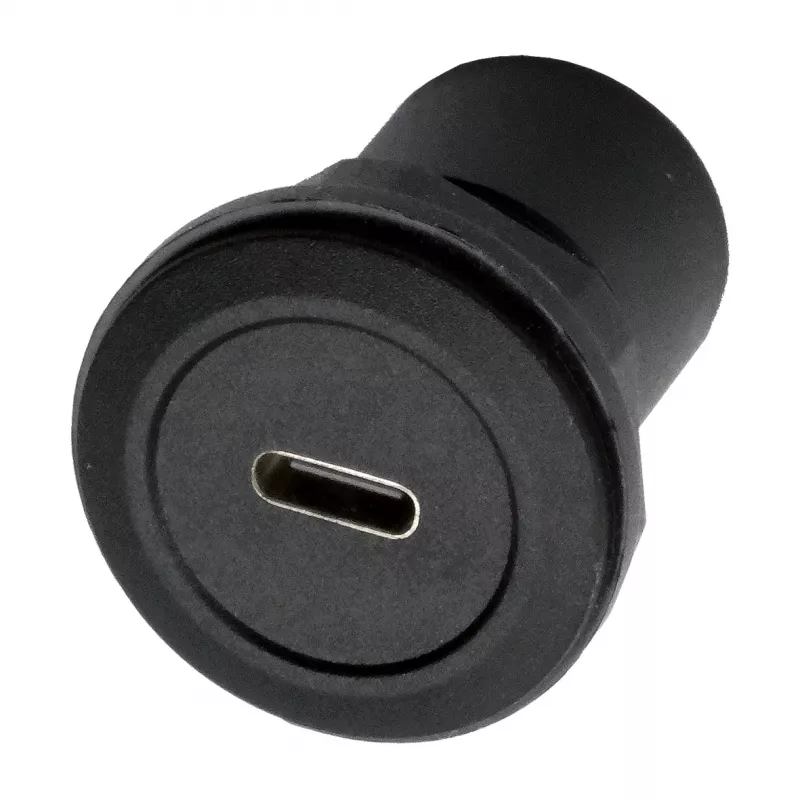

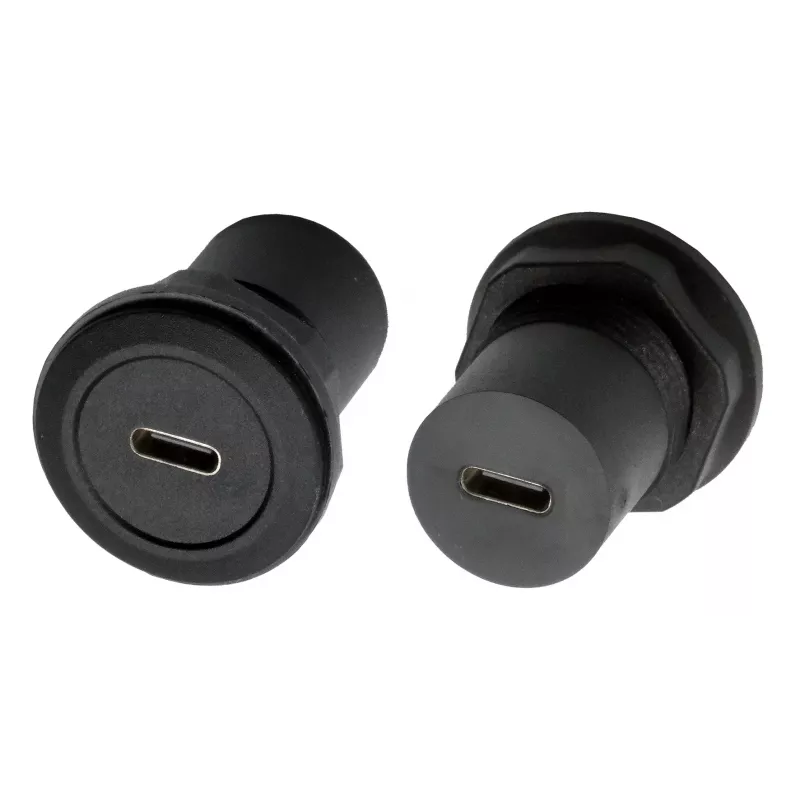

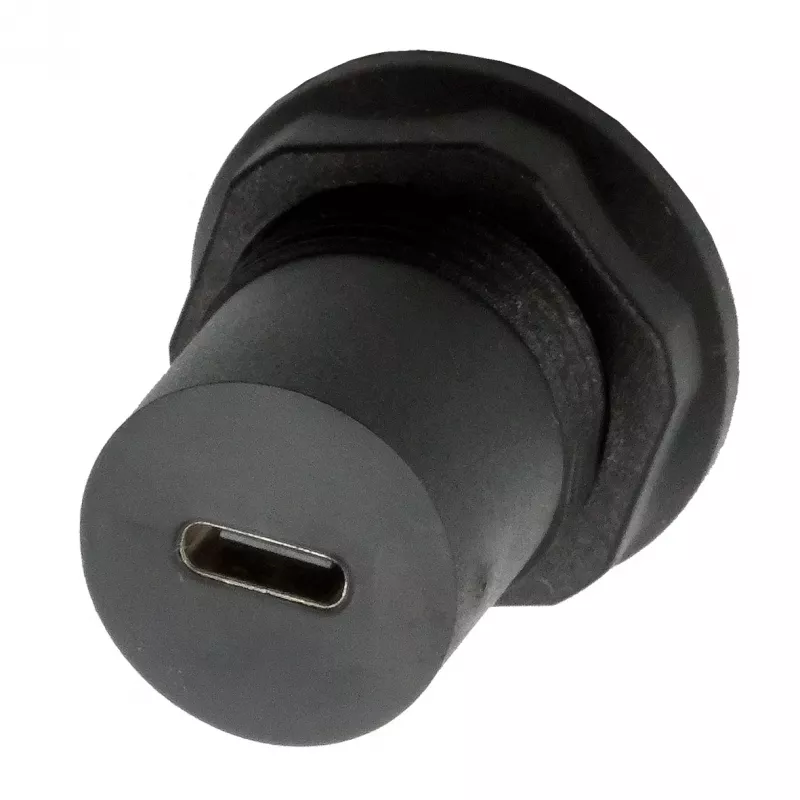

EXSYS EX-49214 USB-C female naar USB-C female inbouwadapter, USB 3.2 Gen 1

The EXSYS EX-49214 is a panel-mount adapter with a USB-C female connector on both the external and internal sides. It supports USB 3.2 Gen 1 with a data rate of 5 Gbit/s and is designed for installation in panels or enclosures with a standard cutout of 22.3 mm to a maximum of 24 mm. The integrated thread with a lock nut secures the adapter directly to the panel, making it suitable for applications such as a service interface for technicians or a communication port in conference tables or at workstations.

Key features

• USB-C female to USB-C female panel mount adapter
• USB 3.2 Gen 1, 5 Gbit/s
• For installation in cutouts of 22.3–24 mm
• Integrated thread with lock nut
• Can be used as a service interface for technicians or as a communication interface in conference tables or at workstations

Specifications

• Brand: Exsys
• MPN: EX-49214
• Category: Adapter
• Interface: USB 3.2 Gen 1
• External connection: USB-C female
• Internal connection: USB-C female
• Inputs: USB-C female
• Outputs: USB-C female
• Mounting cutout: 22.3–24 mm
