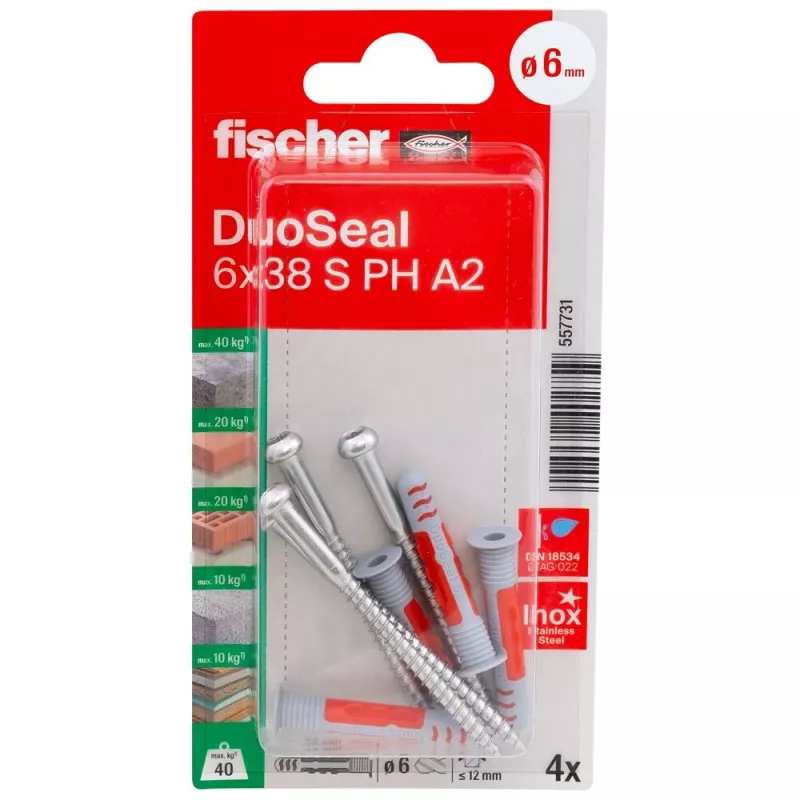

fischer DuoSeal 6 x 38 S PH TX A2 K NV plugset (4 stuks) 557731

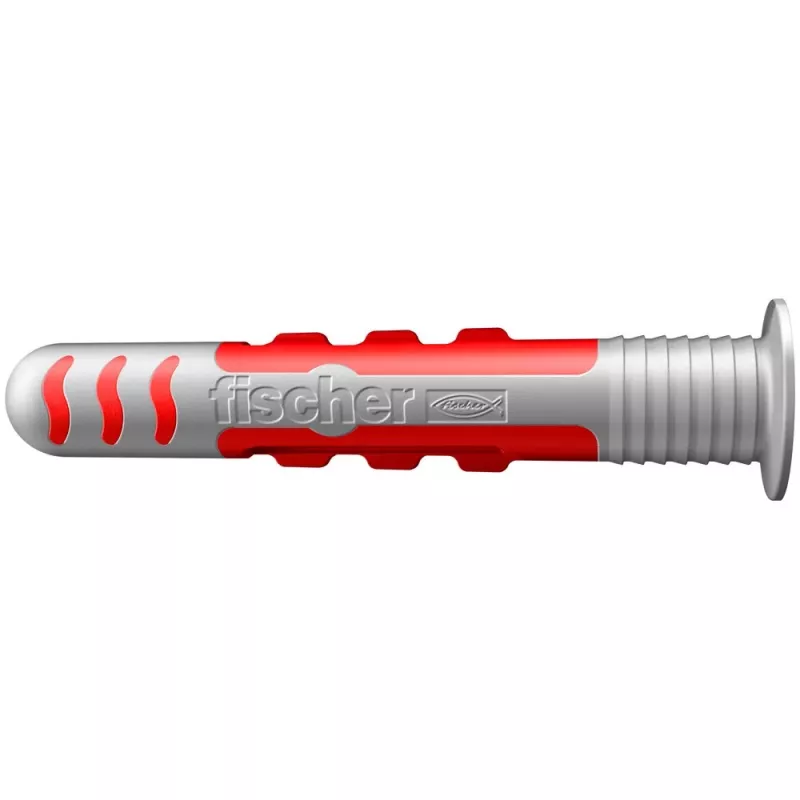

Sealing wall plug set for watertight fastening in wet rooms and outdoor areas. The DuoSeal 6 x 38 S PH TX A2 K NV mechanically seals the drill hole without additional silicone, preventing moisture penetration into the building structure. Tested for watertightness up to water exposure class W3-I according to DIN 18534 and ETAG 022.

Advantages

Mechanical sealing without silicone. High corrosion resistance thanks to included A2 stainless steel screws. Suitable for a wide range of building materials.

Suitable for

• Concrete
• Solid brick
• Perforated brick
• Aerated concrete
• Plasterboard
• Gypsum fibreboards

Key specifications

• Plug diameter: 6 mm
• Plug length: 38 mm
• Recommended screw diameter: 4.5 - 5.0 mm
• Recommended screw length: min. 45 mm
• Drill hole diameter: 6 mm
• Drill hole depth: min. 50 mm
• Plug material: high-quality nylon (polyamide)
• Screw material: stainless steel A2
• Screw head type: countersunk
• Screw drive: Phillips PH2 / Torx TX20
• Temperature resistance: -40°C to +80°C
• Set contents: 4 plugs and 4 screws

Recommendations

For the German market, it is recommended to use the DuoSeal only up to water exposure class W2-I.
