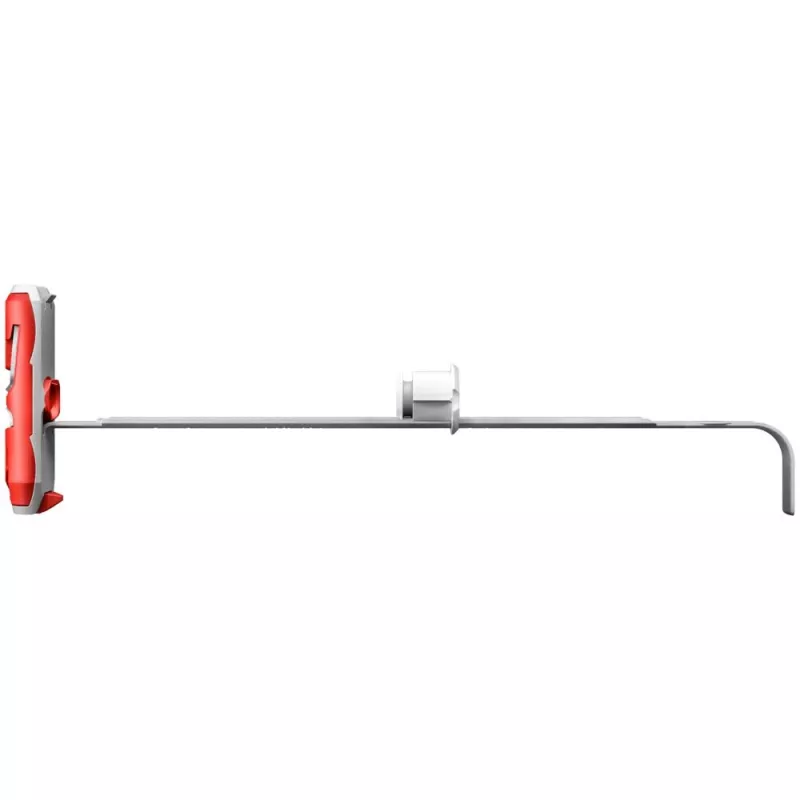

Fischer DuoTec 10 K NV hollewandplug 50 mm met schroef, 1 set 537262

Cavity anchor with toggle mechanism for secure fastening in hollow building materials. The flexible toggle element folds flat for insertion, then spreads behind the panel for a firm hold. Integrated scale and anti-rotation lock ensure accurate installation and prevent spinning.

Advantages

Short tilting arm allows use in narrow cavities. The anchor is suitable for pre-positioned and push-through installation. Made of nylon (polyamide PA6) for durability.

Suitable for

• Plasterboard
• Gypsum fibre boards
• Wood panels
• Steel panels
• Plastic panels

Key specifications

• Anchor type: Toggle anchor / cavity anchor
• Material: Nylon (Polyamide PA6)
• Drill hole diameter: 10 mm
• Anchor length: 50 mm
• Panel thickness: 9.5 mm – 55 mm
• Minimum cavity depth: 50 mm
• Minimum drill hole depth: 60 mm
• Included screw: Pan head, 5 mm diameter, 70 mm length
• Load capacity (plasterboard 12.5 mm): 20 kg shear, 8 kg tensile
• Load capacity (plasterboard 2x12.5 mm): 30 kg shear, 15 kg tensile
• Load capacity (gypsum fibre board 12.5 mm): 30 kg shear, 15 kg tensile
• Load capacity (wood panel 16 mm): 40 kg shear, 20 kg tensile

Recommendations

For mounting light fixtures, shelves, curtain rails, pictures, and TV consoles on hollow walls.
