Frameset voor keystone-modules Digitus AN-25179

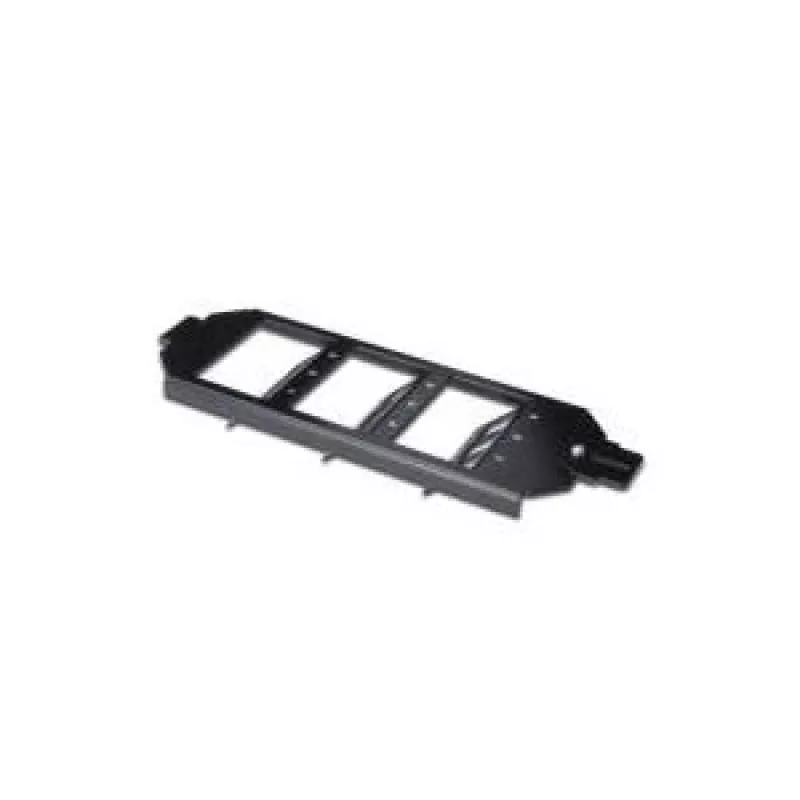

Frame set suitable for Ackermann GES 9, R7, R9. The DIGITUS® frame set for Keystone Modules is a metal adapter designed to hold standard keystone inserts. Available in versions for 6 or 9 keystone modules, the frame set provides a compact, durable mounting solution in black finish and is compatible with common Ackermann mounting systems.

Advantages

The metal construction offers stability and long-term durability while the black finish provides a neutral appearance that fits typical network installations. The frame set is supplied as a single piece per pack and is compatible with a range of standard keystone modules, facilitating flexible configuration of data and voice connections.

Suitable for

• Mounting keystone jacks (RJ45, RJ11, multimedia) in Ackermann wall or frame systems
• Small patch panels and outlet assemblies requiring 6 or 9 module capacity
• Office, server room or residential network installations

Key specifications

• Brand: DIGITUS
• Manufacturer part number (MPN): AN-25179
• EAN: 4016032302780
• Material: metal
• Color: black
• Module capacity: 6 or 9 keystone modules (2-level or 3-level versions)
• Pack quantity: 1 piece
• Package width: 75 mm
• Package depth: 220 mm
• Country of origin: China

How to use

Install the frame set into a compatible Ackermann mounting opening (GES 9, R7, R9) following the mounting system guidance. Snap or screw standard keystone modules into the frame slots according to the required configuration (6-module 2-level or 9-module 3-level). After inserting keystone jacks, secure wiring and perform standard connectivity checks to verify correct installation.

Recommendations

Use compatible DIGITUS or industry-standard keystone modules and ensure the selected Ackermann mounting variant matches the frame version. Avoid overtightening mounting screws and verify module orientation before final fixation.
