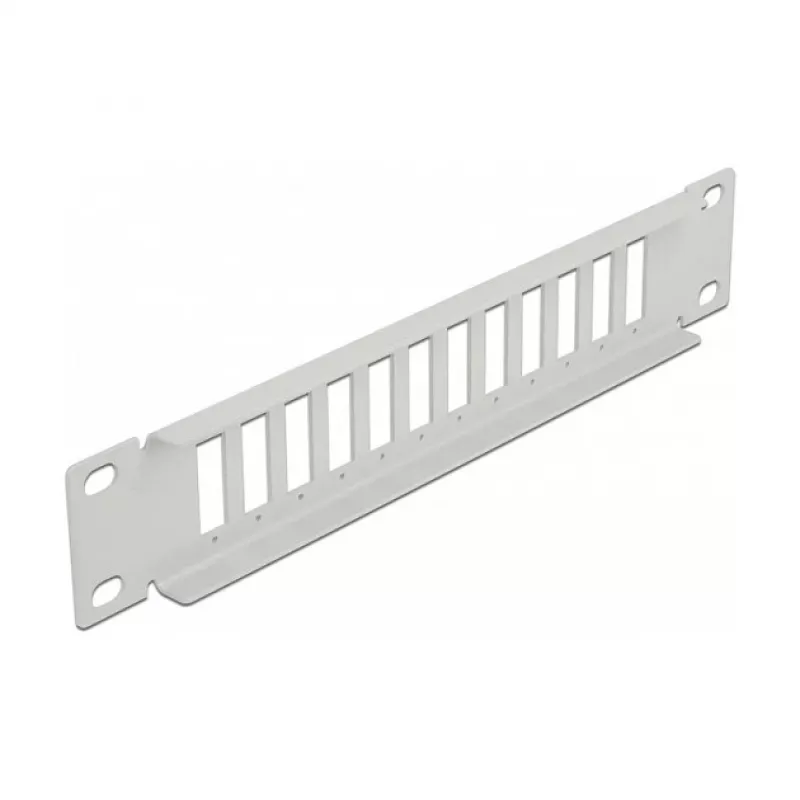

Glasvezel patchpaneel DeLOCK 10 inch 12 poorten SC duplex LC quad 1U grijs

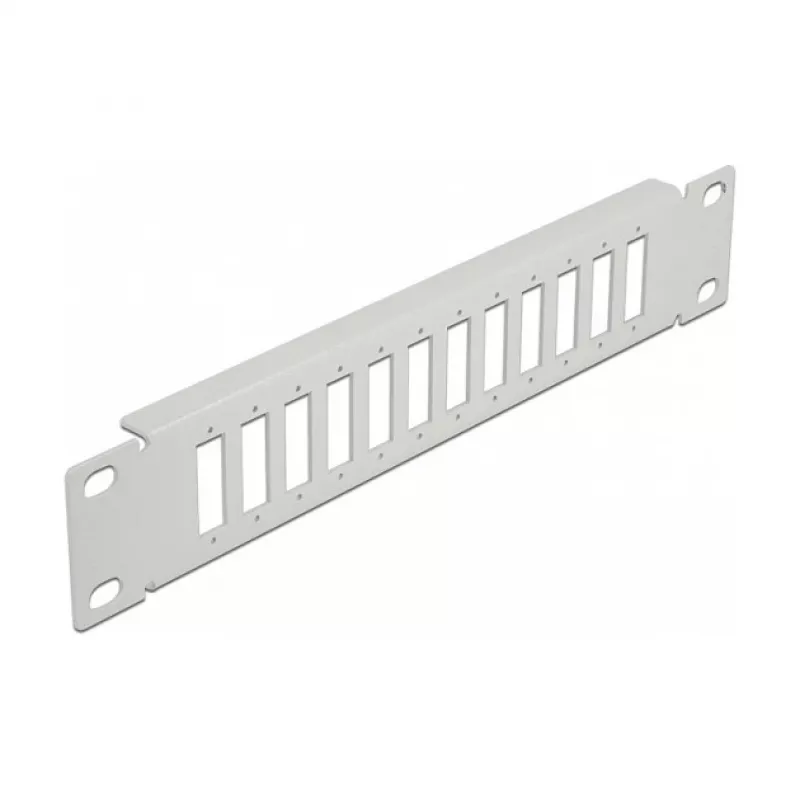

The DeLOCK 10" Fiber Optic Patch Panel provides 12 installation spaces suitable for SC Duplex or LC Quad adapters and is designed for mounting in a 10" rack occupying 1U of rack height. With a compact footprint (44 mm width, 254 mm depth, 10 mm height) and grey finish, it is intended for organized fiber optic cable management and easy access to connections.

Advantages

The patch panel supports mixed use of SC Duplex and LC Quad adapters in a single 1U unit, allowing flexible port configuration. Its shallow depth and compact dimensions make it suitable for racks with limited space. The grey metal housing provides a durable mounting solution for fiber terminations and helps maintain tidy cabling.

Suitable for

• Rack-mounted fiber distribution in data closets and server rooms
• Organizing SC Duplex and LC Quad connections in telecommunication racks
• Environments where compact 1U fiber management is required

Key specifications

• Brand: DELOCK
• Model / MPN: 66804
• EAN: 4043619668045
• Ports quantity: 12 (for SC Duplex or LC Quad adapters)
• Form factor: 10" rack, 1U height
• Colour: Grey
• Dimensions (W x D x H): 44 mm x 254 mm x 10 mm
• Packaging: Box

How to use

Mount the patch panel in a standard 10" rack using appropriate rack screws. Install SC Duplex or LC Quad adapters into the available installation spaces according to your cabling plan. Route and secure fiber patch cords to the adapters, labeling ports as needed to maintain an organized fiber infrastructure. Ensure connectors are clean before mating to prevent signal loss.

Recommendations

Use appropriate fiber cleaning tools before connecting cables, avoid excessive bending of fibers near the panel, and secure loose cables to reduce strain. Verify adapter type compatibility (SC Duplex or LC Quad) when assembling the panel to match your network transceivers and patch cords.
