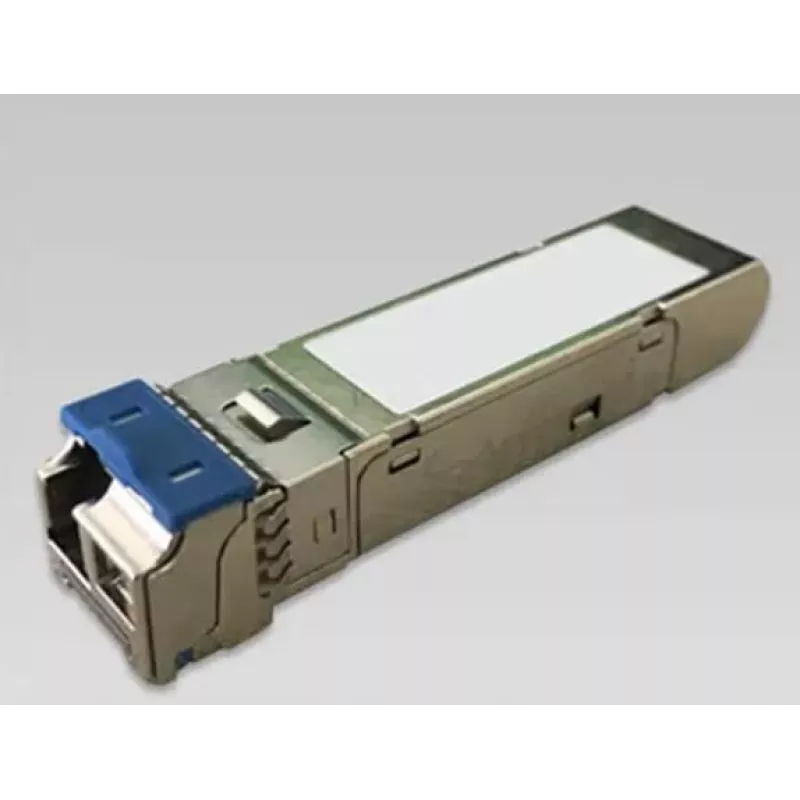

Glasvezel-transceivermodule PLANET MGB-TSA

The PLANET MGB-TSA is a mini-GBIC (SFP) fiber optic transceiver module supporting a data rate of 1000 Mbps. Designed for industrial and commercial networks, it provides a compact, hot-pluggable solution for single-mode fiber links and is compatible with SFP MSA ports. The module supports extended operating temperatures for reliable performance in harsh environments.

Advantages

The MGB-TSA offers reliable Gigabit Ethernet connectivity over single-mode fiber with hot-pluggable convenience for easy installation and replacement without powering down host equipment. Its mini-GBIC form factor ensures broad compatibility with SFP-enabled switches, media converters and other network devices. Built for extended temperature operation, it is suitable for deployments where temperature resilience and stable fiber transmission are required.

Suitable for

• Industrial Ethernet links requiring extended temperature range
• Upgrading SFP-enabled switches and media converters to Gigabit fiber
• Long-distance single-mode fiber connections in commercial networks

Key specifications

• Model: PLANET MGB-TSA (MPN: MGB-TSA)
• Data rate: 1000 Mbps (Gigabit Ethernet)
• Form factor: SFP / mini-GBIC, hot-pluggable
• Fiber type: single-mode
• Operating temperature: extended range (−40 to 75°C)
• Color/appearance: blue metallic housing
• Compatibility: SFP MSA compliant devices, PLANET industrial switches and media converters
• EAN: 4711605284370

How to use

Insert the MGB-TSA into an SFP slot on a compatible switch, media converter or network device while the host is powered on. Ensure the module is fully seated and the latch engages. Connect single-mode fiber cables to the transceiver's duplex optical ports, observing correct transmit/receive orientation. Verify link/activity LEDs on the host device to confirm successful connection and data transmission.

Recommendations

For reliable operation, use single-mode fiber of appropriate specification and maintain proper end-face cleanliness. Install the module in SFP MSA-compliant ports and avoid mechanical stress on fiber connectors. For installations in harsh environments, confirm that connected equipment also supports the extended temperature range.
