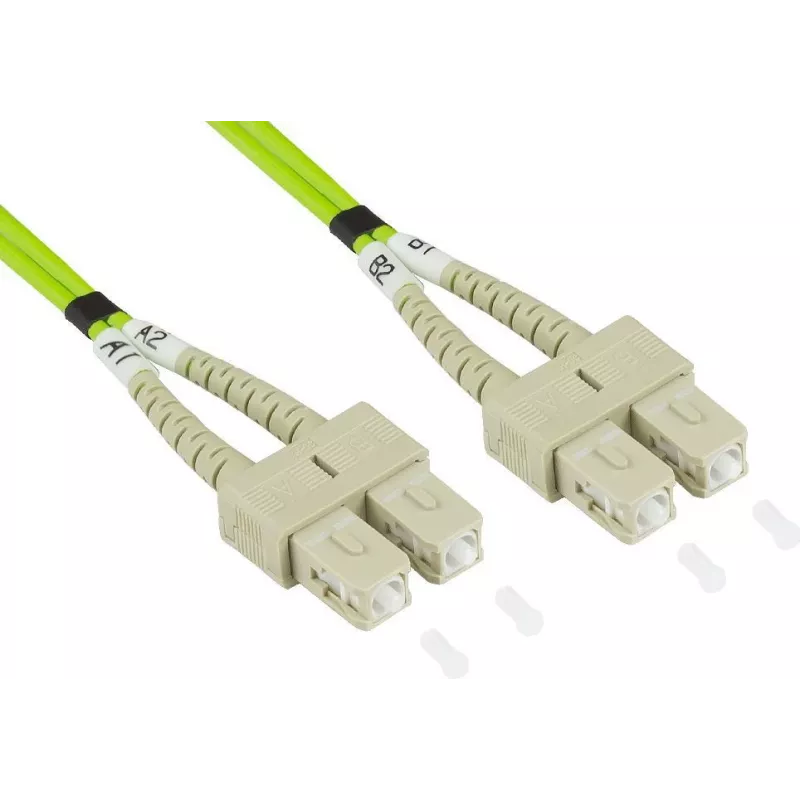

GoodConnections Alcasa LW-8075SC5 glasvezel-patchkabel 7,5 m LSZH OM5 SC duplex groen

The GoodConnections Alcasa LW-8075SC5 is a high-performance fiber optic patch cable designed for demanding data center and enterprise network environments. This 7.5-meter duplex OM5 multimode cable features SC to SC connectors with UPC polish, ensuring low insertion loss and high return loss for reliable high-speed data transmission. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in confined spaces, while the green color aids in easy identification.

Advantages

OM5 wideband multimode fiber supports multiple wavelengths (850 nm and 953 nm) for SWDM4 applications, enabling 40G/100G Ethernet over a single fiber pair. The duplex design allows for simultaneous bidirectional communication. With a modal bandwidth of 2800 MHz·km at 850 nm and 4700 MHz·km at 953 nm, this cable is future-proof for next-generation network speeds.

Suitable for

• Data centers requiring high-density cabling
• 40G/100G Ethernet networks using SWDM4 technology
• Enterprise LAN backbones and server interconnects
• Telecommunications and broadcast applications

Key specifications

• Fiber Type: OM5 Multimode (50/125 µm)
• Connectors: SC Duplex to SC Duplex, UPC polish
• Length: 7.5 m
• Jacket: LSZH, Green
• Insertion Loss: ≤ 0.3 dB
• Return Loss: ≥ 30 dB
• Operating Temperature: -20°C to 70°C
• Standards: TIA-492AAAE, IEC 60793-2-10, RoHS, CE

Recommendations

For optimal performance, pair this cable with OM5-compatible transceivers and ensure proper handling to maintain low insertion loss. Ideal for high-speed data center interconnects where reliability and safety are paramount.
