Good Connections HDMI-installatiekabel, HDMI type A bus naar panel-mount bus, 0,3 m, zwart HDMI-AD23

Supporting 4K Ultra HD at 10.2 Gbps, this 0.3 m installation cable is built for clean panel-mount HDMI integration. The Good Connections HDMI-AD23 connects an internal HDMI Type A female port to a screw-in panel mount female socket, making it a reliable link for custom AV setups, rack builds, and device integration.

Overview

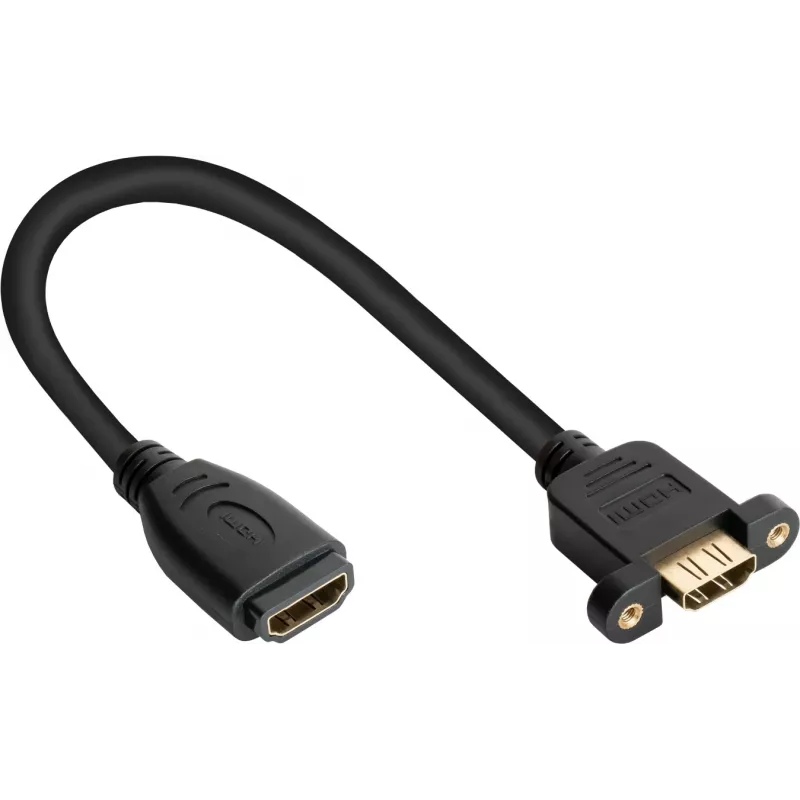

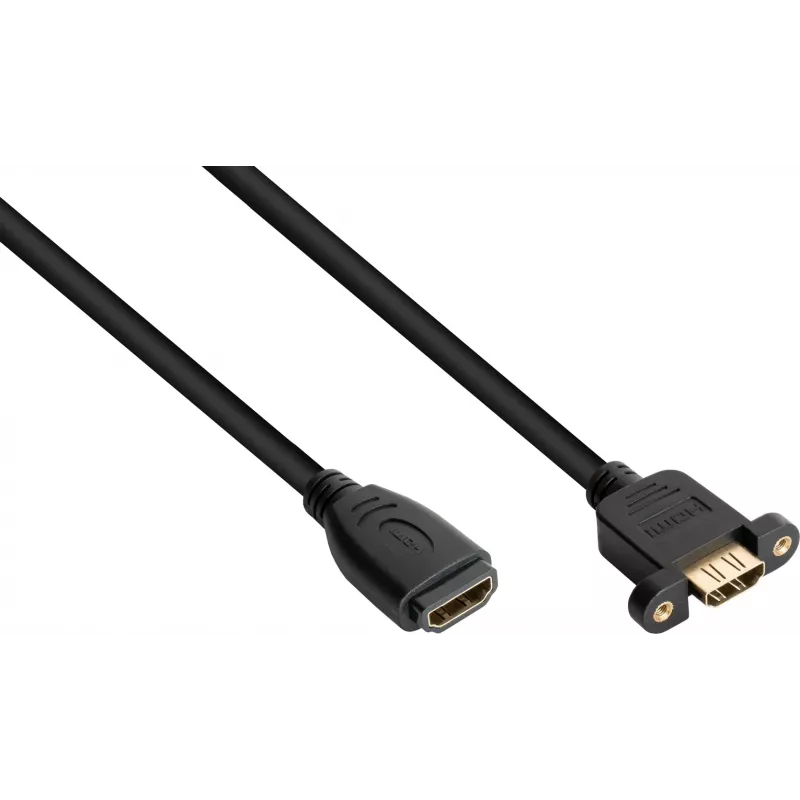

The Good Connections HDMI-AD23 is a short, high-performance HDMI installation cable designed for panel mounting. It features a standard HDMI Type A female connector on one end and a panel mount HDMI Type A female connector on the other, allowing you to create a neat, accessible HDMI port on any enclosure, wall plate, or custom device. The 0.3 m length is ideal for internal routing without excess slack.

What stands out

• Supports 4K Ultra HD resolution (3840x2160p) at 10.2 Gbps for crystal-clear video.
• High-Speed HDMI with Ethernet, including Audio Return Channel (ARC) and HDMI Ethernet Channel (HEC).

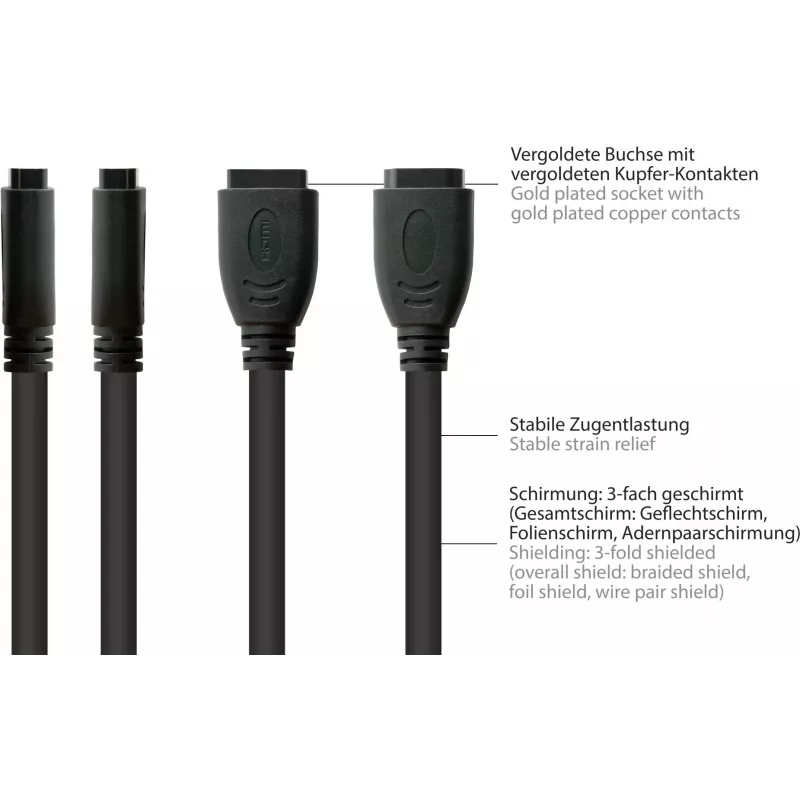

• Gold-plated connectors and triple shielding (foil + braid) ensure reliable signal integrity.

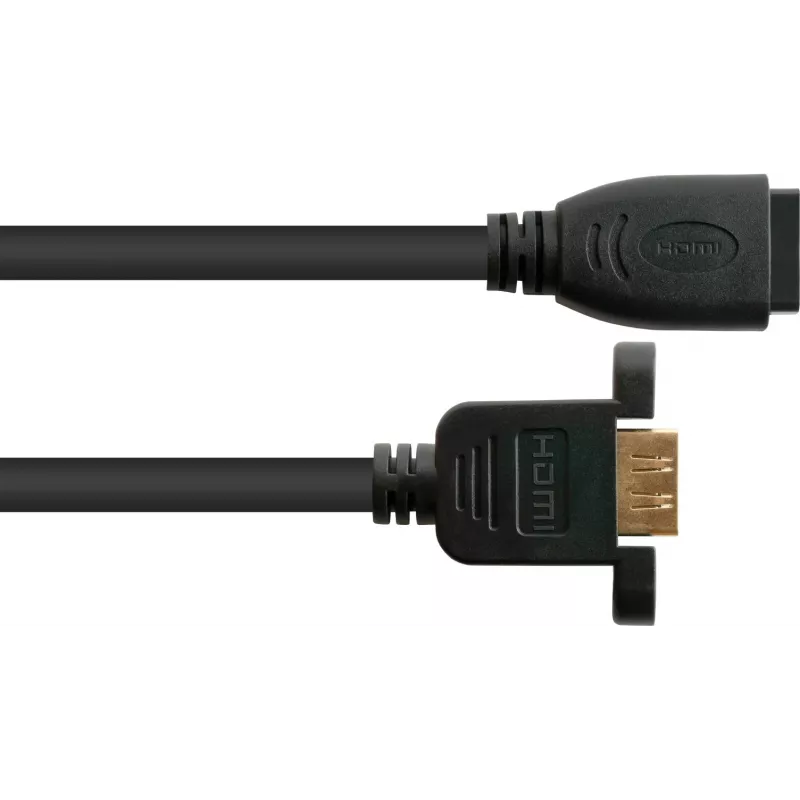

• Panel mount connector with screw-in mechanism for secure installation.
• Supports multi-channel audio formats like Dolby TrueHD and DTS-HD Master Audio.
• HDCP compliant, 3D ready, and built with copper conductors and a durable PVC jacket.

Technical details

• Cable type: HDMI installation cable
• Connector 1: HDMI Type A female
• Connector 2: HDMI Type A panel mount female
• Cable length: 0.3 m
• HDMI standard: High-Speed HDMI with Ethernet
• Max resolution: 4K Ultra HD (3840x2160p)
• Max data transfer rate: 10.2 Gbps
• Audio support: Multi-channel (Dolby TrueHD, DTS-HD Master Audio)
• HDCP support: Yes
• HDMI features: ARC, HEC, 3D support
• Connector plating: Gold
• Cable jacket material: PVC
• Shielding: Triple shielded (foil + braid)
• Colour: Black
• Mounting mechanism: Screw-in
• Conductor material: Copper

Our verdict

A compact and robust solution for adding a professional HDMI port to any panel or enclosure. The Good Connections HDMI-AD23 delivers full 4K performance in a short, easy-to-install form factor.
