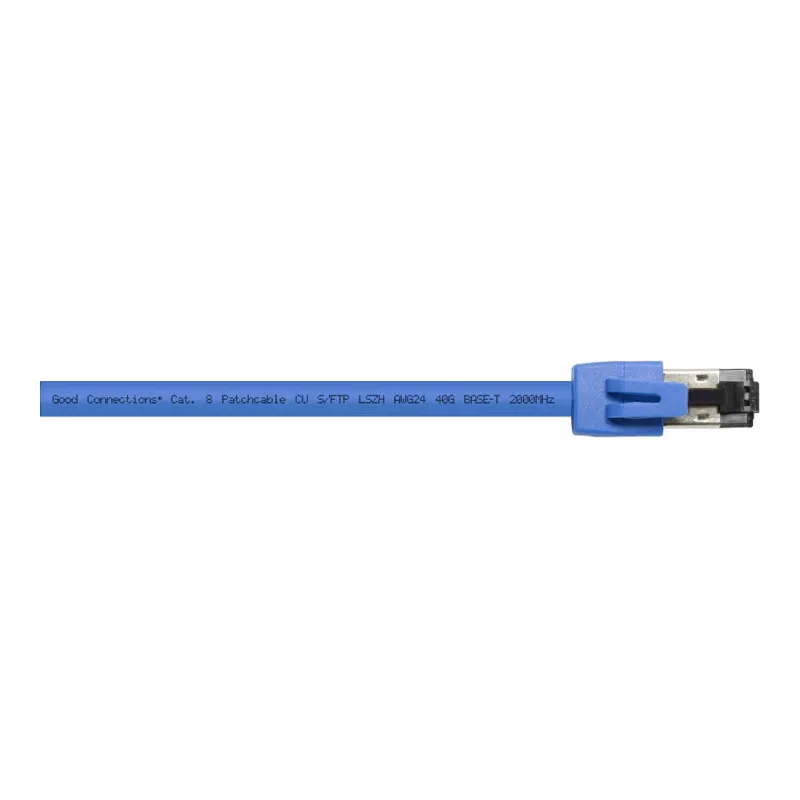

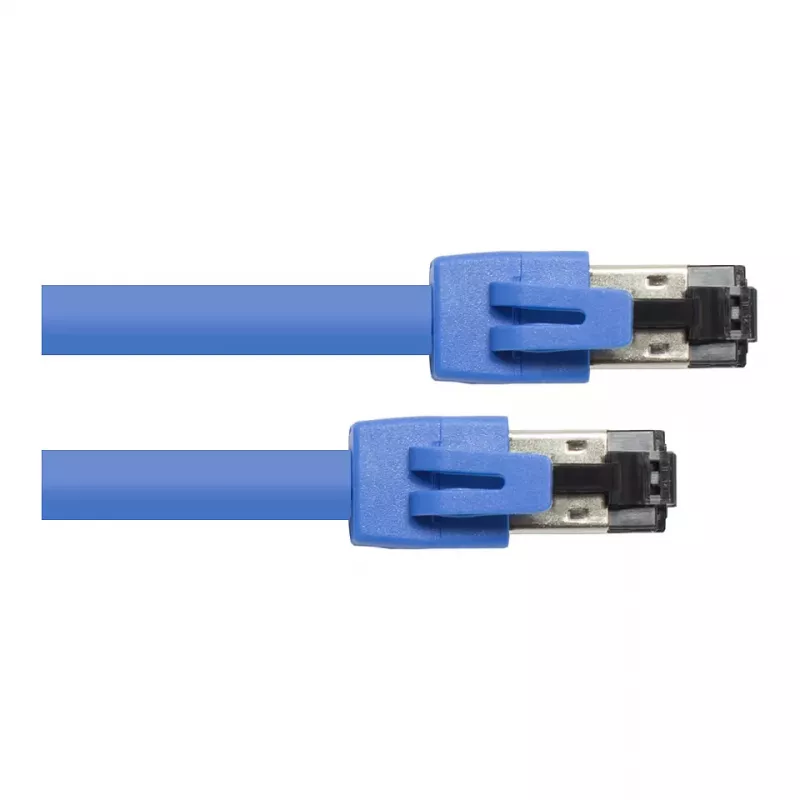

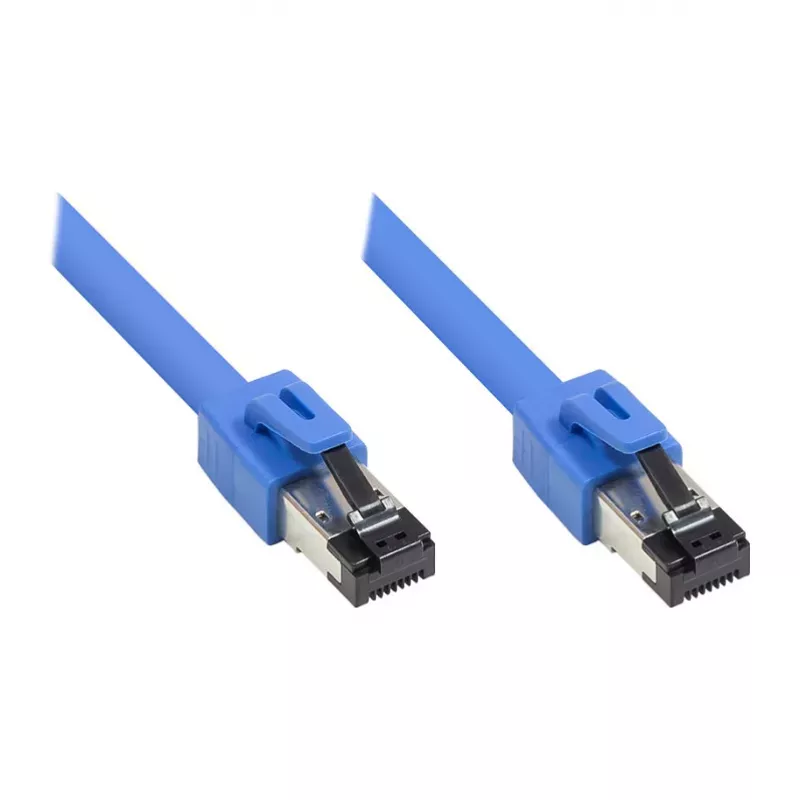

GoodConnections RNS® patchkabel Cat. 8.1, S/FTP, PiMF, halogeenvrij (LSZH), 2000MHz, 40Gbit/s, blauw, 2m

The GoodConnections RNS® Patch Cable Cat. 8.1 is a high-performance network cable designed for demanding data center and enterprise applications. With S/FTP shielding and PiMF construction, it delivers exceptional signal integrity and protection against electromagnetic interference. This 2-meter blue cable supports bandwidth up to 2000 MHz and data rates up to 40 Gbit/s, making it ideal for 40GBASE-T networks. The halogen-free LSZH jacket ensures safety in enclosed spaces, while gold-plated RJ45 connectors provide reliable, corrosion-resistant connections.

Advantages

• Supports ultra-fast 40 Gbit/s data transfer over copper
• S/FTP shielding with PiMF (Pairs in Metal Foil) minimizes crosstalk and external noise
• Halogen-free LSZH jacket reduces toxic smoke in case of fire
• Gold-plated contacts (50µm) for long-lasting performance
• Backward compatible with Cat.6a, Cat.6, Cat.5e, and Cat.5 networks
• Suitable for Power over Ethernet (PoE, PoE+, 4PPoE up to 100W)

Suitable for

• Data centers requiring high-speed 40G connections
• Enterprise LAN backbone and server rooms
• Home networks for future-proofing
• Applications demanding low latency and high bandwidth

Key specifications

• Cable Type: Patch Cable
• Ethernet Category: Cat. 8.1
• Shielding: S/FTP (Screened/Foiled Twisted Pair)
• Pair Shielding: PiMF (Pairs in Metal Foil)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Max Bandwidth: 2000 MHz
• Max Data Transfer Rate: 40 Gbit/s
• Length: 2 m
• Colour: Blue
• Connector: RJ45 (8P8C) with gold-plated contacts (50µm)
• Conductor: Stranded copper, AWG 24/7
• PoE Support: Yes (PoE, PoE+, 4PPoE up to 100W)
• Halogen-free: Yes
• Flame Retardant: Yes
• Standards: ISO/IEC 11801, TIA/EIA-568-B.2-10

Recommendations

For optimal performance, use with Cat.8.1 compatible network equipment. Ensure proper cable management to maintain signal integrity.
